Piston, backup piston, brake discs and stators must be clean and free of grease and oil.
Set winch with gear housing end down on work surface.

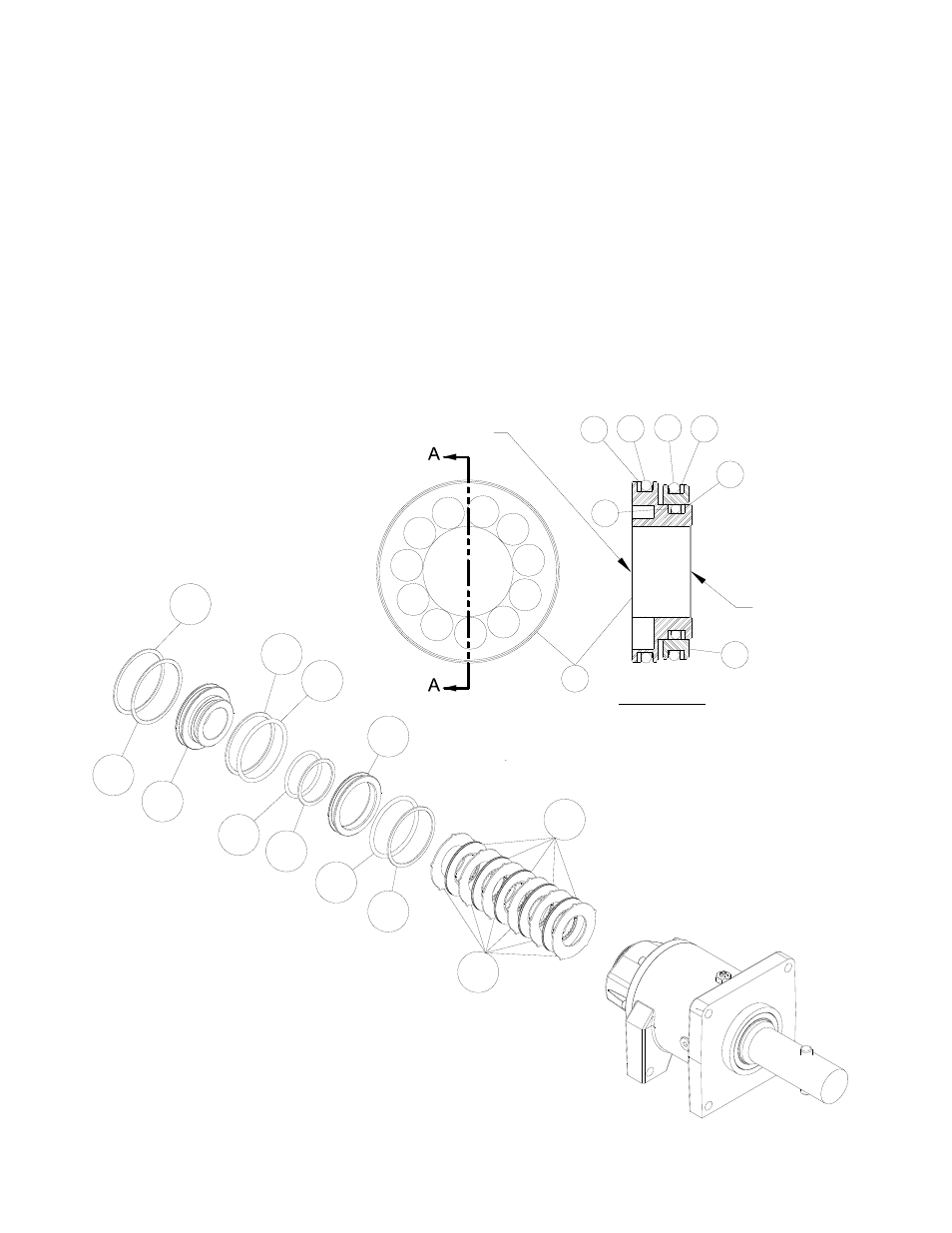

Install well-oiled o-rings and backup rings into grooves on outside of brake piston and backup brake piston as shown
in cross-section A-A below.
Insert brake discs (item #6) and stators (item #8) into gear end alternating, with stators first and last.
Insert backup brake piston (item #7) into motor end and insert brake piston (item #3) into it. Apply even pressure
on piston when installing.
Install retaining rings (item #27 and 35) into grooves in motor end housing. NOTE: (Item #27) is thicker than
(item #35)
8
SECTION A-A
3
7
29
34
33 31 30 32
MOTOR SIDE
HOUSING SIDE
8
6
33
31
7
34
29
30
32
3
35
27
