OPERATION SAE-300 ® HE
HOW TO SET CONTROLS FOR STICK
WELDING

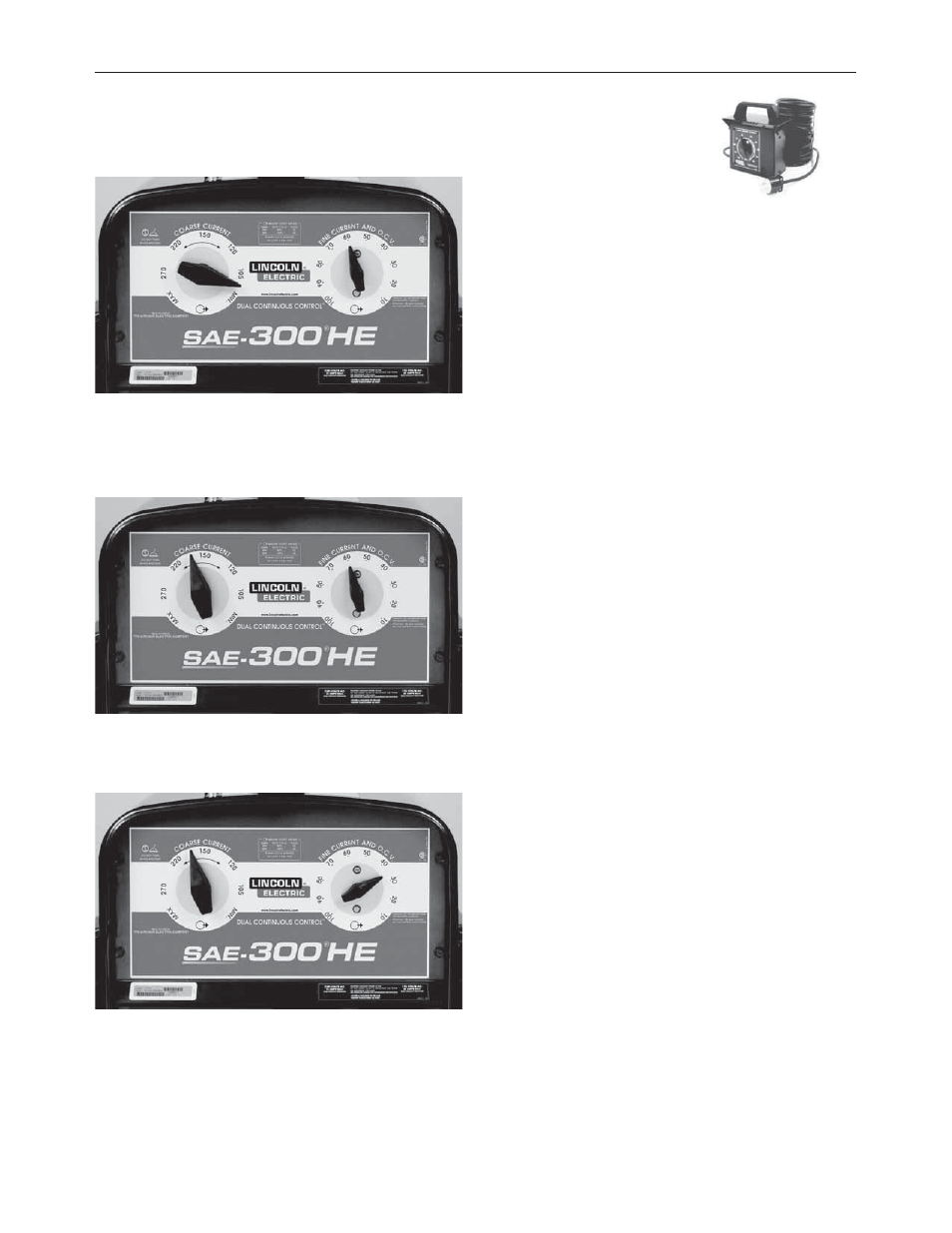

1. Set the Right Dial (Fine Current and OCV) to 60.
2. Set the Left Dial (Coarse Current) to the Desired Current.
Make a small increase in current when the weather warms
up.
3. Use Right Dial (Fine Current and OCV) to Make Changes to the
Arc Characteristics and Small Changes to the Output.
K942-4
Remote Control unit can also be used
as the Right Dial (Fine Control and
OCV).
STICK / TIG WELDING
Start by setting the right-side Fine Current and OCV control dial to 60,
then set the left-side Coarse Current control dial to the desired current
using the dial markings as an approximate guideline. Arc characteristics
and small changes in output can then be adjusted using the Fine
Current and OCV control dial. A K924-4 Remote Control unit can also be
used as the Fine Control and OCV control dial.
SELF-SHIELDED FLUX-CORED WELDING
(WITH A K3964-1 WIRE FEED MODULE INSTALLED)
Start by setting the Wire (CV) / Stick (CC) toggle switch to the Wire (CV)
position. Then set the left-side Coarse Current control dial to 270. Now
move the Voltage Adjustment dial to the desired voltage. Move the
Coarse Current control to the left for a softer arc and to the right for a
crisper arc.
