A-2 INSTALLATION
LTA 2.0-CW™
A-2

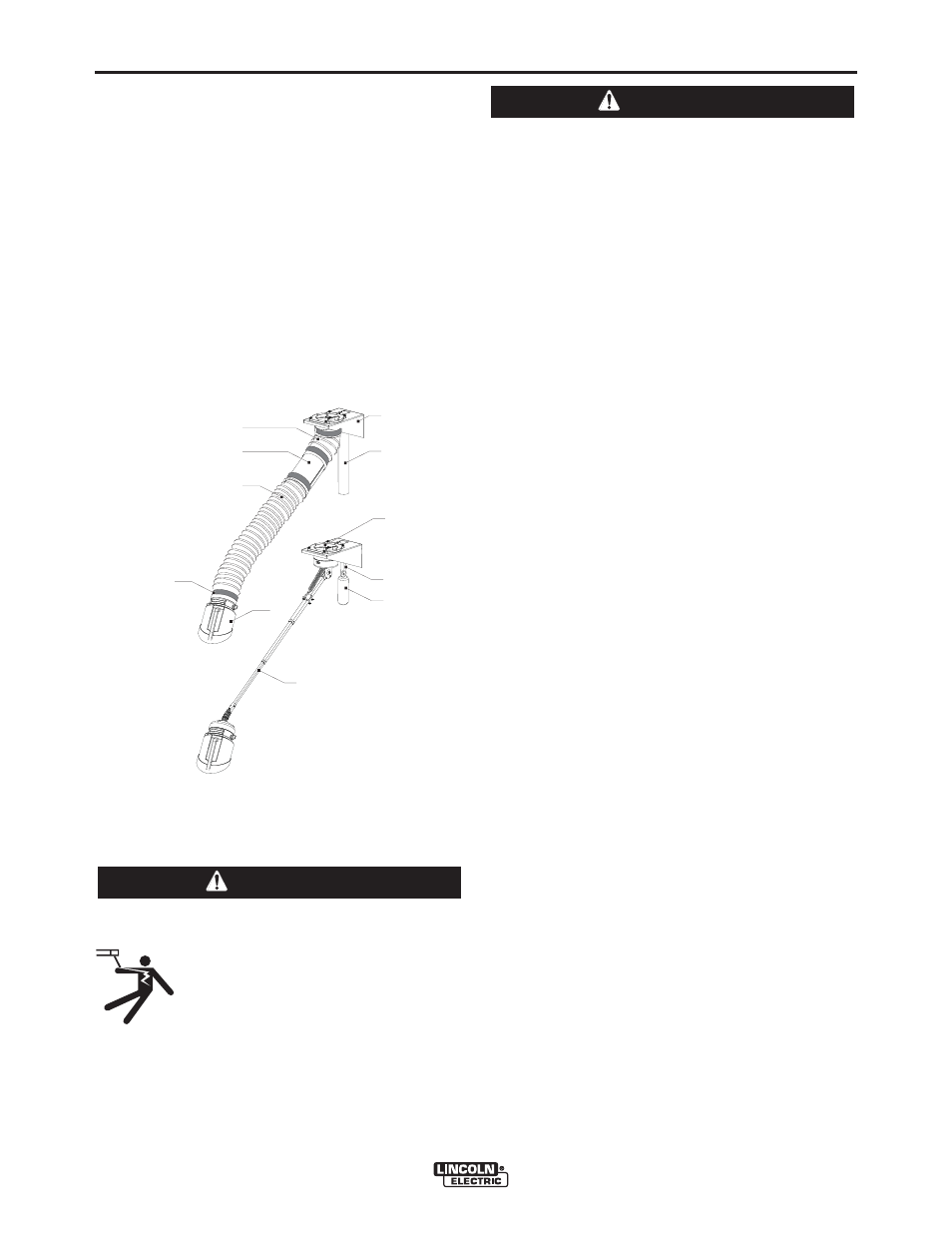

COMPONENTS
The product consists of the following main compo-
nents and elements:
A. Wall mounting bracket
B. Counterweight casing
C. Rotatable hood
D. Hose 65 in. (1650 mm)
E. Tube
F. Hose 20 in. (500 mm)
G. Rotating hinge
H. Rope
I. Counterweight
J. Rubber gaskets (4)
K. Extension arm
*Hardware (not shown)
A
B
H
F
E
D
C
I
G
K
J
READ ENTIRE INSTALLATION SECTION BEFORE
STARTING INSTALLATION.
SAFETY PRECAUTIONS
ELECTRIC SHOCK CAN KILL
• Only qualified personnel should perform
this installation.
• Turn the input power OFF and unplug
the machine from the receptacle before
working on this equipment.
• Insulate yourself from the work and ground.
• Always connect the machine to a power supply
grounded according to the National Electrical Code
and local codes.
WARNING
NEVER USE THIS PRODUCT FOR:
• Oil mist
• Paint mist
• Extraction of hot gases (more than 113
0 F/45 0 C con-
tinuously)
• Explosive environments or explosive
substances/gases
NOTE: This list is not all inclusive.
CAUTION
INSTALLATION
• The installation of this product is exclusively
reserved to well authorized, trained and qualified
engineers.
• During installation, always use Personal Protective
Equipment (PPE) to avoid injury. This also applies
for persons who enter the work area during installa-
tion.
• Use sufficient climbing gear and safety guards when
working on a higher level than 78.74 inches (2
meters) (local restrictions may apply).
• Never install the product in front of entrances and
exits which must be used for emergency services.
• Mind any gas and water pipes and electric cables.
• Make sure the wall, ceiling or support system are
strong enough to carry the product.
• Ensure the workspace is well illuminated.
• Use common sense. Stay alert and keep your atten-
tion to your work. Do not install the product when you
are under the influence of drugs, alcohol or medi-
cine.
• Make sure that the workshop, in the vicinity of the
product, contains sufficient approved fire extinguish-
ers.
• Air containing particles such as chromium, nickel,
beryllium, cadmium, lead etc., which is a health haz-
ard, should never be recycled. This air must always
be brought outside the working area.
USE
• Inspect the product and check it for damage. Verify
the functioning of the safety features.
• During use, always use Personal Protective
Equipment (PPE) to avoid injury. This also applies
for persons who enter the work area.
• Check the working environment. Do not allow unau-
thorized persons to enter the working environment.
• Protect the product against water and humidity.
• Make sure the room is always sufficiently ventilated;
this applies especially to confined spaces.
