A-5 INSTALLATION
LTA 2.0-CW™
A-5
ATTACHING THE HOSE AND EXTRAC-
TION HOOD
To mount the 65 in. (1650 mm) hose and the extrac-
tion hood, proceed as follows:
• Make sure the extraction arm is fully extended.
• Place a rubber gasket over the tube and fold back
2/3.
• Place the flexible hose 65 in. (1650 mm) over the
tube. To secure the hose, at least one metal ring of
the hose should be applied over ridges of the tube.
• Fold back the gasket and place it over the hose.

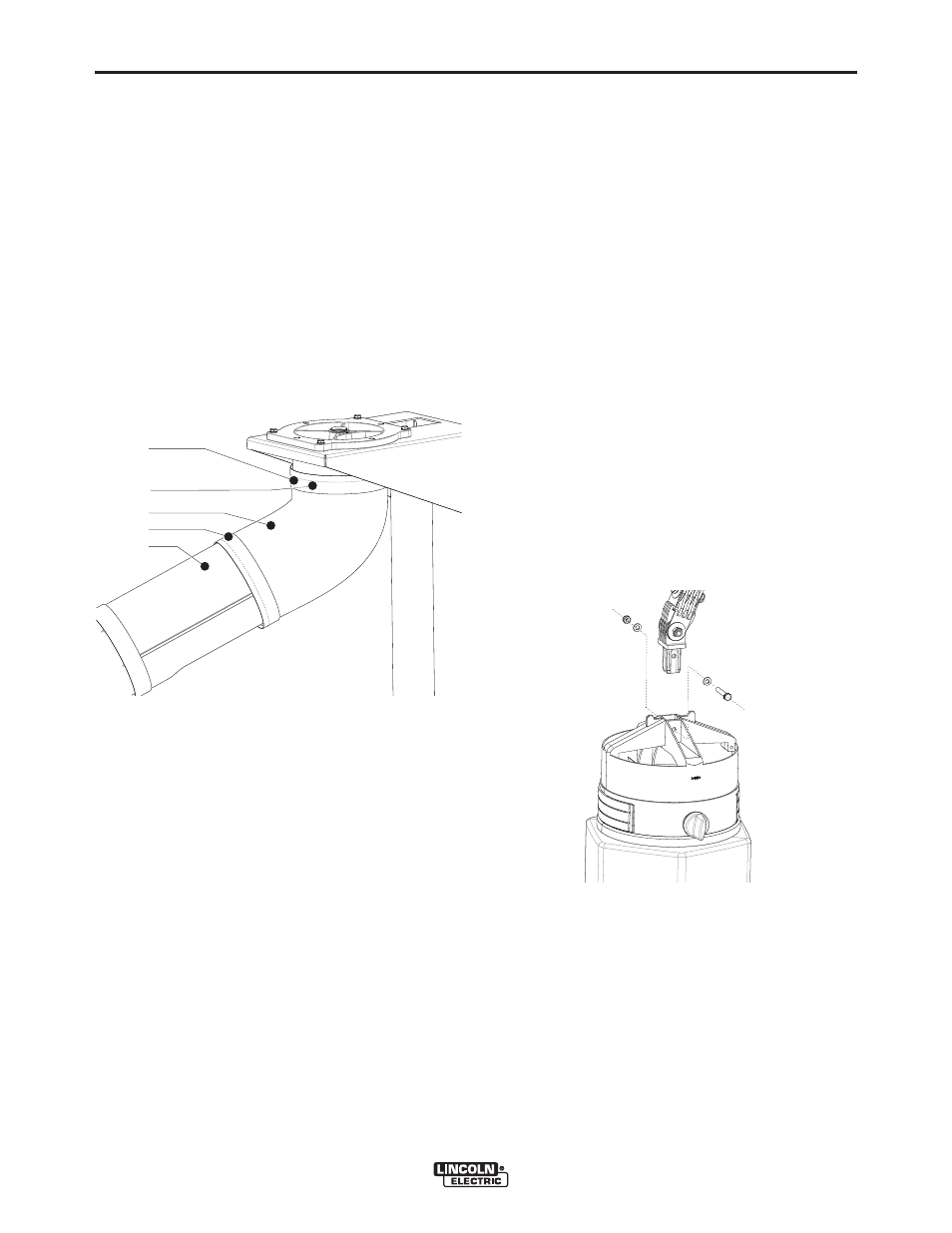

MOUNTING OF THE EXTRACTION HOOD
• Place a gasket over the extraction hood and fold
back 2/3.
• Mount the extraction hood to the extraction arm
using a bolt M6x40, a nut M6 and 2 washers M6.
Tighten using two 10mm wrenches.
• Place the flexible hose over the extraction hood. To
secure the hose, at least one metal ring of the hose
should be applied over the ridges of the hood.
• Fold back the rubber gasket and place it over the
hose.
ATTACHING THE HOSE TO THE ROTATING
HINGE
The rotating hinge and the tube are both provided
with a rubber gaskets. To attach the shorter flexible
hose proceed as follows:
• Remove the banding straps from the flexible hose.
• Fold back 2/3 of both rubber gaskets. (A+D).
• Place the flexible hose (C) over the collar (B) and
the tube (E). To secure the hose, at least one metal
ring of the hose should be applied over the ridges of
the collar. The same goes for the tube.
• Fold back the gaskets and place them over the
hose. Make sure the upper gasket overlaps the alu-
minum rotating hinge approximately 0.4 in. (10 mm).
A
B
C
D
E
