A-1 INSTALLATION
LTA 2.0-CW™
A-1

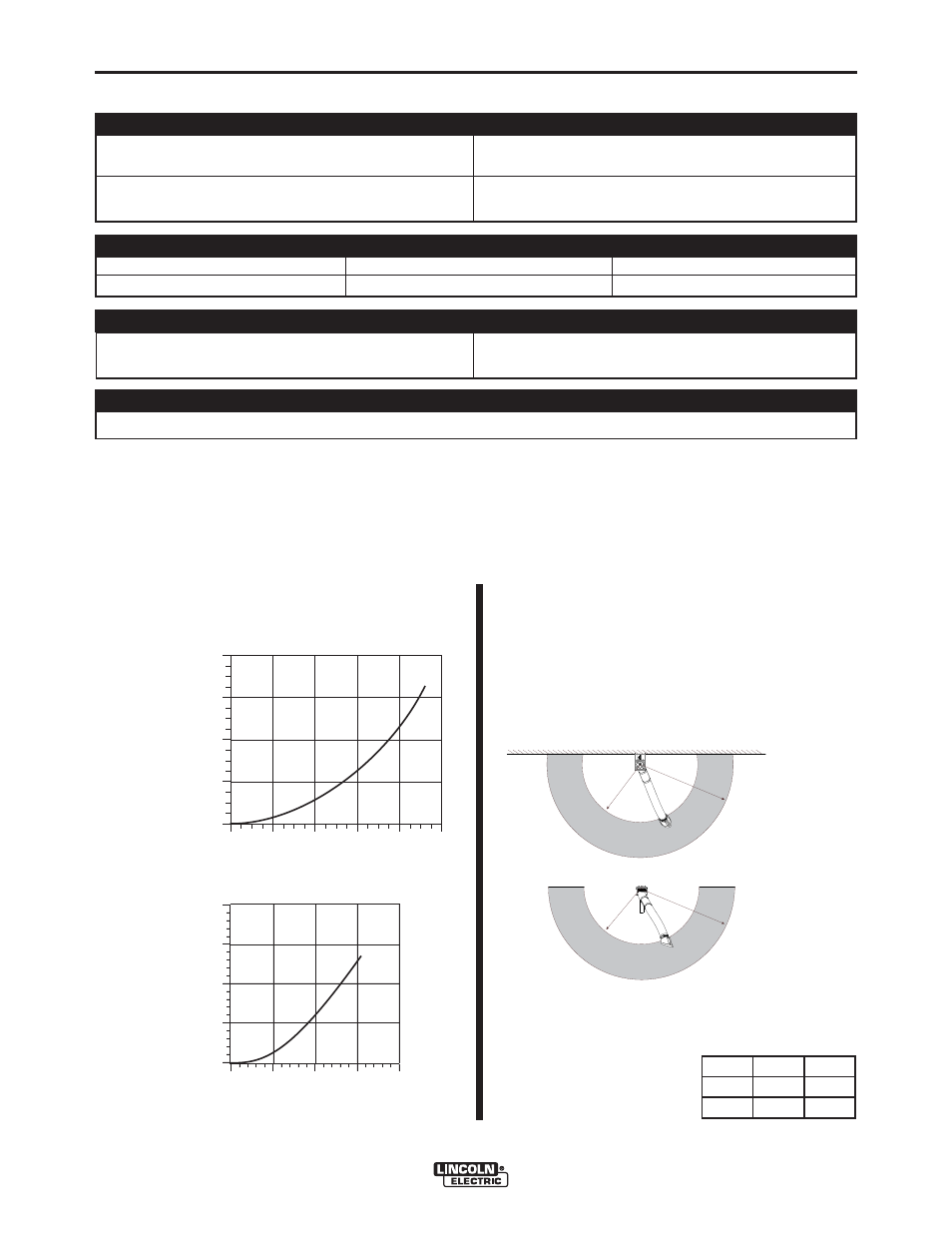

TECHNICAL SPECIFICATIONS
MODEL DESCRIPTION
K1655-7 LTA 2.0-CW™ AIR HANDLING
INPUT
COUNTERWEIGHT DIAMETER WEIGHT
14.3 lbs. (6.5 kg) 8 in. (203mm) 59.5 lbs (27kg)
PHYSICAL DIMENSIONS
41 0 F (5 0 C) to 113 0 F (45 0 C) MAX. 80%
TEMPERATURE RANGE RELATIVE HUMIDITY
Max: 942 CFM (1600 m 3 /h)
UNRESTRICTED AIR FLOW
8
6
4
2
0
0 250 500 750 1000
D (CFM)
C (in. WG)
0
400
800
1200
1600
A (Pa)
0 400 800 1200 1600
B (m 3 /h)
2000
STATIC PRESSURE
STATIC PRESSURE
AIRFLOW
AIRFLOW
A
A
B
B
TOP VIEW
FRONT VIEW
FIGURE A.1 - STATIC PRESSURE FIGURE A.2 - REACH
inch mm
A 61 1550
B 98 2500
