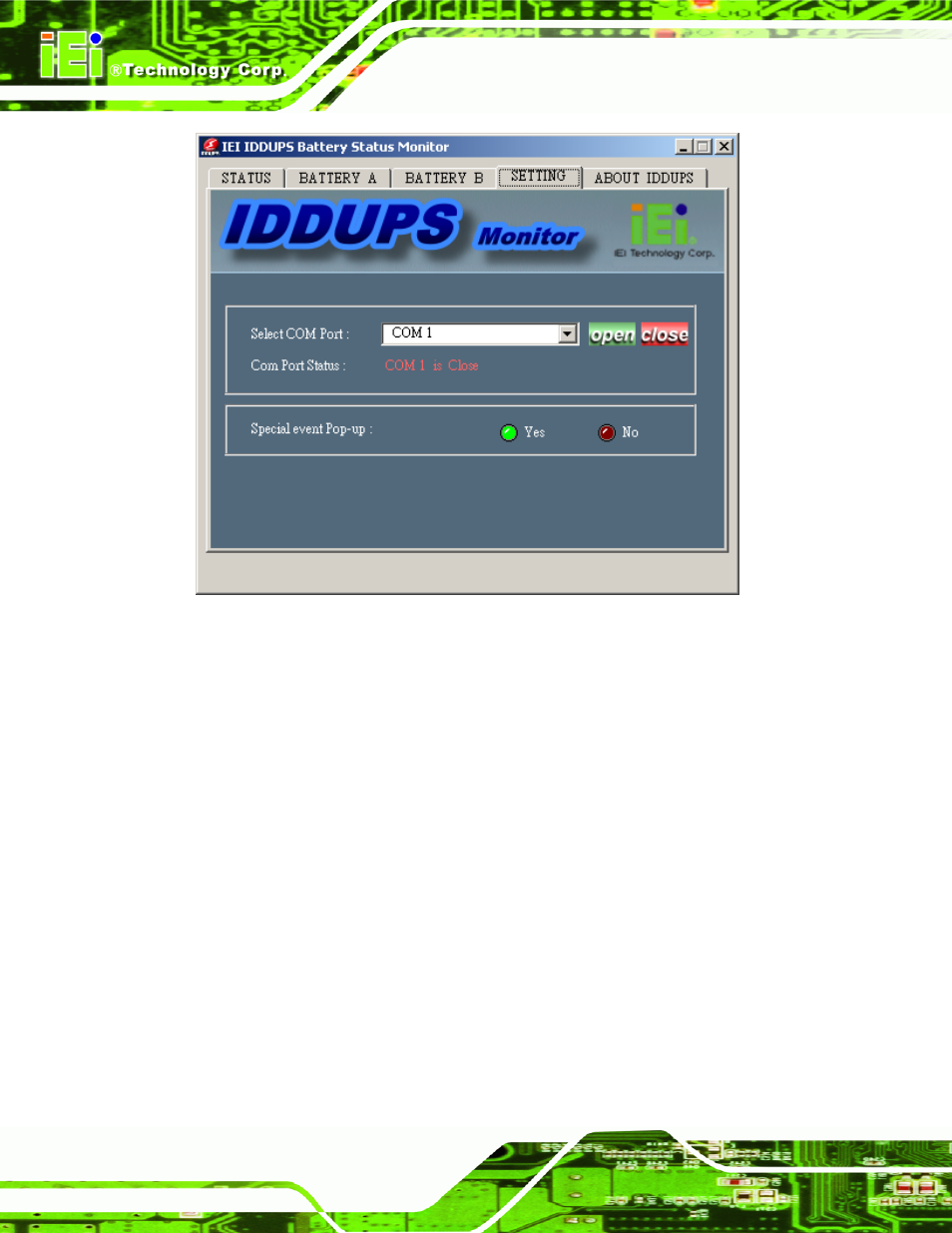

Figure 5-10: Application Setting

When the IDDUPS Battery Status Monitor application starts up, the user need to click the

SETTING tab to select the connected COM port of the SBC and activate the COM port by

clicking the open button. Please refer to Section

193H

5.2.1

for step-by-step description.

182H182H194H

Figure 5-11

shows the COM 2 is open by the user for connecting the PM-P006UPS to the

SBC.
