PM-P006UPS DC/DC Converter Module
Page 30

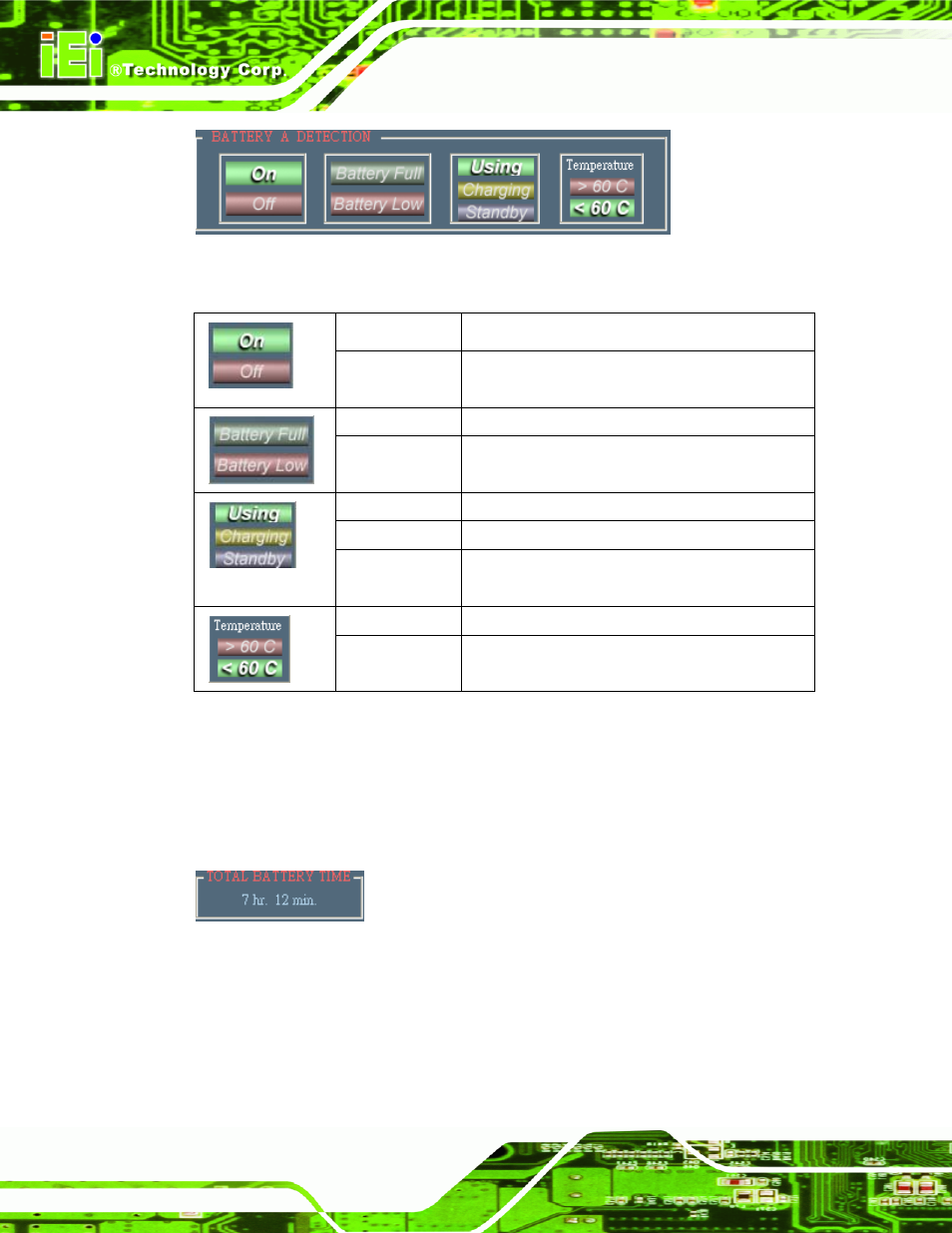

Figure 5-7: Battery Detection
On The battery is connected to the PM-P006UPS.
Off The battery is not connected to the
PM-P006UPS.
Battery Full The battery is fully charged.
Battery Low The battery is low.
Using The battery is being used.
Charging The battery is being charged.
Standby The battery is fully charged and ready to be used
anytime.
>60 C The battery temperature is above 60°C.
<60 C The battery temperature is below 60°C.
5.2.2.3 Battery Remaining Time
The battery remaining time is shown in the top right corner (
178H178H189H
Figure 5-8 ) of the status
screen to indicate the total battery remaining time. To view the individual battery time, click
on the BATTERY A or BATTERY B tab (Section
179H179H190H
5.2.3 ).
Figure 5-8: Battery Remaining Time
