PM-P006UPS DC/DC Converter Module

Page 21

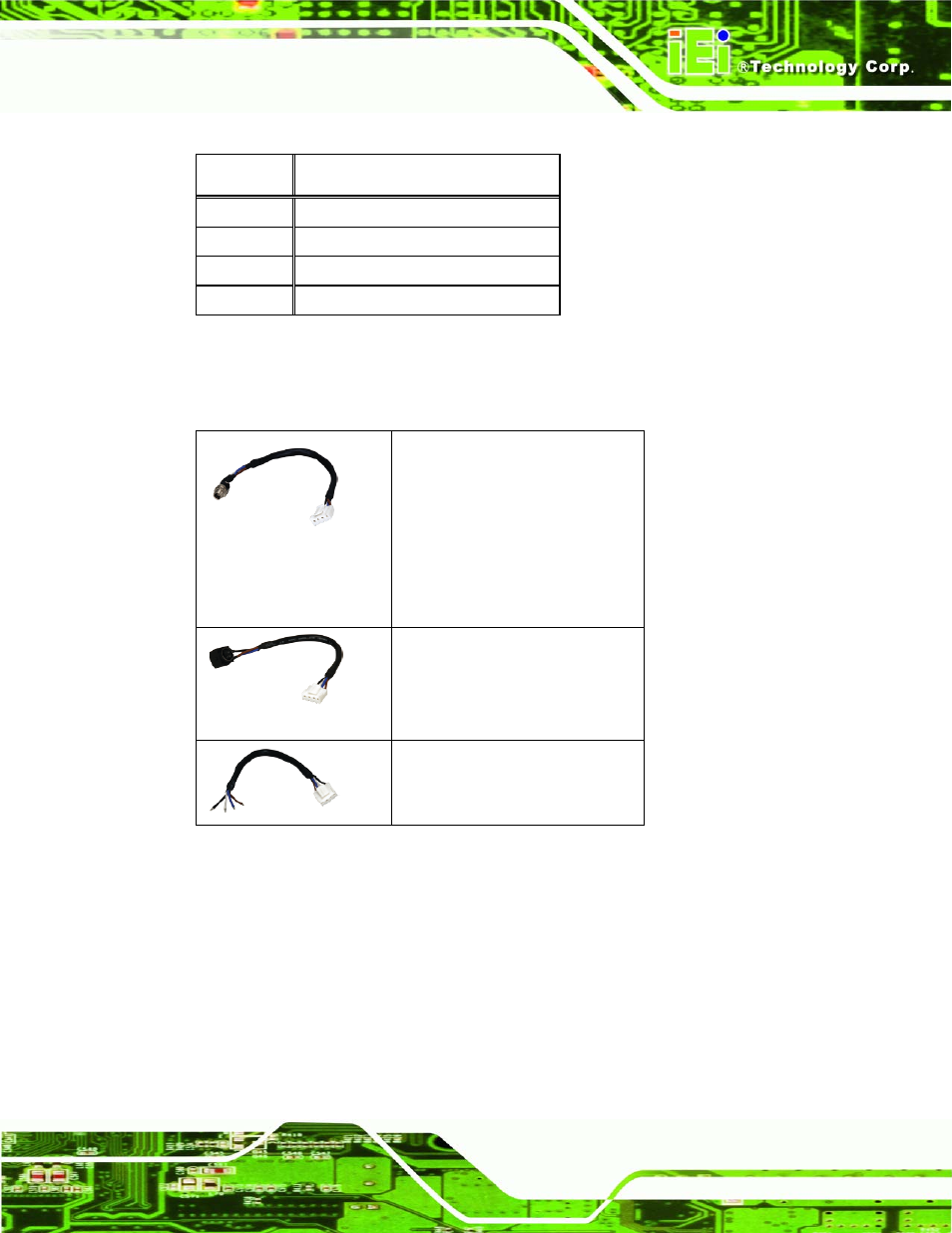

PIN NO.

DESCRIPTION

1 VIN

2 VIN

3 GROUND

4 GROUND

Table 4-5: Input Power Connector Pinouts

Use either one of the following cables to connect CN1 with power source:

Cable for following AC-DC

adapters

-FSP0601AD101C 60W

-UP0451E12P 45W

-UP0251E12PL 25W

(P/N: CB-P1LP4-RS)

Cable for 63000-FSP120AAB-RS

120W AC-DC adapter

(P/N: CB-MD4P4-RS)

Cable for Terminal Block

(P/N: CB-NOLP4-RS)

Table 4-6: CN1 Connector Cables

4.2.4 Output Power Connectors

CN Label:

CN7

CN Type:

12-pin connector (1x12)

CN Location:

See

169H169H177H

Figure 4-6

CN Pinouts:

See

170H170H178H

Table 4-7
