PM-P006UPS DC/DC Converter Module
Page 2
1.1 PM-P006UPS Overview

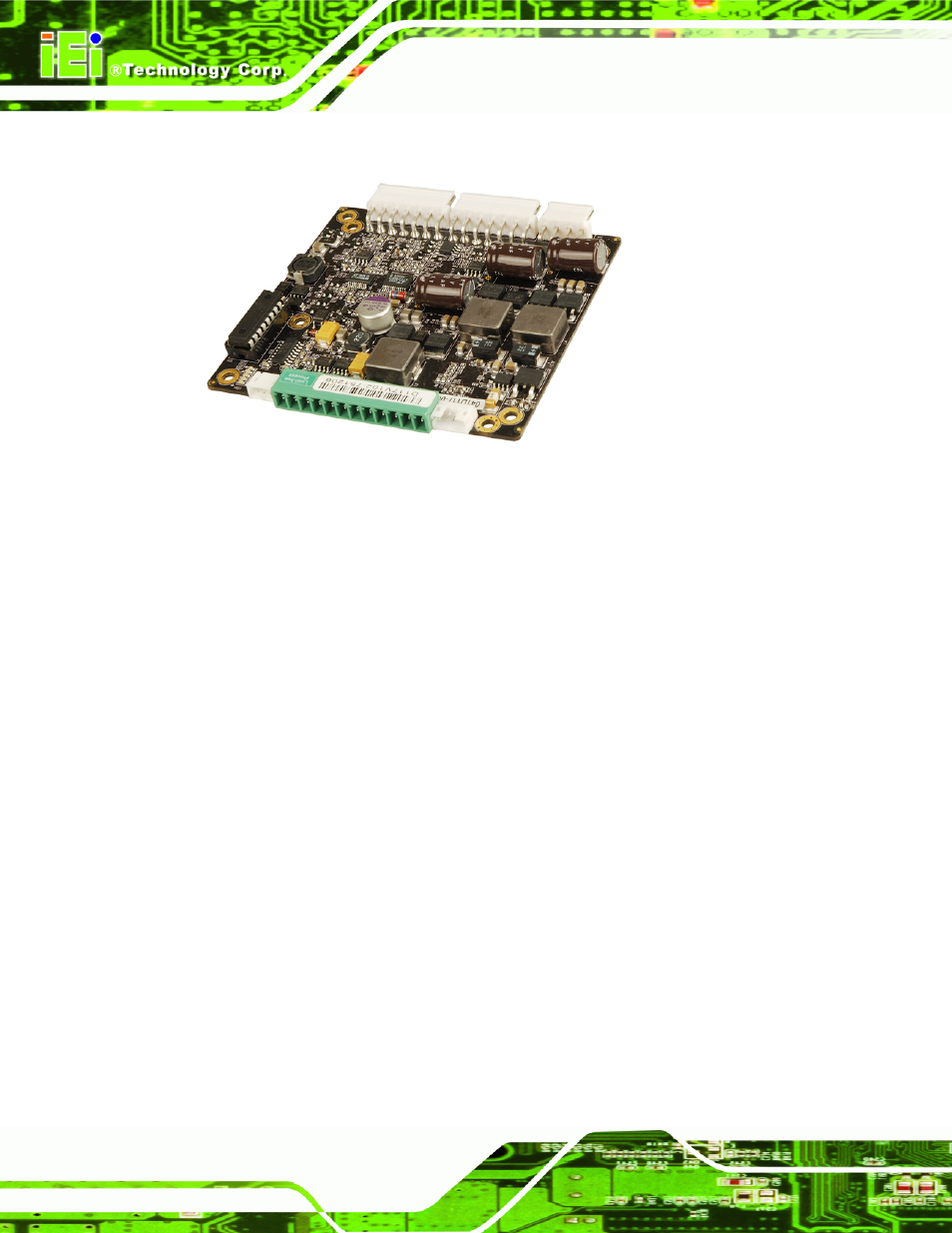

Figure 1-1: PM-P006UPS DC/DC Converter Module
The highly efficient, high-performance PM-P006UPS DC-to-DC converter module
provides 5V, 3.3V, 12V, -12V and 5VSB outputs. The PM-P006UPS supports up to two
Li-Polymer smart batteries to provide stable and uninterruptible power. The power module
also receives a wide range of inputs between 6V and 36V DC. The PM-P006UPS is built
on an intelligent design and provides outstanding line and load regulations. The
PM-P006UPS is capable of sustaining 90% power efficiency.
The PM-P006UPS power module also comes with the utility software that provides
information on current power source, battery status, charging status and remaining
percentage.
1.2 PM-P006UPS Power Module Features
Highly compact design
High efficiency up to 90%
Load down protection
Over voltage protection
Over current protection
Short circuit protection
Supports up to two battery packs
Supports AT or ATX mode
