PM-P006UPS DC/DC Converter Module

Page 16

4.1 Peripheral Interface Connectors

Section

158H158H166H

4.1.1

shows peripheral interface connector locations. Section

159H159H167H

4.1.2

lists all the

peripheral interface connectors seen in Section

160H160H168H

4.1.1

.

4.1.1 PM-P006UPS Layout

161H161H169H

Figure 4-1

shows the on-board peripheral connectors of PM-P006UPS.

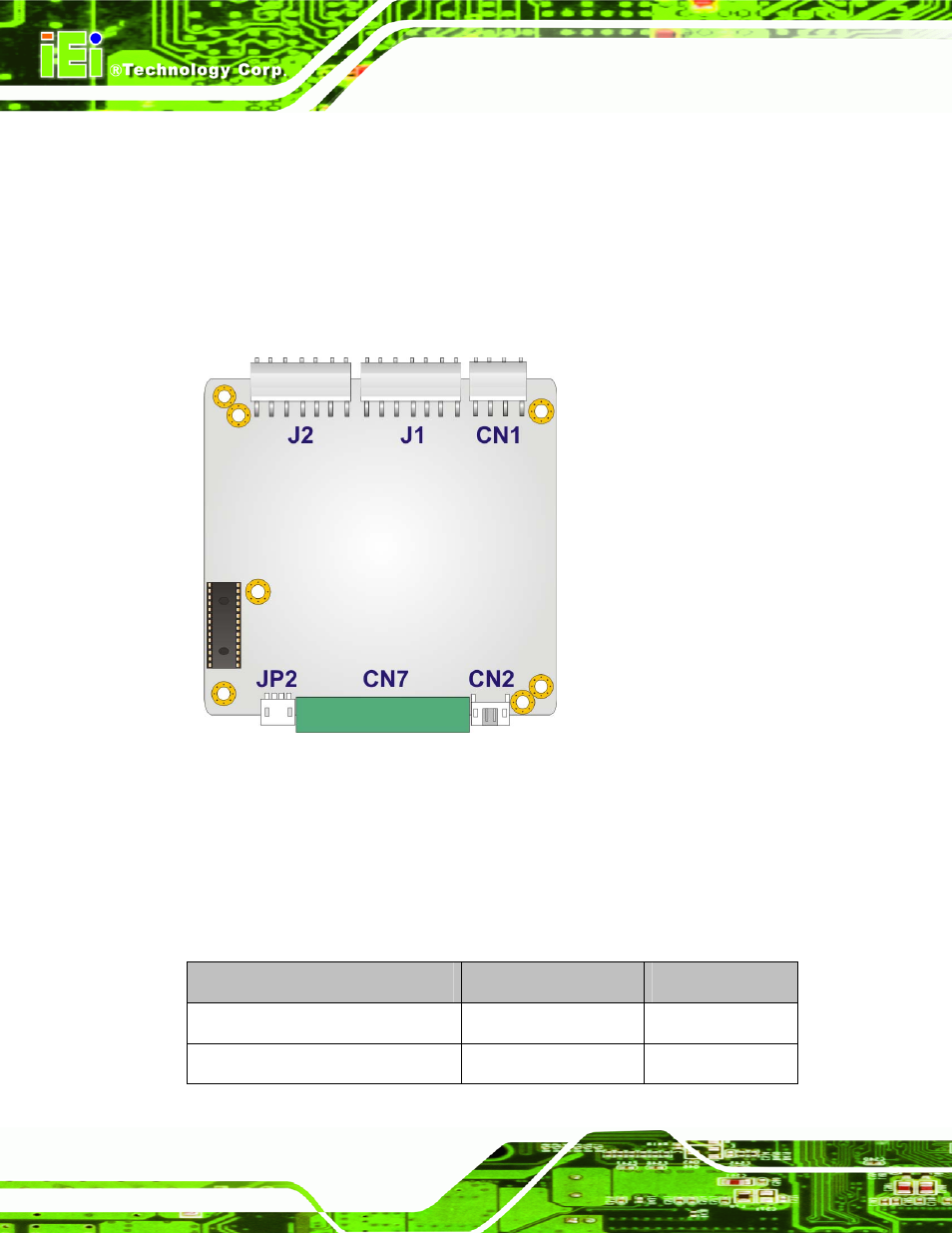

Figure 4-1: PM-P006UPS Connector Locations

4.1.2 Peripheral Interface Connectors

162H162H170H

Table 4-1

shows a list of the peripheral interface connectors on the PM-P006UPS.

Detailed descriptions of these connectors can be found below.

Connector

Type

Label

ATX mode connector

4-pin wafer connector

CN2

Battery connector (1)

7-pin wafer connector

J1
