LKM Series Console Drawer

1.2.5 LKM Rear View

1.2.5.1 Single Port KVMA

The rear panel of the drawer consists of industry standard VGA, keyboard, mouse and

audio connectors, as well as a power connector and cooling vents. Figure 1-7 shows the

rear view of the LKM-926 series console drawer.

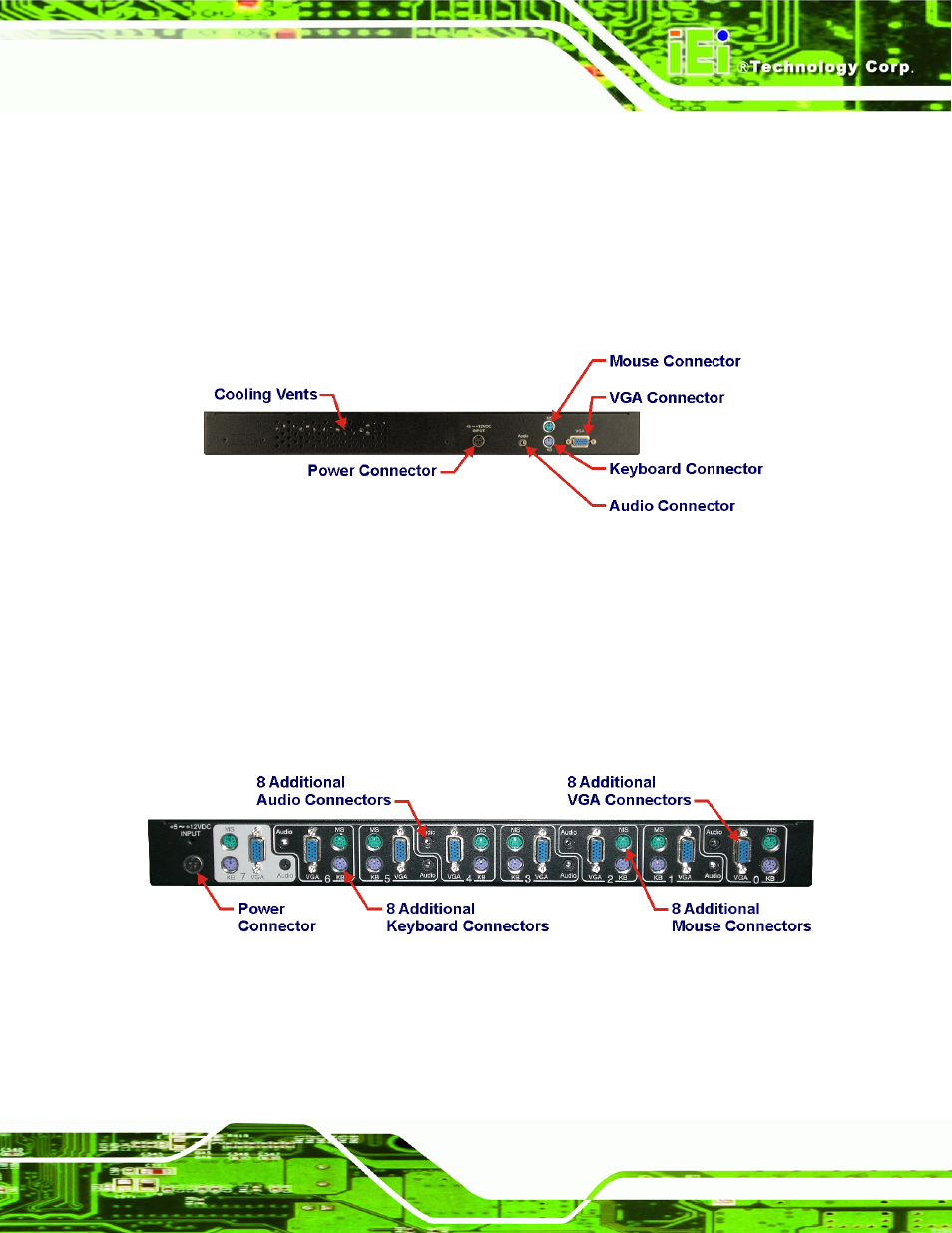

Figure 1-7: Single Port KVMA Rear View

1.2.5.2 KVMA 8-Port Switch

The KVMA 8-port switch can be used to connect up to eight systems to the LKM series

console drawer. Each system can be connected to the console via its own standard audio,

VGA, keyboard and mouse connectors. Each system can be easily accessed through the

LCM on the keyboard tray (see Figure 1-3). Figure 1-8 shows the KVMA 8-port switch.

Figure 1-8: 8-Port KVMA Rear View
