3.4 Memory Module Replacement

The panel PC is preinstalled with a 1 GB DDR2 memory module. If the memory module is

fail, follow the instructions below to replace the memory module.

Step 1:

Remove the aluminum back cover. See Section 3.3 above.

Step 2:

Locate the DDR2 SO-DIMM on the motherboard (Figure 3-4).

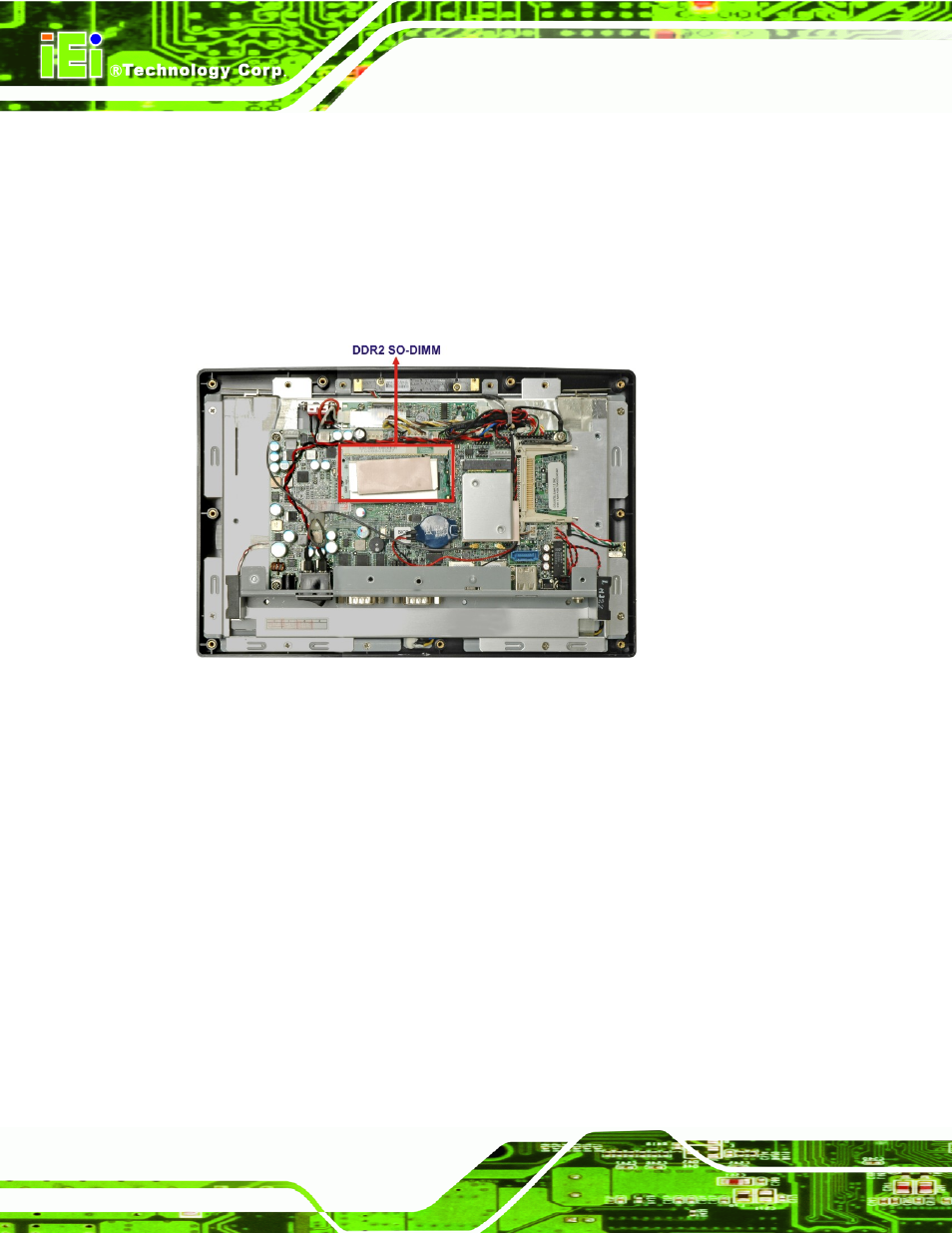

Figure 3-4:AFL-W10A-N270 SO-DIMM Socket Location

Step 3:

Remove the DDR memory module by pulling both the spring retainer clips

outward from the socket.

Step 4:

Grasp the DDR memory module by the edges and carefully pull it out of the

socket.

Step 5:

Install the new DDR memory module by pushing it into the socket at an angle

Step 6:

Gently pull the spring retainer clips of the SO-DIMM socket out and push the

rear of the DDR memory module down (Figure 3-5).

Step 7:

Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR memory module in the socket.

Step 0:
