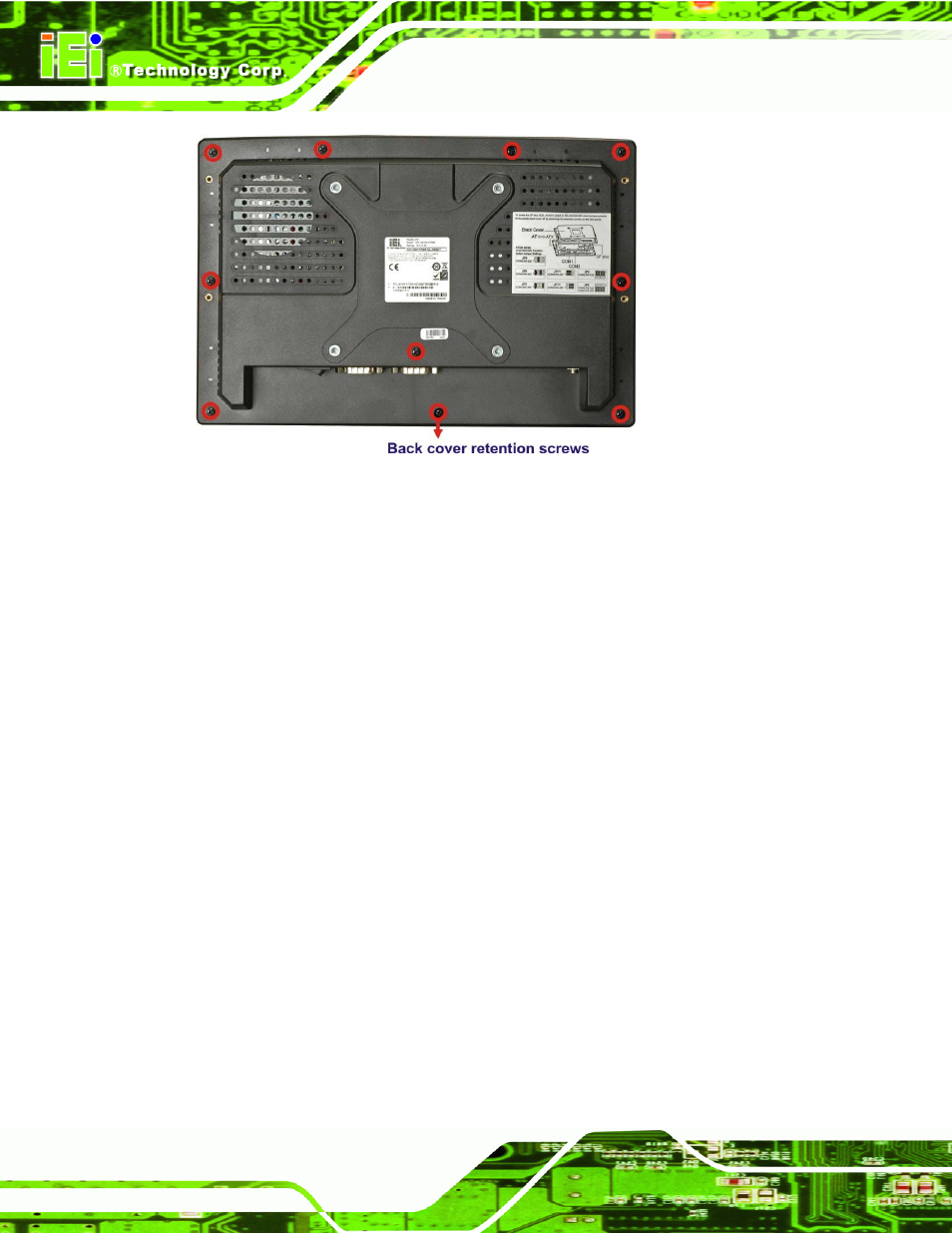

Figure 2-1: Back Cover Retention Screws

Step 2:

Lift the cover and pull down the cover a bit to make it possible to fully remove it.

More strength is required to separate the cover from the chassis.

Step 0:

2.3 CF Card Installation

The AFL-W10A-N270 has one CF Type II slot inside the rear panel. The slot can be

access without removing the back cover. To install the CF card, follow the instructions

below.

Step 1:

Locate the CF slot cover. Remove the retention screw and cover (Figure 2-2).
