2.4 AT/ATX Mode Selection

AT and ATX power modes can both be used on the AFL-W10A-N270. The selection is

made through an AT/ATX switch on the top edge of the inner aluminum cover (Figure 2-4).

To select AT mode or ATX mode, follow the steps below.

Step 1:

Locate the AT/ATX switch on the top edge of the aluminum cover (Figure 2-4).

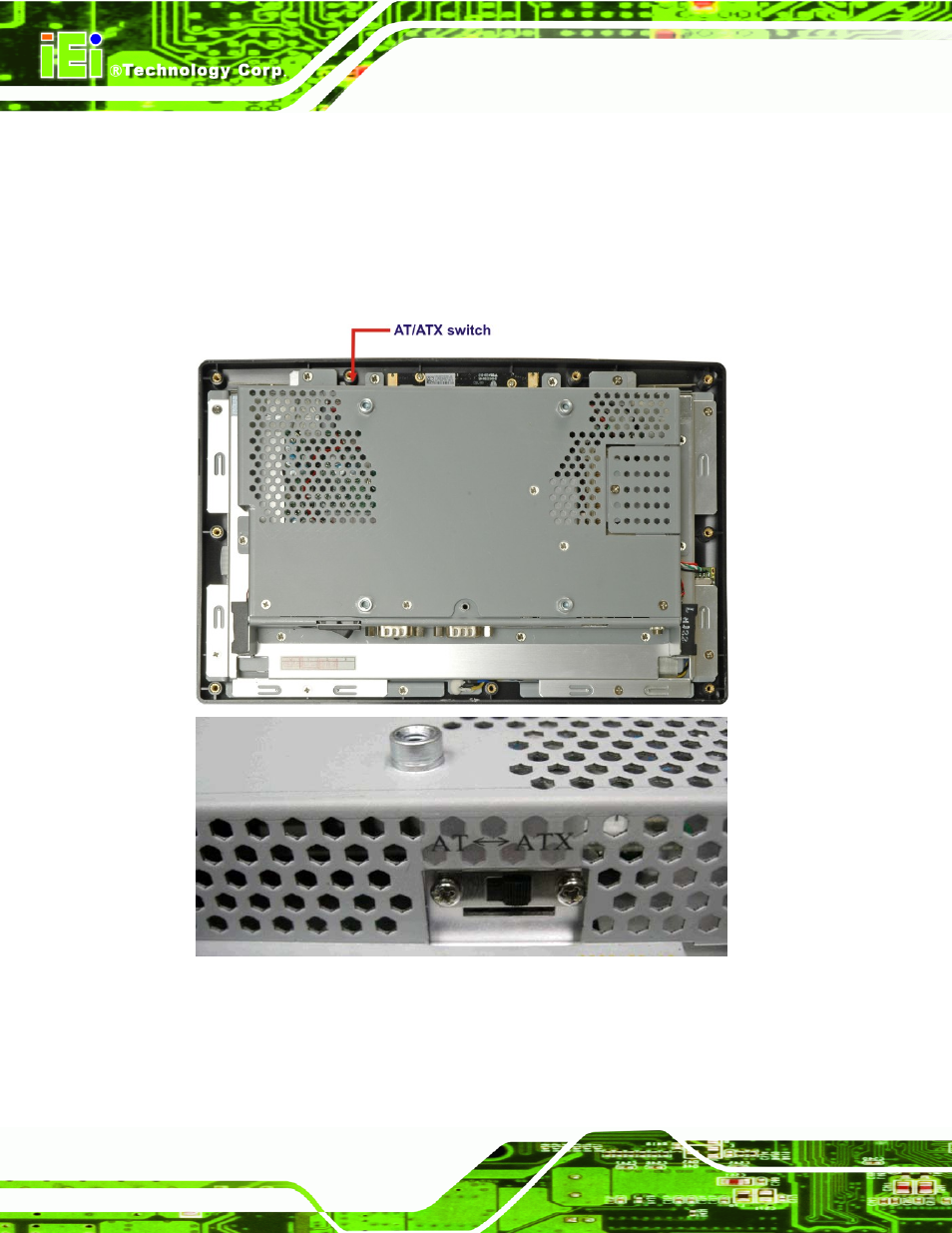

Figure 2-4: AT/ATX Switch Location

Step 2:

Adjust the AT/ATX switch.

Step 0:
