AFL-W10A-N270 User Manual

Page 50

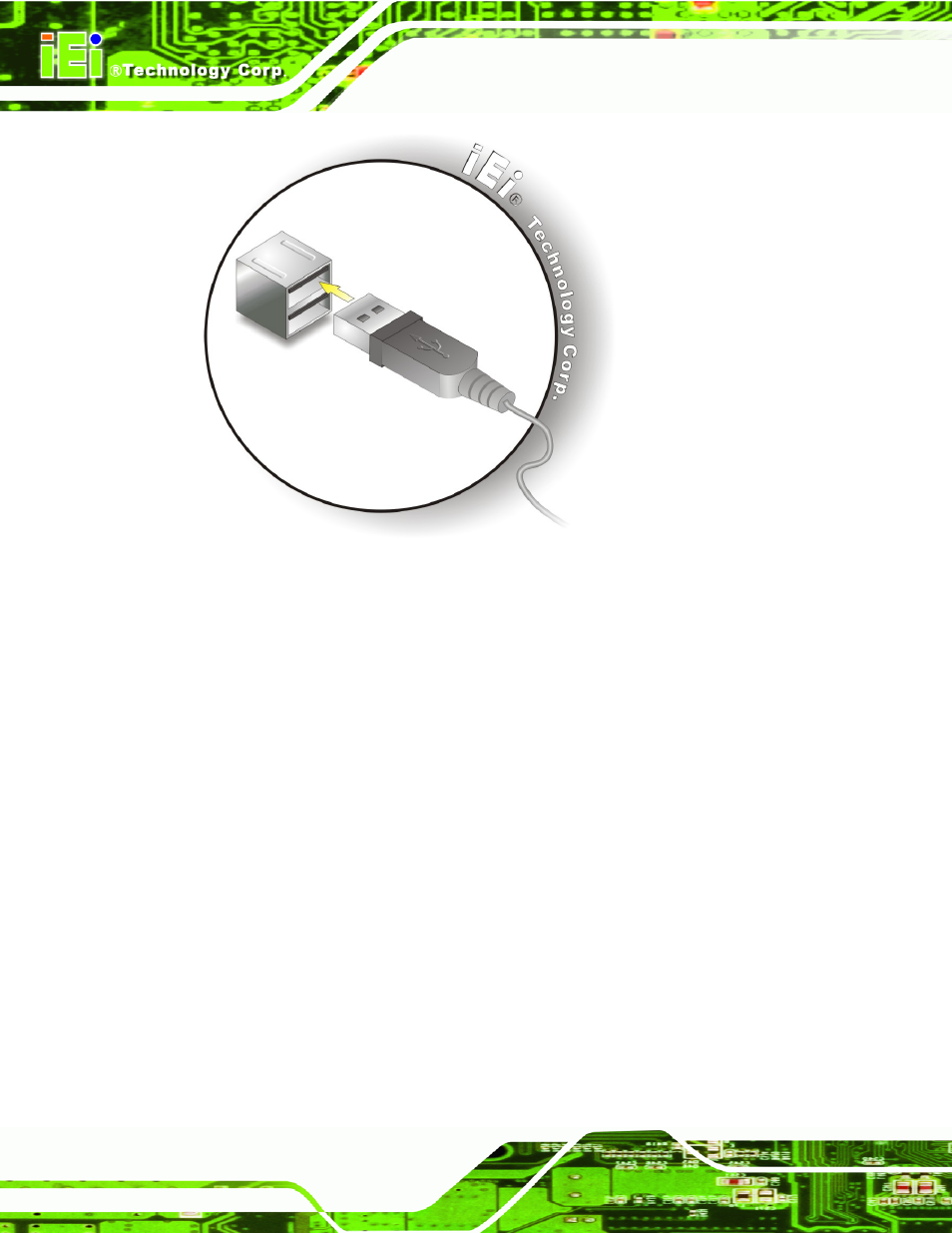

Figure 2-21: USB Device Connection

Step 3:

Insert the device connector.

Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:

2.8 Power Connection

The power cable connects the power adapter to the power outlet. The power adapter and

power cable are required for operation of the panel PC.

Step 1:

Connect the power adapter to the panel PC.

Step 2:

Connect the power cable to the included power adapter.

Step 3:

Connect the power cable to the power outlet.

Step 0:
