PPC-37xx-N270 Panel PC

Page 24

2.8 System Power

2.8.1 PPC-37xxA-N270 Series Power

The standard system is shipped with a 90 V to 264 V AC power adapter that has a

maximum power output of 60 W. The power adapter has a 12 V DC output connector. The

PPC-37xxA-N270 series has one 12 V power input connector on the bottom panel. The

power connector is shown in Figure 2-13 below.

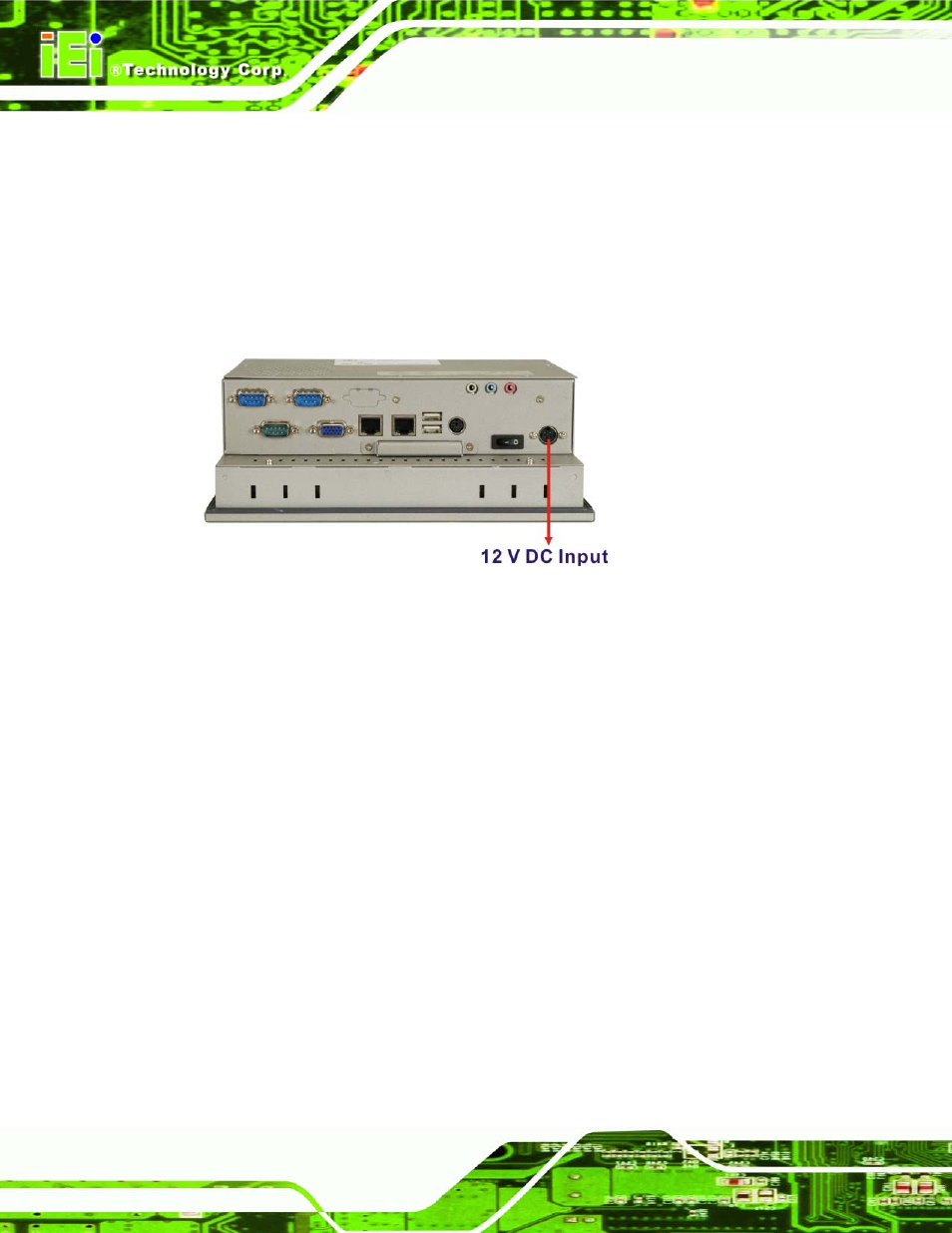

Figure 2-13: Power Connector

2.8.2 PPC-3712B-N270 Power

The PPC-3712B-N270 series has two main models, one with AC power adapter and the

other with DC power adapter. The PPC-3712B-N270 models and power adapter

information are listed below.

PPC-3712BA

86 W AC-DC AT Power Adapter (ACE-890A)

Input: 85 V AC ~ 264 V AC

Output: 12 V DC

PPC-3712BT

90 W DC-DC ATX Power Adapter (ACE-709TX)

Input: 36 V DC ~ 72 V DC

Output: 12 V DC
