Page 22

PPC-37xx-N270 Panel PC
Page 6
1.2.2 Rear Panel
The rear panel provides access to a fan ventilation vent and four retention screw holes
that support a wall-mounting bracket. Figure 1-3 shows the retention screw holes of the
PPC-3712A-N270.

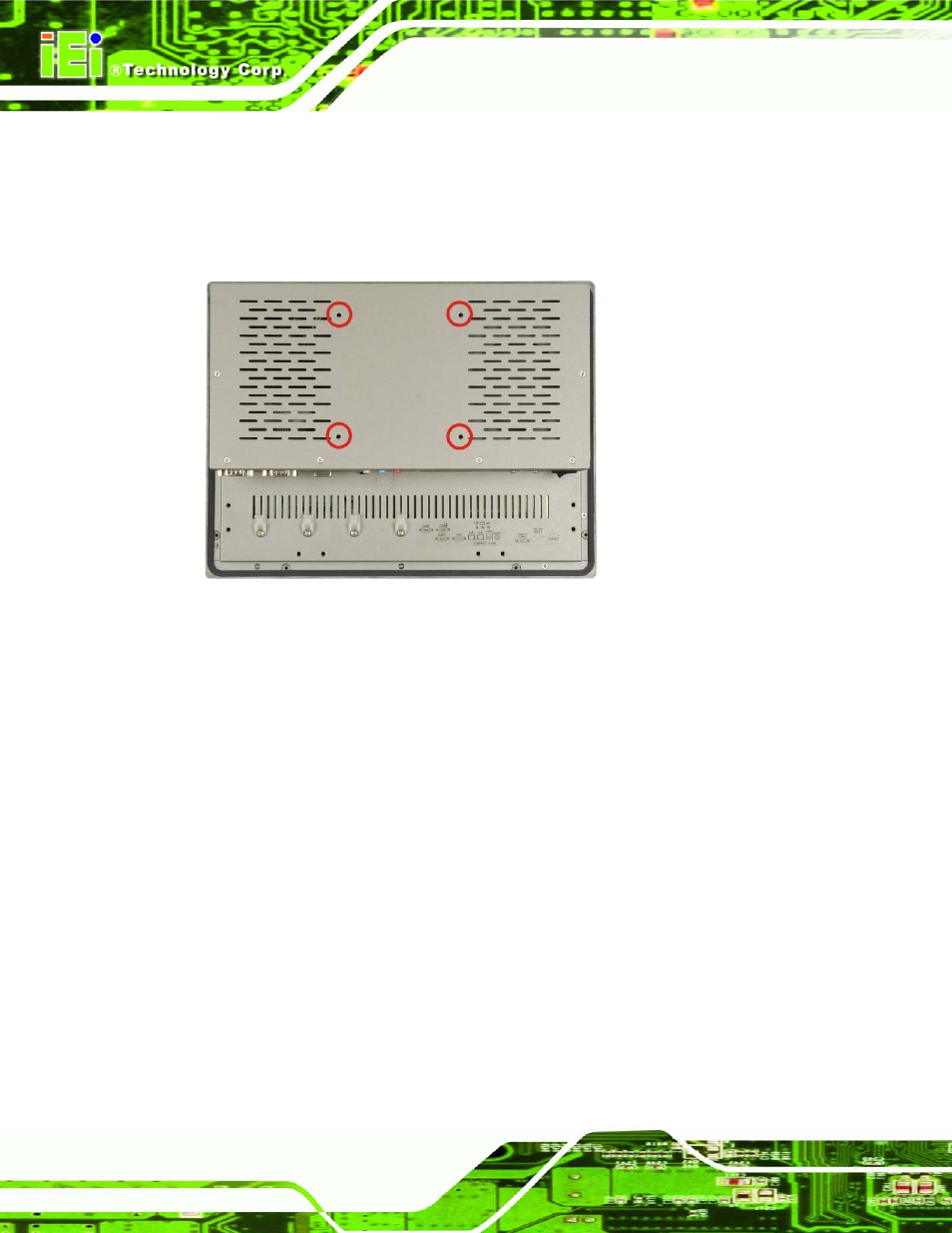

Figure 1-3: PPC-3712A-N270 Wall-Mounting Bracket Retention Screw Holes
1.2.3 Bottom Panel
All peripheral device connectors are located on the bottom panel of the flat panel PC. The
following sections describe the bottom panel variants.
1.2.3.1 PPC-3708A-N270 Bottom Panel
The following is a list of the bottom panel peripheral device connectors on the
PPC-37xx-N270. Diagrams for each other models are shown below.
1 x RS-232/422/485 port
2 x RS-232 ports
3 x Audio jacks (Line-in, Line-out and MIC-in)
1 x PS/2 keyboard/mouse connector
1 x AC power adapter connector
1 x VGA connector
2 x RJ-45 GbE connector
