UIBX-200-R11/Z510P Embedded System

Page 18

4.3 CompactFlash® Card Installation

The UIBX-200-R11/Z510P supports a single CompactFlash® card. The CompactFlash®

card contains the operating system. To install, follow the steps below.

Step 1:

Unlock and open the cover door.

Step 2:

Slide the CompactFlash® card into the slot.

Step 3:

Close and lock the door.

Step 0:

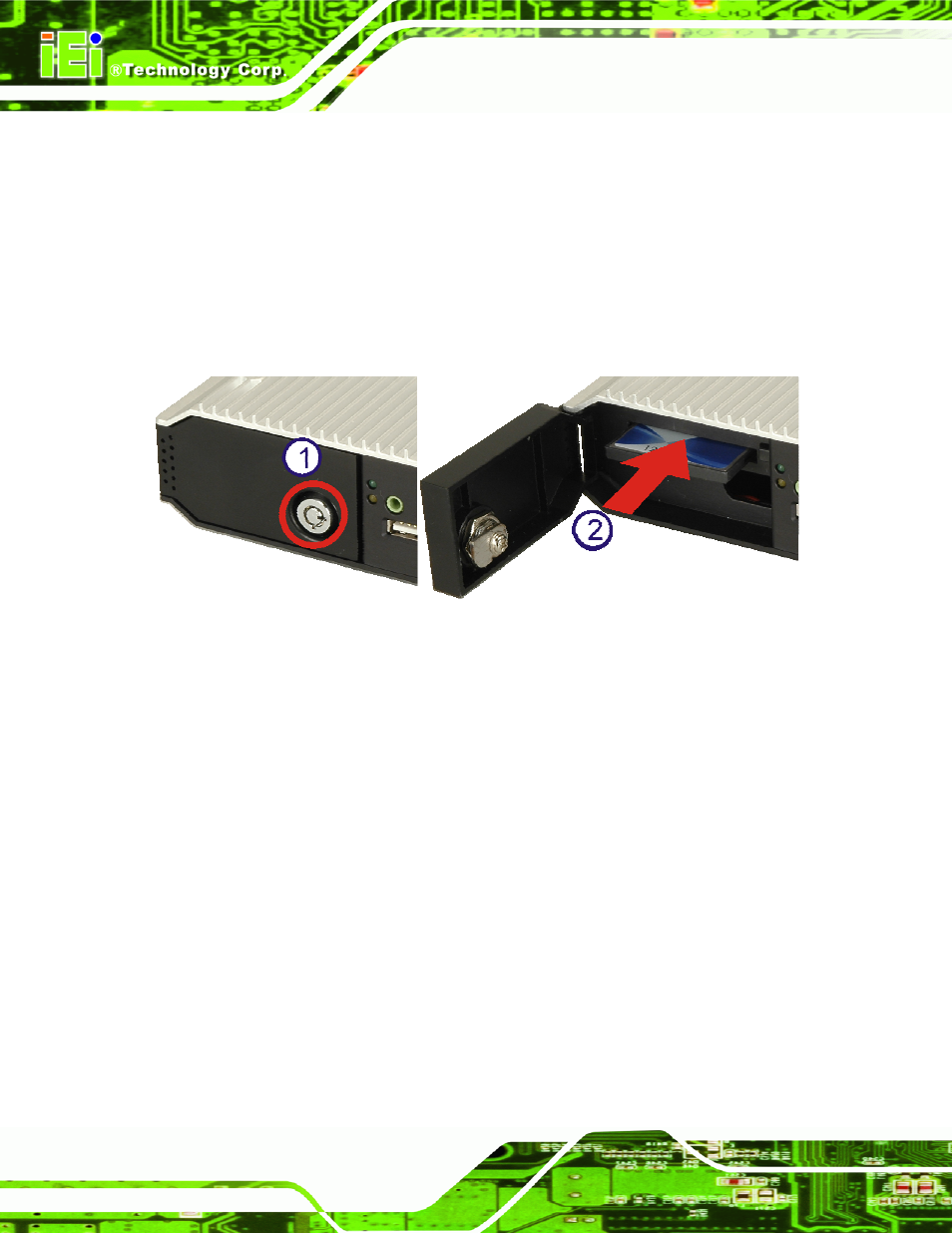

Figure 4-2: CompactFlash® Card Installation

4.4 SD Storage Card Installation (Optional)

An optional two SD card slots are available inside the UIBX-200-R11/Z510P. The SD

cards are used for storage only. The CompactFlash® card is used for the operating

system. To install SD cards in the UIBX-200-R11/Z510P, please follow the steps below.

Step 1:

Turn the system upside down.

Step 2:

Remove the screws.

Step 3:

Slide back and lift to remove.
