NOVA-945GSE 5.25” SBC
Page 71
J_LCD_TYPE1 Description
Open 640 x 600 (18-bit)
Short 1-2 800 x 480 (18-bit)
Short 3-4 800 x 600 (18-bit) (Default)
Short 1-2, 3-4 1024 x 768 (18-bit)
Short 5-6 1280 x 1024 (36-bit)
Short 1-2, 5-6 1400 X 1050 (36-bit)
Short 3-4, 5-6 1400 x 900 (36-bit)
Short 1-2, 3-4, 5-6 1600 x 1200 (36-bit)
Table 4-6: LVDS1 Panel Resolution Jumper Settings
JP4 Description
Open 1440 x 900 (48-bit)
Short 1-2 1024 X 768 (24-bit)
Short 3-4 1366 X 768 (24-bit)
Short 1-2, 3-4 1280 X 1024 (48-bit)
Table 4-7: LVDS2 Panel Resolution Jumper Settings

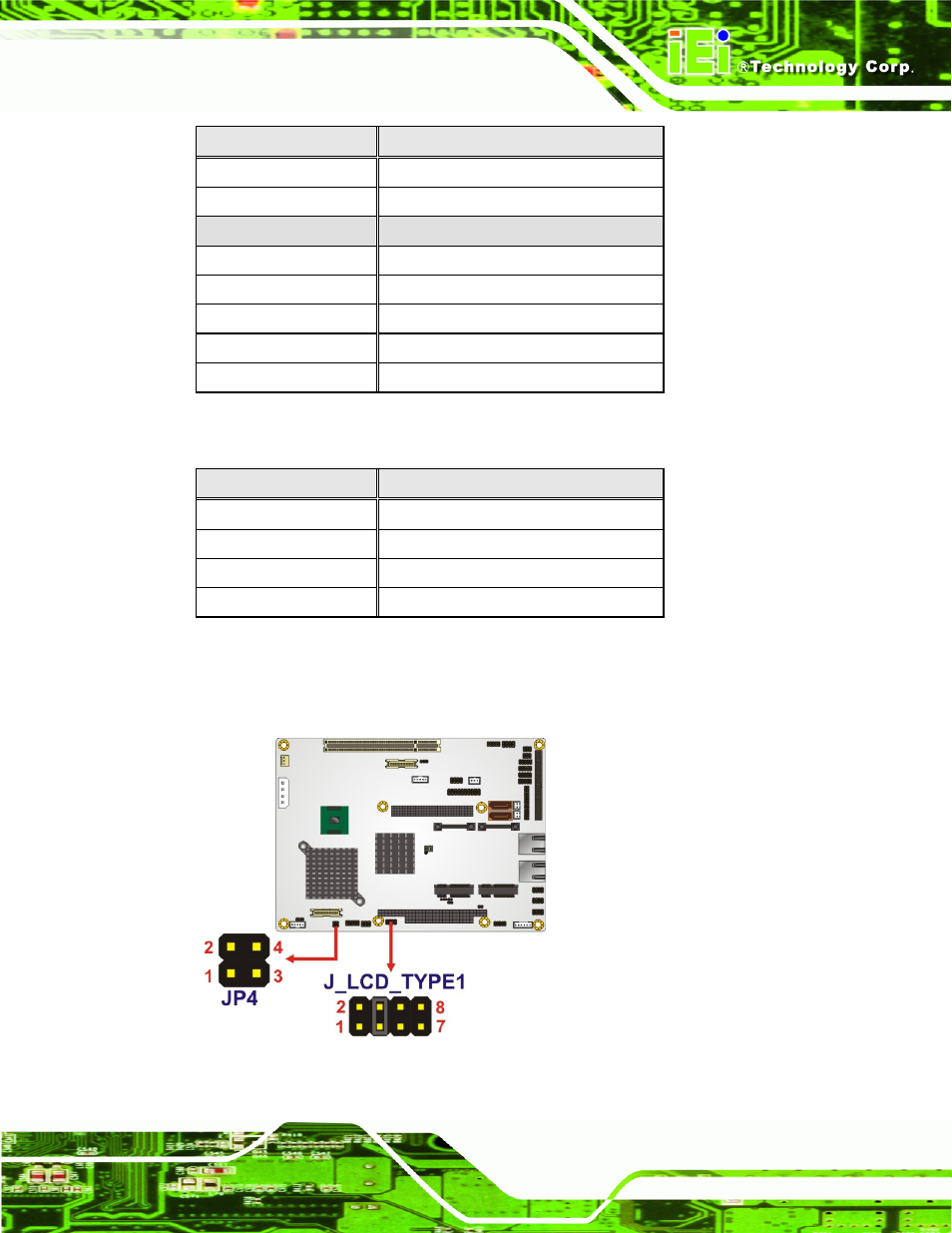

The LVDS Panel Resolution jumper locations are shown in Figure 4-8.
Figure 4-8: LVDS Panel Resolution Jumper Pinout Locations
