NOVA-945GSE 5.25” SBC
Page 35

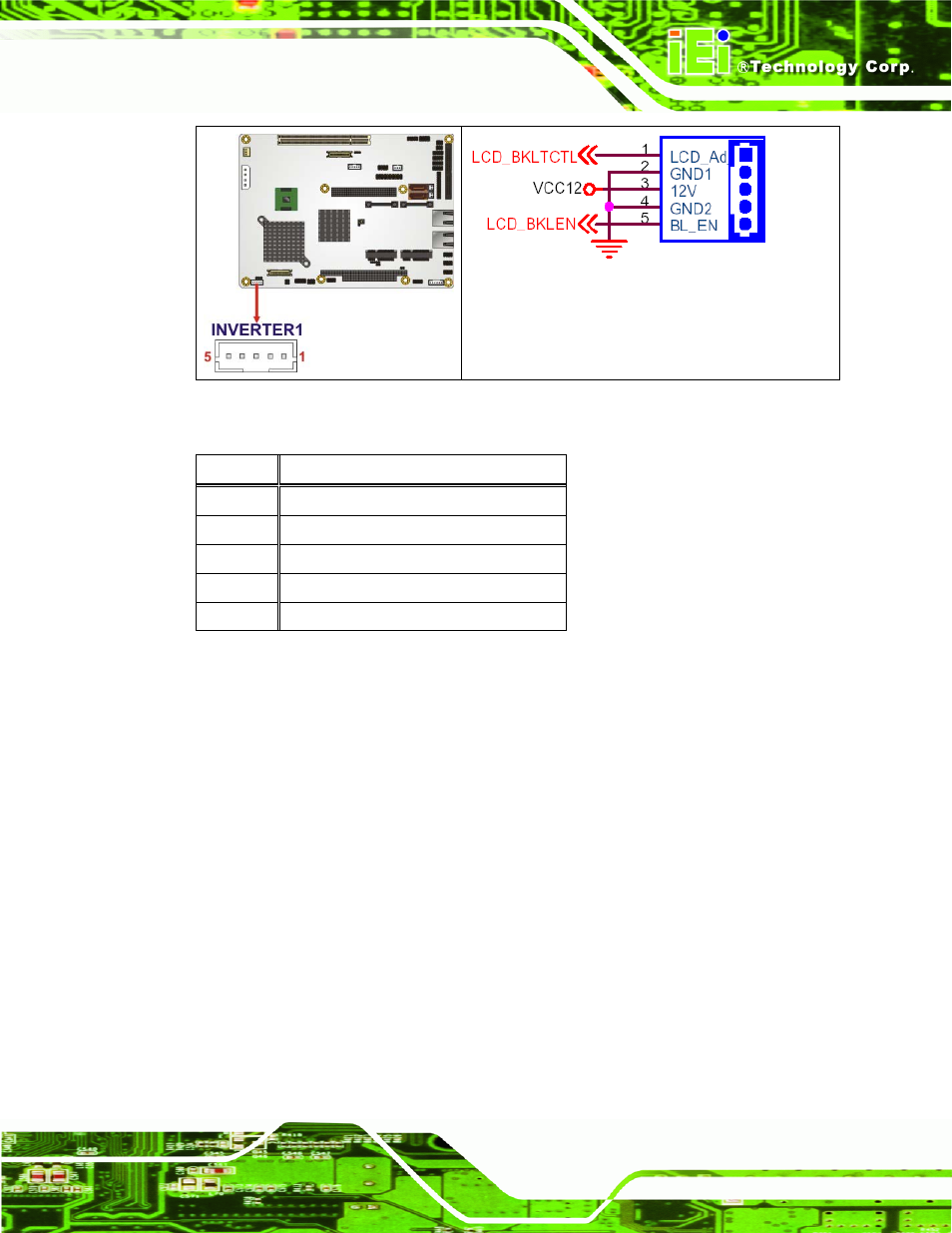

Figure 3-6: Panel Backlight Connector Pinout Locations
PIN NO. DESCRIPTION
1 LCD Backlight Control
2 GROUND
3 +12V
4 GROUND
5 BACKLIGHT Enable
Table 3-6: Panel Backlight Connector Pinouts
3.3.5 Backlight Inverter Connector (for 2
nd
LVDS Connector)
CN Label: INV2
CN Type: 5-pin wafer (1x5)
CN Location: See Figure 3-7
CN Pinouts: See Table 3-7
The backlight inverter connector provides the backlight on the LCD display connected to
the 2
nd
LVDS connector of the NOVA-945GSELVDS2 with +12V of power.
