NOVA-945GSE 5.25” SBC

Page 50

3.3.17 SATA Drive Connectors

CN Label:

SATA1 (Slave) and SATA2 (Master)

CN Type:

7-pin SATA drive connectors

CN Location:

See

6

Figure 3-19

CN Pinouts:

See

6

Table 3-19

The two SATA drive connectors are each connected to a first generation SATA drive. First

generation SATA drives transfer data at speeds as high as 150 Mb/s. The SATA drives

can be configured in a RAID configuration.

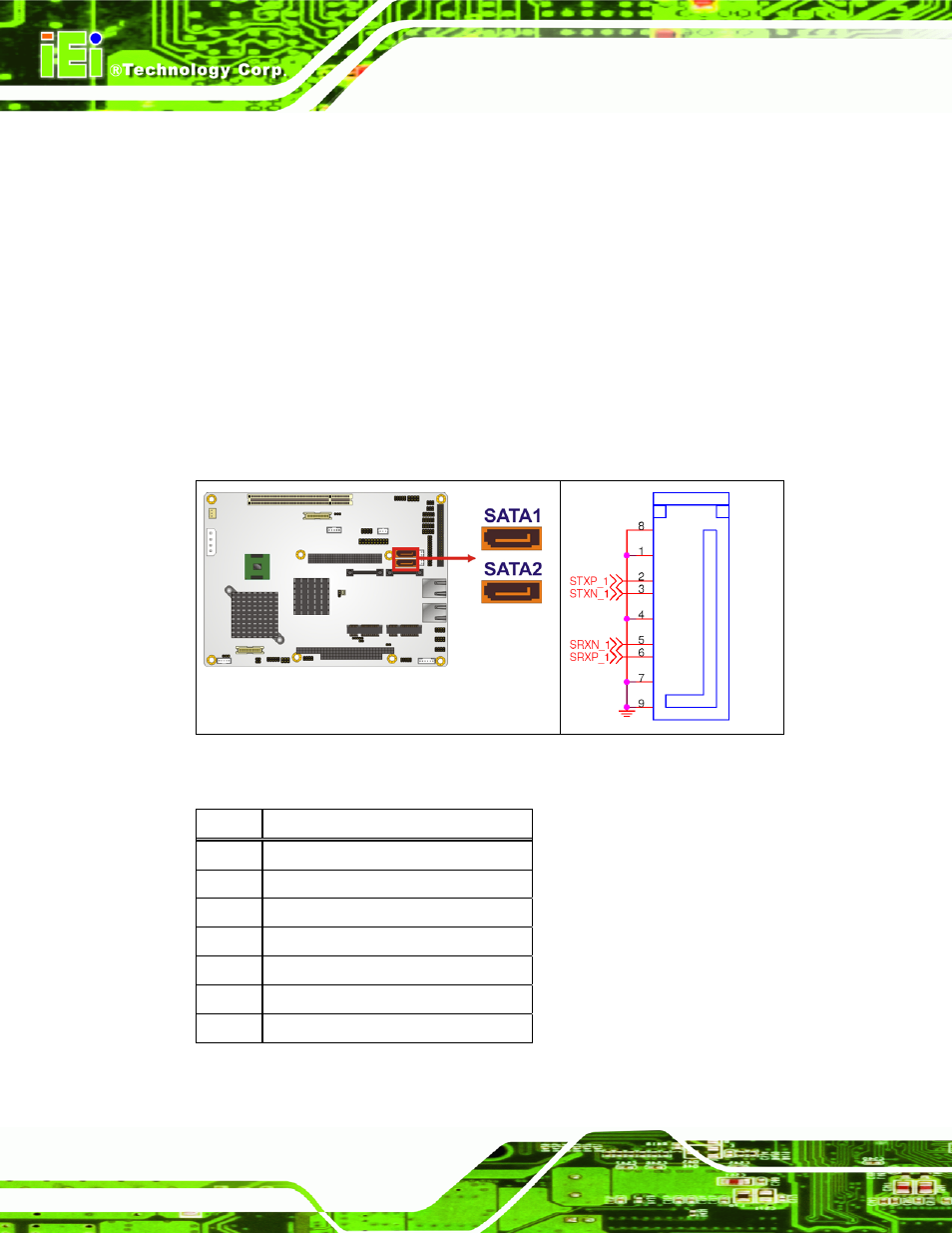

Figure 3-19: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-19: SATA Drive Connector Pinouts
