NOVA-945GSE 5.25” SBC

Page 51

3.3.18 SATA Power Connectors

CN Label:

CN1 and CN2

CN Type:

2-pin wafer

CN Location:

See

6

Figure 3-20

CN Pinouts:

See

6

Table 3-20

The SATA power connector provides +5V power to the SATA drive.

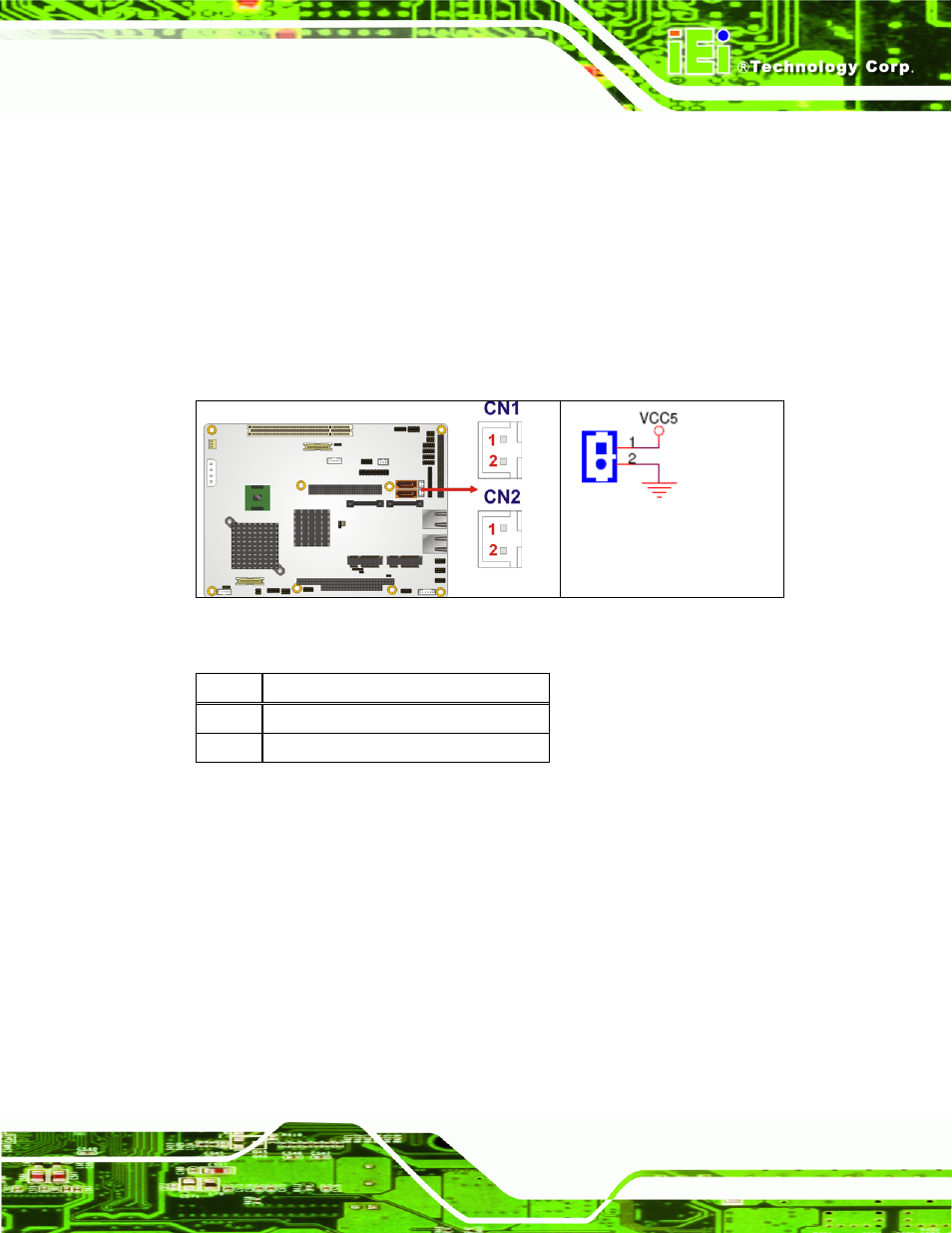

Figure 3-20: SATA Power Connector Locations

PIN NO. DESCRIPTION

1 +5V

2 GND

Table 3-20: SATA Power Connector Pinouts

3.3.19 Serial Port Connectors (COM 1 ~ COM 4)

CN Label:

COM1, COM2, COM3 and COM4

CN Type:

10-pin header (2x5)

CN Location:

See

6

Figure 3-21

CN Pinouts:

See

6

Table 3-21
