IMB-Q670 Micro-ATX Motherboard

Page 60

PIN NO.

DESCRIPTION

Short 1-2

Overwrite disable

Short 2-3

Overwrite enable

Table 4-4: ME Debug Connector Pinouts

4.3.4 USB Power Select Jumper

Jumper Label:

USB_PWR1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-9

The USB power connector allows the user to select the USB power setting.

Setting Description

Short 1-2

+5V

Short 2-3

+5VSB

Table 4-5: USB Power Select Jumper Settings

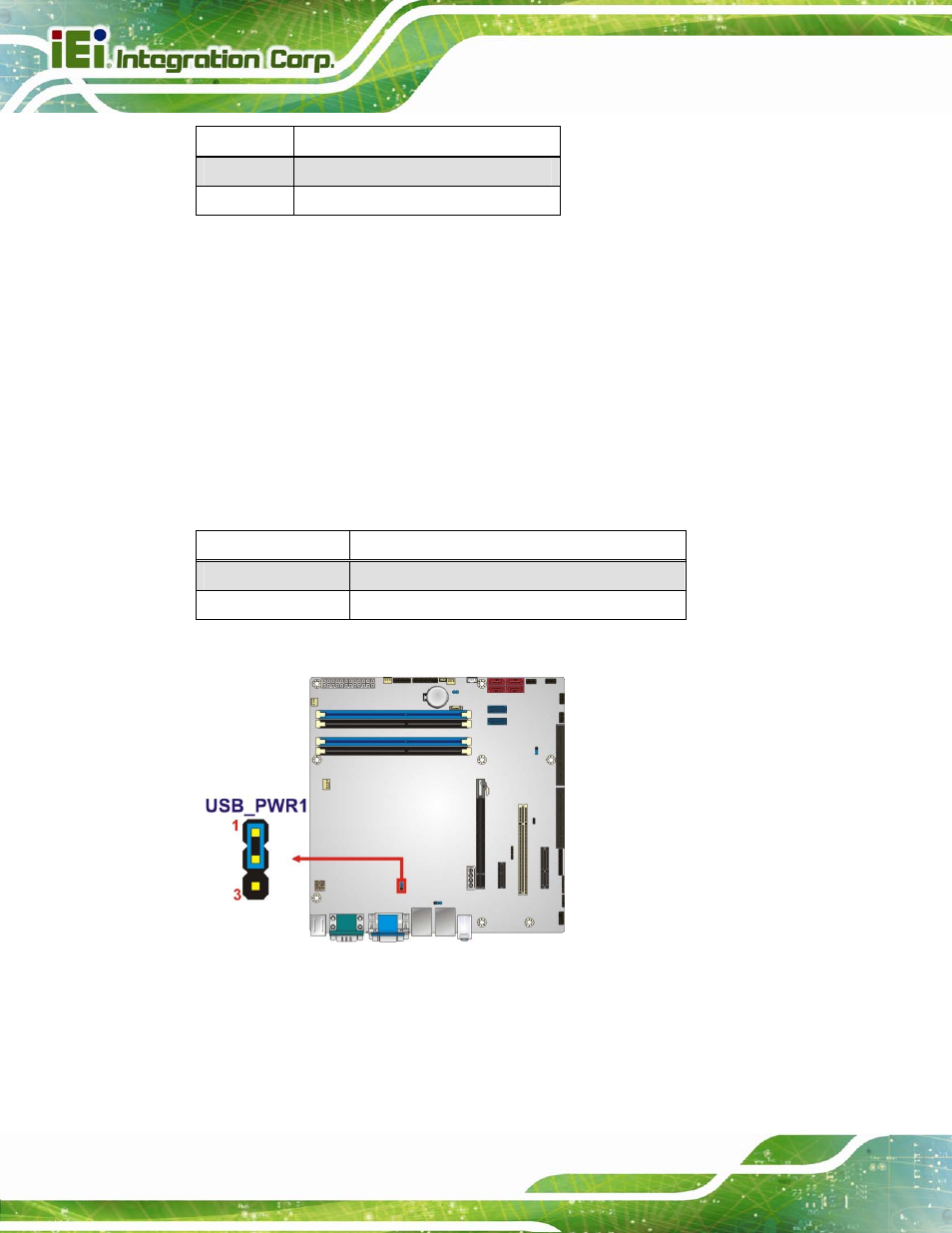

Figure 4-9: USB Power Select Jumper Location

4.3.5 Wake-on LAN Jumper

CN Label:

WOL_SEL1
