IMB-Q670 Micro-ATX Motherboard

Page 39

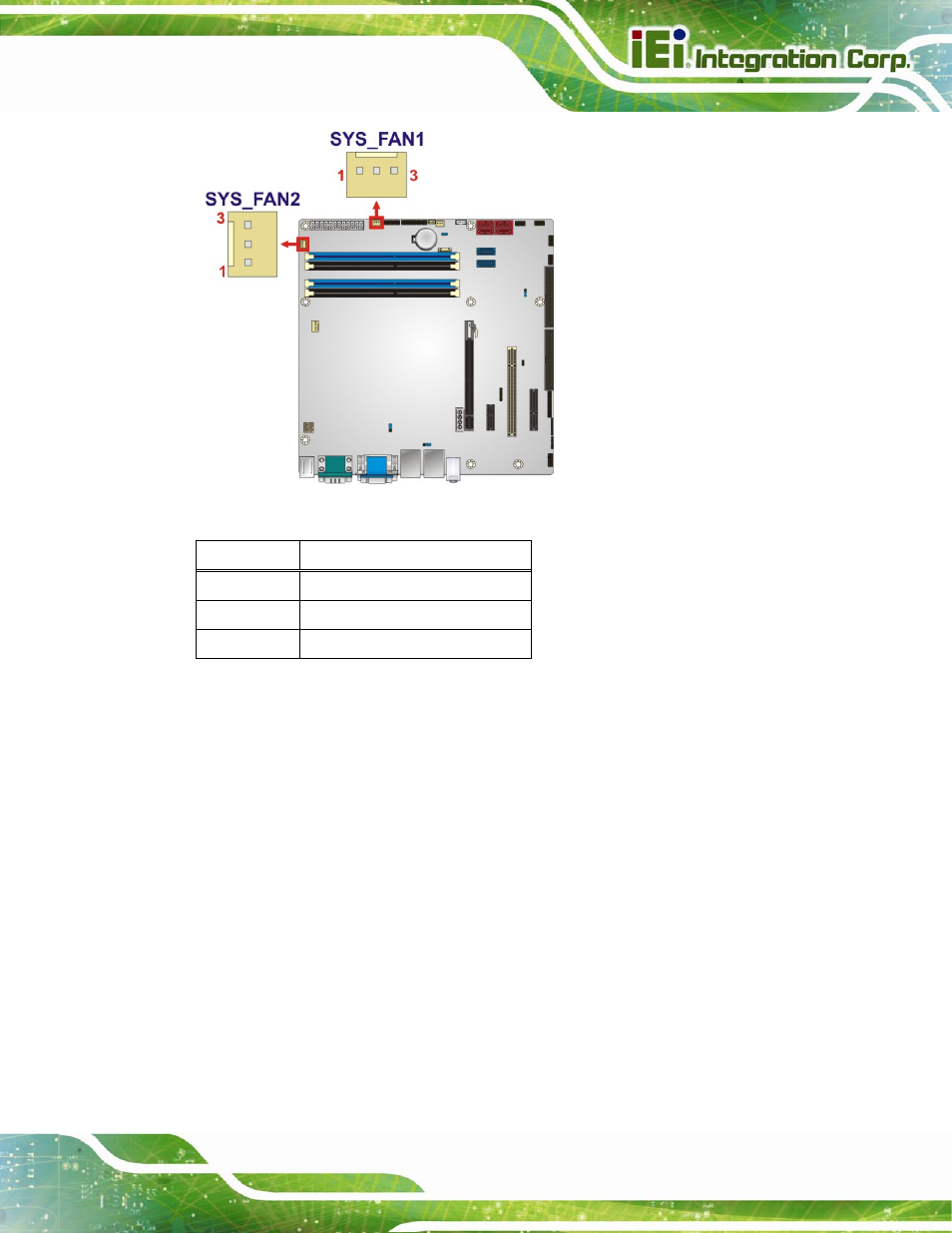

Figure 3-21: System Fan Connector Location

PIN NO.

DESCRIPTION

1

NC

2

+12V

3

GND

Table 3-22: System Fan Connector Pinouts

3.2.21 TPM Connector

CN Label:

TPM

CN Type:

20-pin header

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-23

The TPM connector connects to a TPM module.
