IMB-Q670 Micro-ATX Motherboard
Page 22
3.2.4 CPU Power Connector
CN Label: CPU12V1
CN Type: 4-pin box header
CN Location: See Figure 3-5
CN Pinouts: See Table 3-6
The CPU power input connector provides power to the CPU.

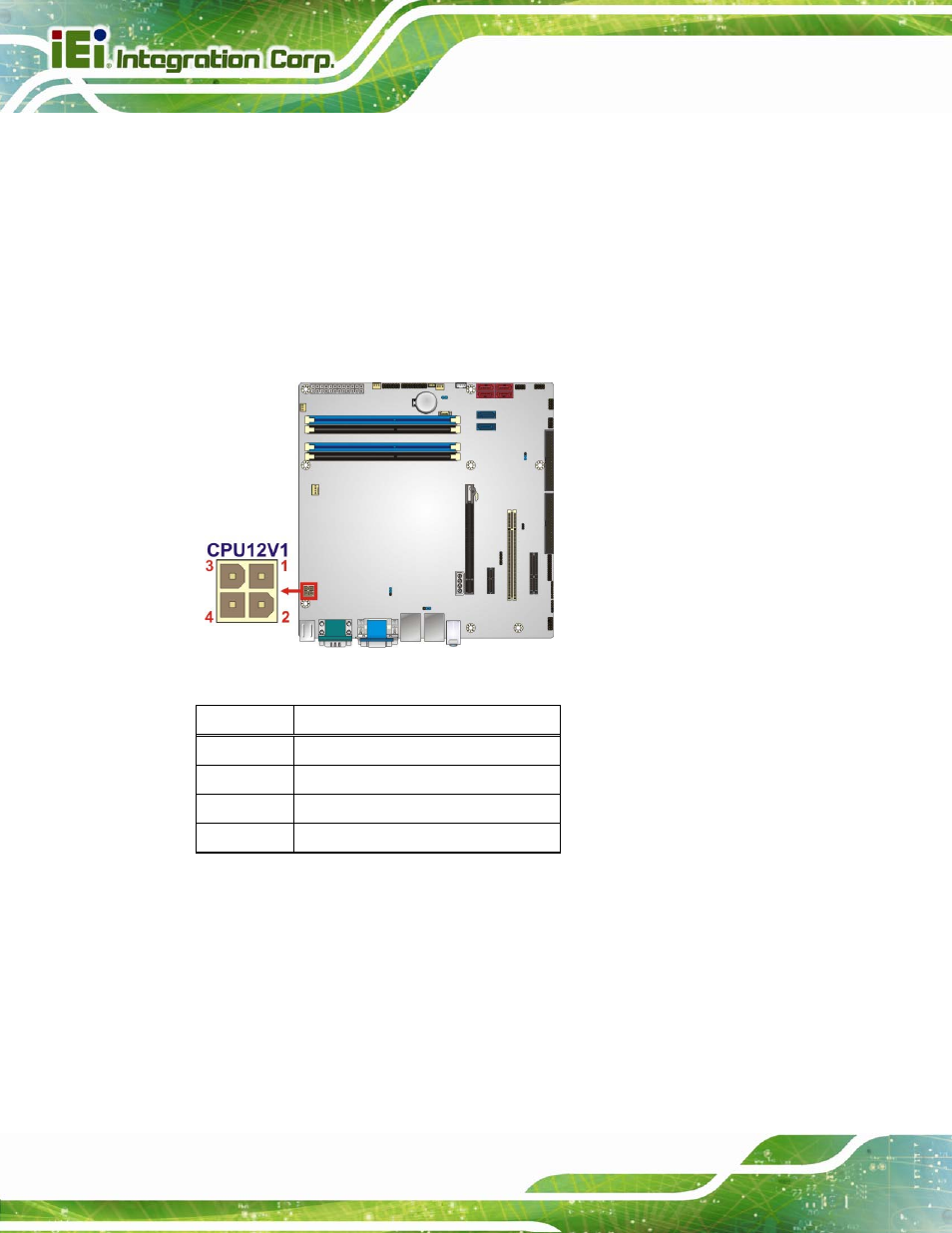

Figure 3-5: CPU Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 VREG_12V
4 VREG_12V
Table 3-6: CPU Power Connector Pinouts
3.2.5 Digital I/O Connector
CN Label: DIO1
CN Type: 26-pin header
CN Location: See Figure 3-6
CN Pinouts: See Table 3-7
