Page 43

IMB-Q670 Micro-ATX Motherboard

Page 29

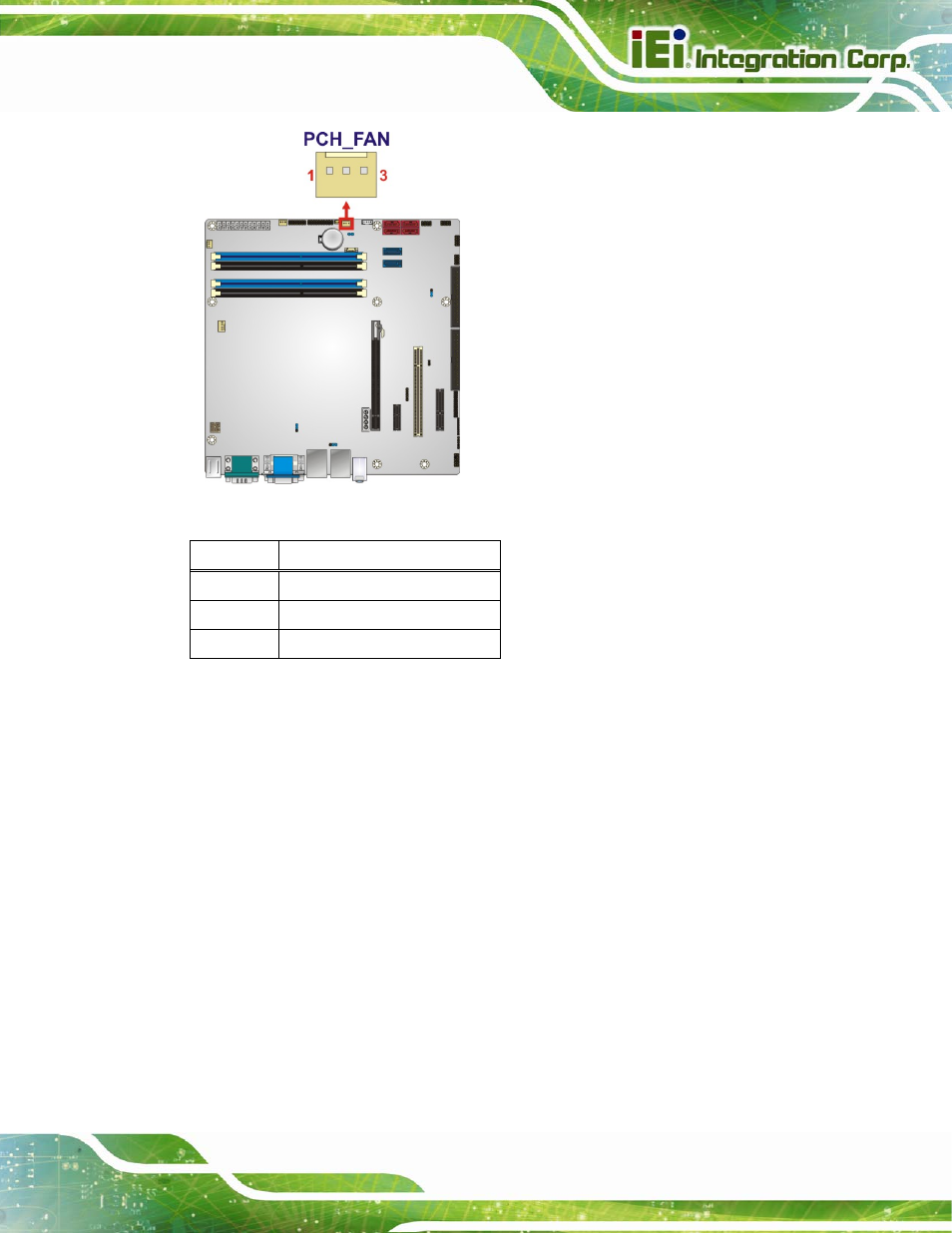

Figure 3-12: PCH Fan Connector Location

Pin Description

1 FANIN2

2 FANOUT2

3 GND

Table 3-12: PCH Fan Connector Pinouts

3.2.12 PCI Express Power

CN Label:

PCIE_12V1

CN Type:

4-pin Molex

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-13

Provides extra power to the PCIe x16 card.
