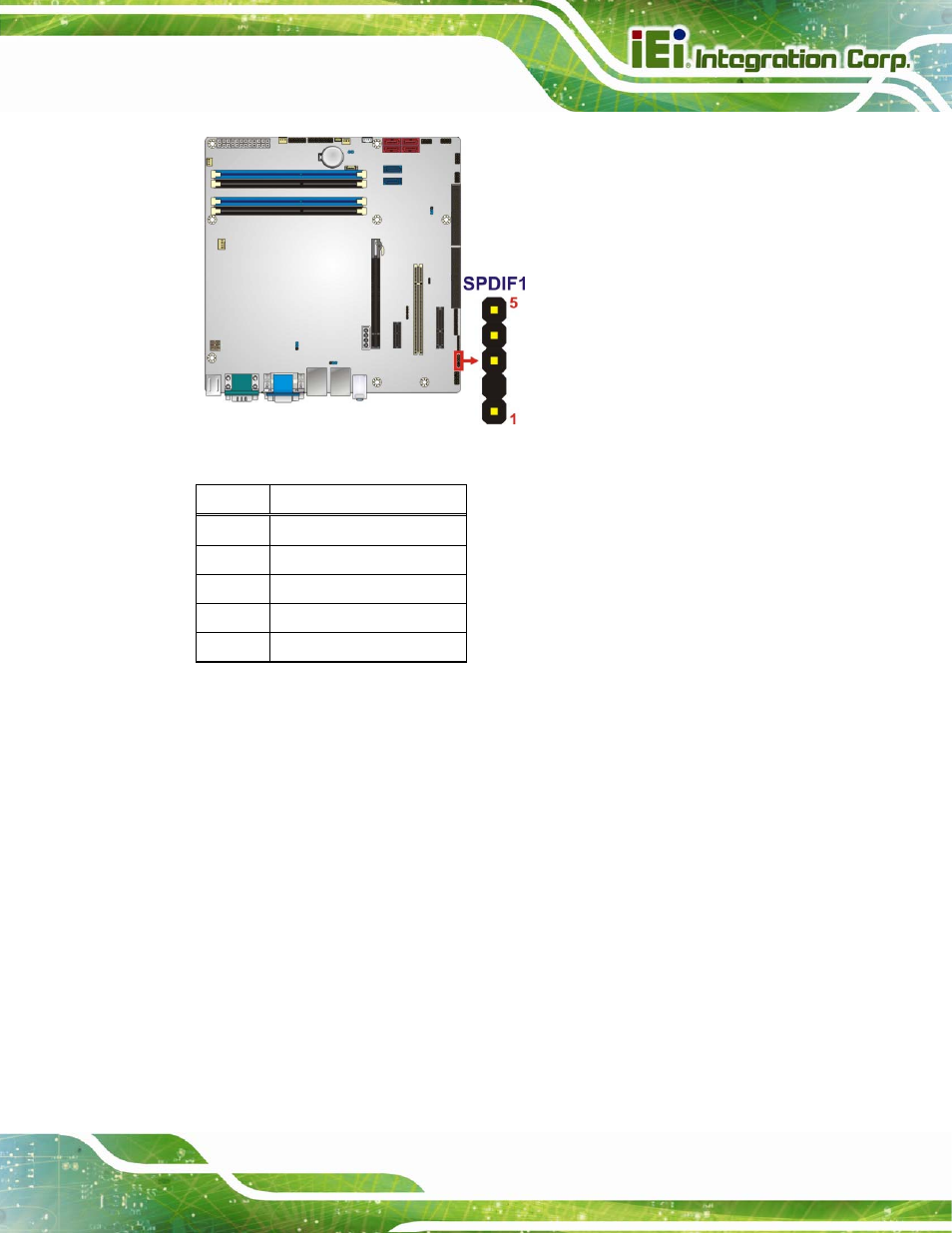

Figure 3-19: SPDIF Connector Location

PIN

DESCRIPTION

1

+5V

2

NC

3

SPDIFOUT

4

GND

5

SPDIFIN

Table 3-20: SPDIF Connector Pinouts

3.2.19 SPI Connector

CN Label:

SPI

CN Type:

6-pin wafer

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

The SPI connector is used to flash the BIOS.
