Page 43

PICOe-PV-D4251/N4551/D5251 User Manual

Page 29

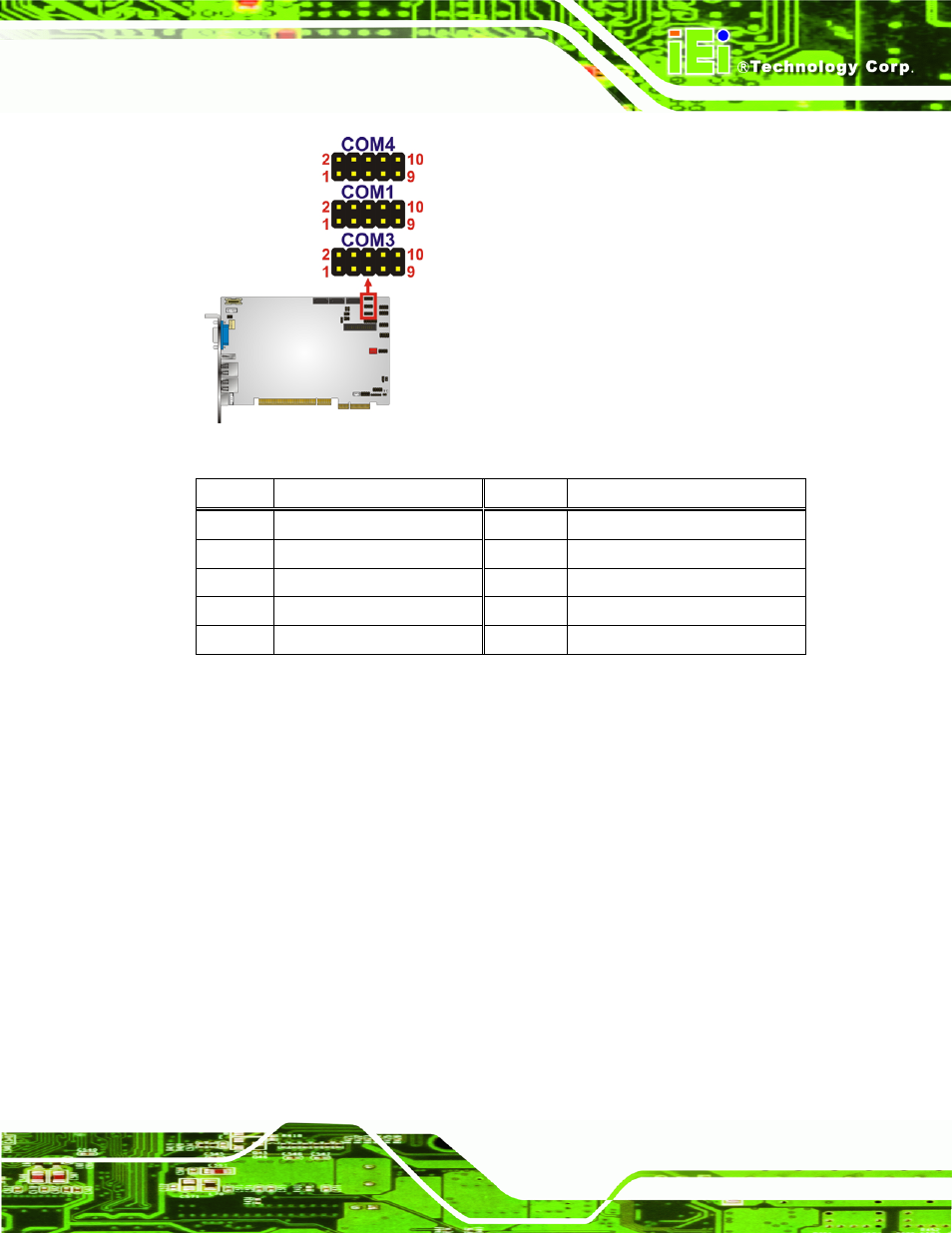

Figure 3-16: COM Connector Pinout Locations

Pin Description

1 DCD#

2 DSR#

3 RXD#

4 RTS#

5 TXD#

6 CTS#

7 DTR#

8 RI#

9 GND

10 N/A

Table 3-16: COM Connector Pinouts

3.2.15 Serial Port Connector (RS-232/422/485)

CN Label:

COM3

CN Type:

14-pin header (2x7)

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-17

Used for RS-232/422/485 communications.
