Applying a Single-Use Sensor
9650-0901-01 Rev. D R Series Pulse Oximetry (SpO
2
) 7
5. Lower the clear plastic protective cover over the connection to secure it.
6. Connect the SpO
2
patient cable to the SpO2 connector on the rear panel of the R Series unit.
Applying a Single-Use Sensor
You can use a disposable LNCS sensor for SpO
2
monitoring. Do not wrap the adhesive too
tightly as this can cause venous pulsations that could lead to inaccurate saturation
measurements.
You can reapply a disposable sensor to the same patient if the emitter and photodetector
windows are clear and the adhesive still adheres to the skin. To rejuvenate the adhesive, wipe it
with an alcohol pad and then allow the sensor to thoroughly air dry before placing it on the
patient.
Note: LNCS Adtx sensors are not intended for use across a child's hand or foot. For
instructions on proper application of neonatal sensors, refer to the Directions for Use
included with each LNCS sensor.
1. Open the pouch and remove the sensor.
2. Holding the sensor with the tan printed side downward, bend the sensor backward and
remove the backing material.

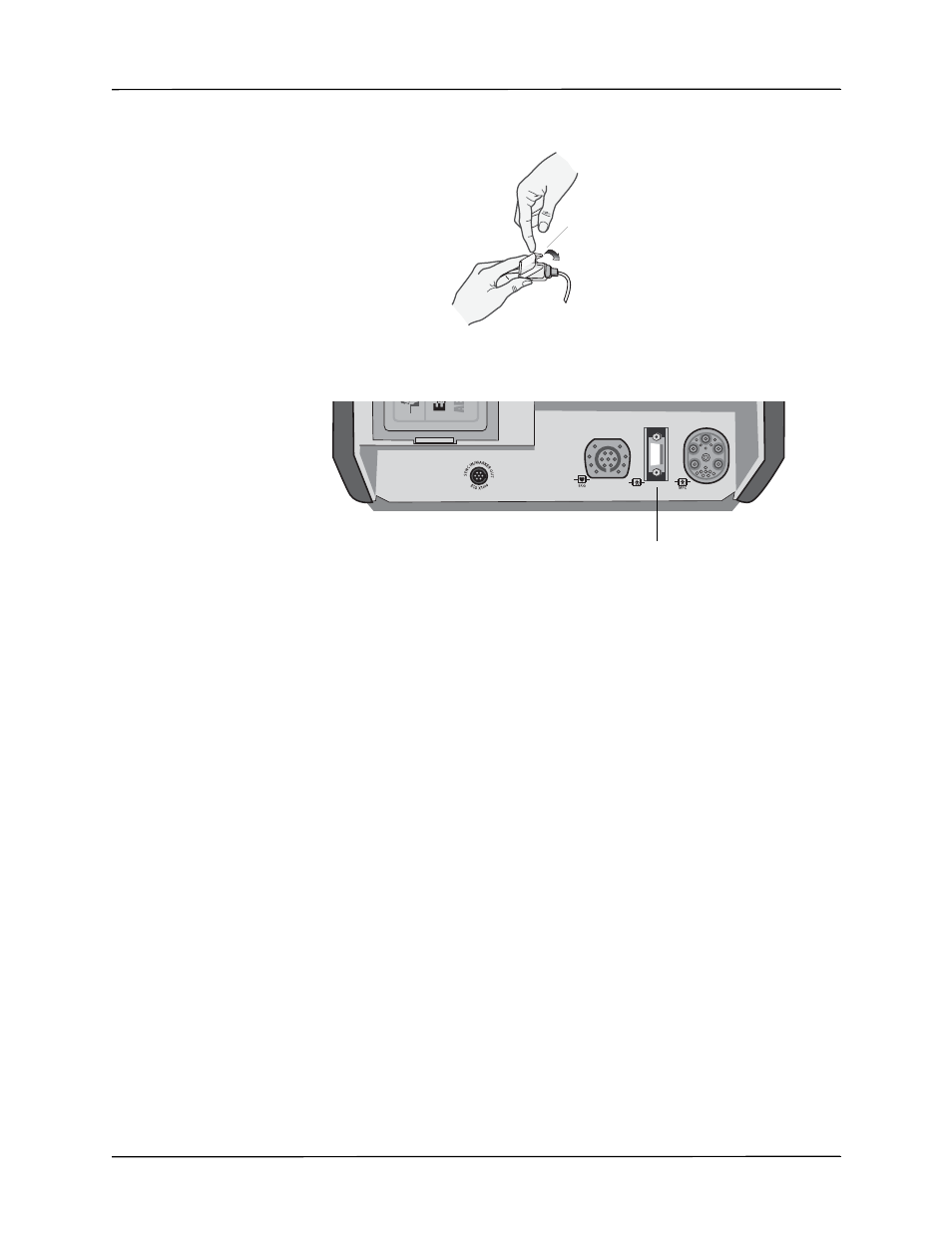

Clear Protective
Cover
3P/
SpO
2
Cable Connector
