ZOLL R Series Monitor Defibrillator Rev D User Manual
Page 10
R S
ERIES
— P
ULSE
O
XIMETRY
(S
P
O
2
) O
PTION
I
NSERT
8
www.zoll.com
9650-0901-01 Rev. D
3.

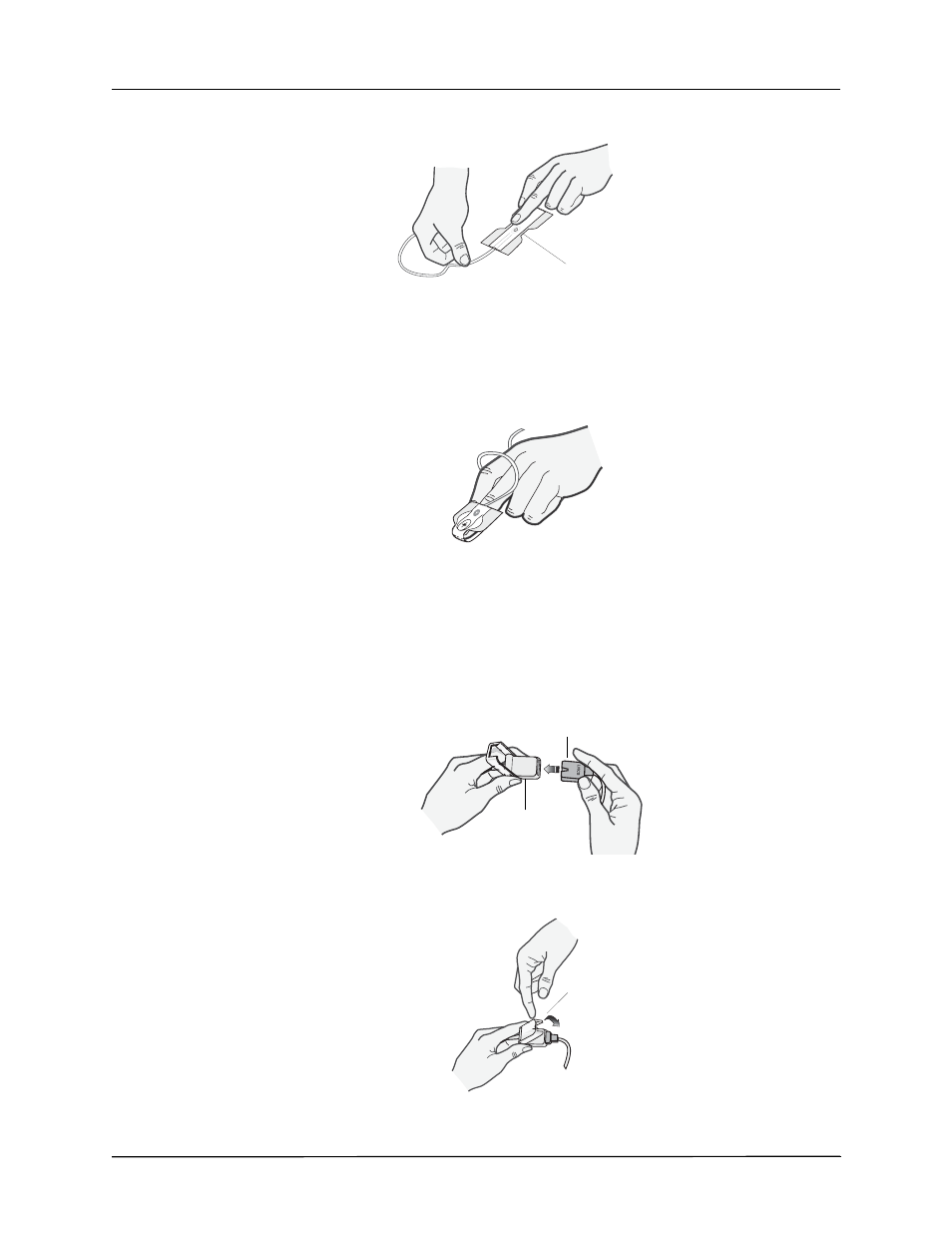

Orient the sensor so that the digit can be attached to the detector side of the sensor first.
4.
Press the detector onto the fleshy part of the finger near the tip of the finger. To ensure
accurate data, you must have complete coverage of the detector window.
5.
With the emitter positioned over the fingernail, secure the wings around the finger.
When positioned properly, the:
•
emitter and photodetector are vertically aligned
•
digit completely covers the photodetector window
•
connector tab is located on the top side of the finger
6.
Lift the clear plastic protective cover from the female end of the patient cable, then plug the
sensor cable’s male connector all the way into the patient cable connector.
7.
Lower the clear plastic protective cover over the connection to secure it.
Detector Window
Detector Window
Sensor Cable Connector
Patient Cable
Connector
Clear Protective
Cover
