APPENDIX A
MODEM AND PHONE SETUP
The M Series with 12-Lead option may include a modem for transmitting 12-lead ECG information to remote
locations via landline or cellular phone. This section describes how to connect your M Series unit for phone
transmission.
Modem
• When included, the M Series with 12-Lead option ships with the Viking Cellular Ready PC Card Modem
installed in the upper PCMCIA slot (domestic units only).
• The M Series with 12-Lead option is also available with a Psion WAN Global PC Card, or other approved
GSM card modem (obtained locally for international customers).
Note: Only the upper PCMCIA slot supports modem communication. DO NOT attempt to insert the modem
into the lower slot.
Note: The M Series does not support all PCMCIA type modems. Contact ZOLL Technical Support before
attempting to use modems other than those specified.
ZOLL Technical Support
Phone: (800) 348-9011
(781) 229-0020
C
B
A

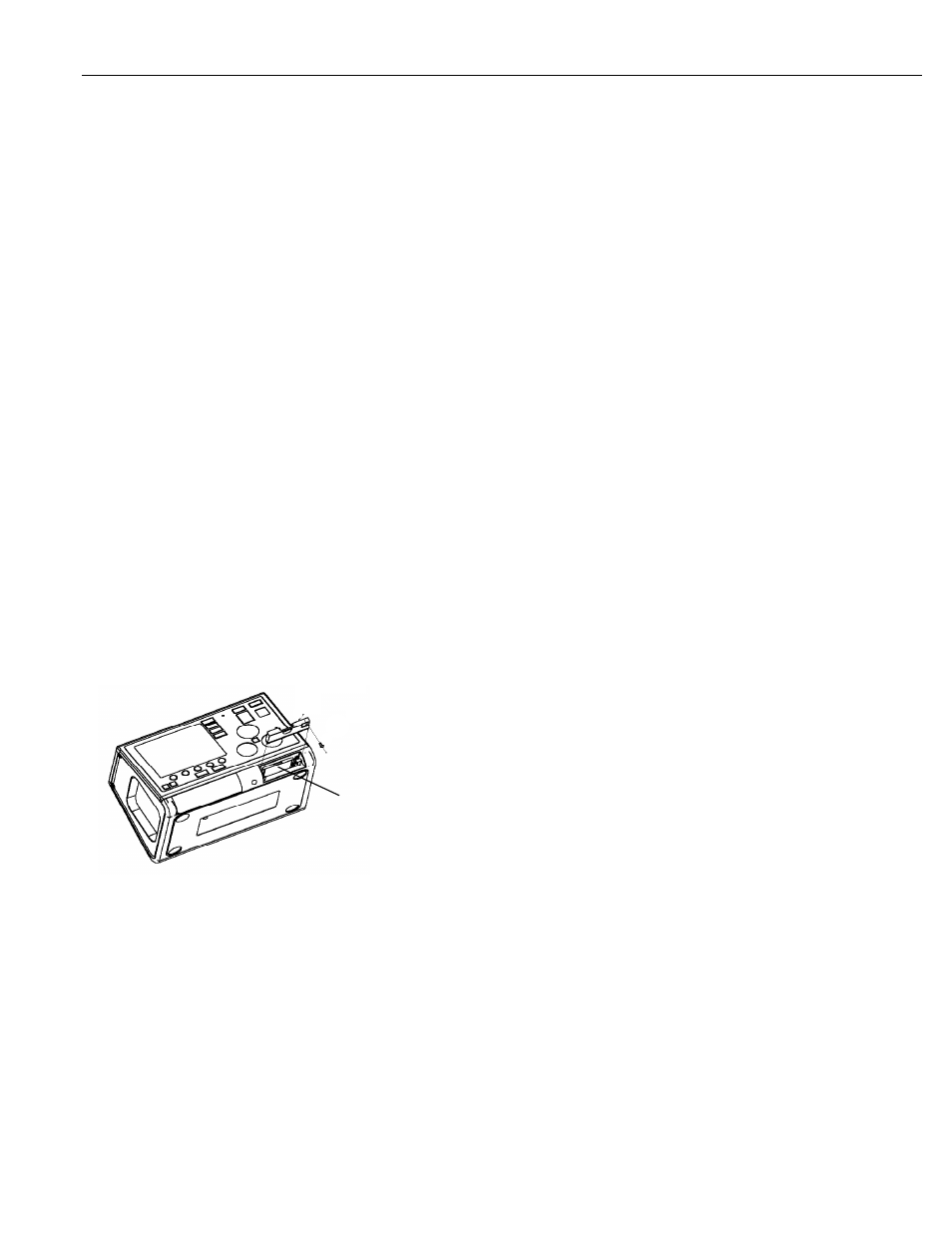

The modem can be removed for service or cleaning by removing screw B and sliding bezel A out of the
PCMCIA slot. The modem C is then removed by depressing the plunger to the right of the modem card until
the modem is free to slide out.
Cables
• Not all cell phones transmit ZOLL data reliably. See your local ZOLL Sales Representative for a list of ZOLL -
approved cell phones.
• A landline phone cable comes with modem equipped M Series units. This cable connects to the modem on
one end and plugs into a standard RJ-11 phone jack on the other end. The RJ -11 is compatible with POTS
(Plain Old Telephone System) phone lines such as those found in most residential homes or used for fax
machines.
M Series with Modem
