Transmission Setup: Sending Reports to a ZOLL Data Relay Server Via Dial Up Networking
9650-1218-01 Rev. B
15
Transmission Setup: Sending
Reports to a ZOLL Data Relay Server
Via Dial Up Networking
Note: This option requires configuration and setup by
ZOLL personnel.

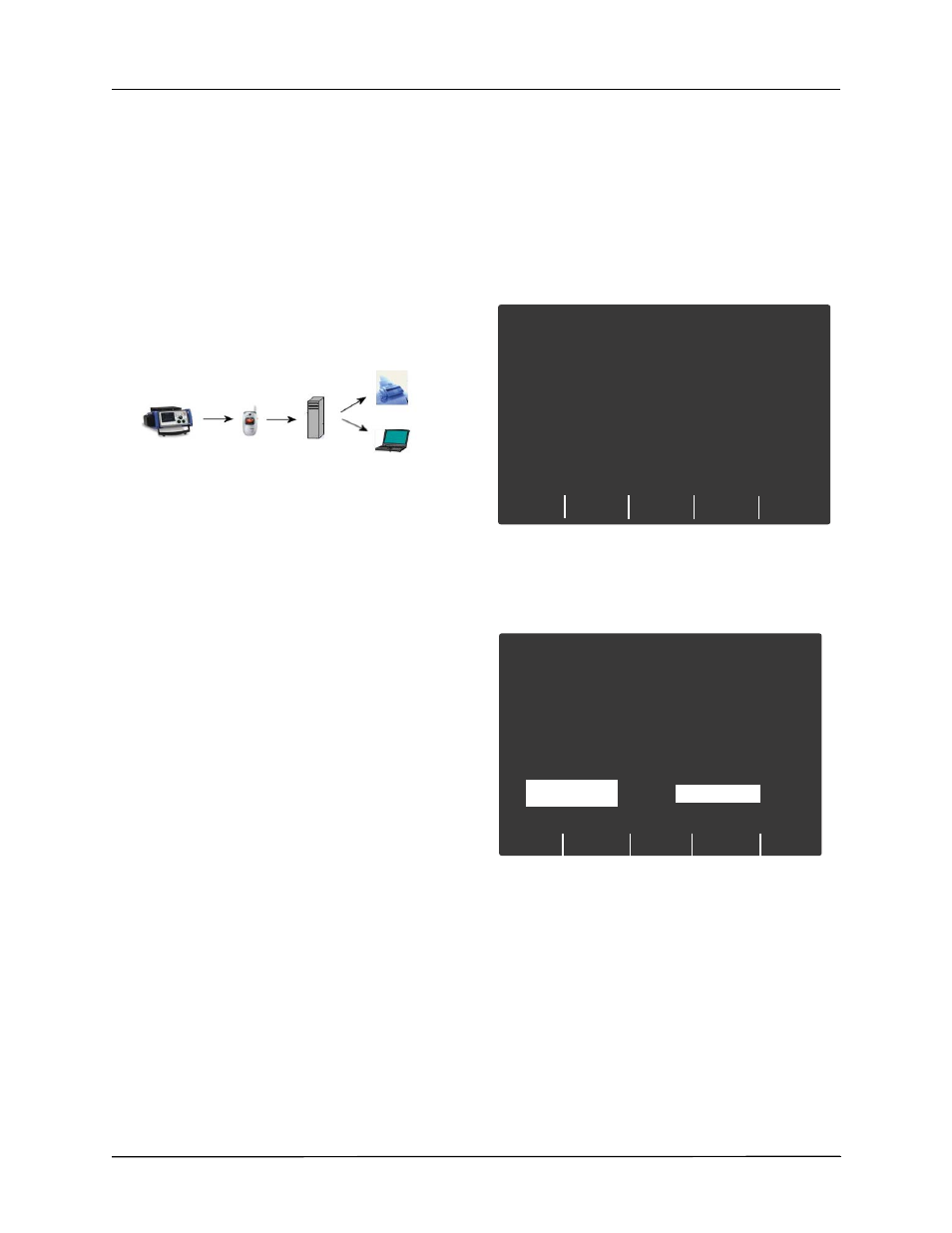

When the E Series unit transmits 12-lead ECG reports
using the ZDR server method (see page 8), it uses a
Bluetooth-capable cellular phone that supports Dial Up
Networking. The E Series unit must be set up to identify
the server to which the unit sends the report, which
destination is to receive the report, and how to connect
the cellular device to the internet service.
The E Series unit with the Bluetooth option must be
paired with a Bluetooth-equipped cellular phone for
successful transmission. Each E Series unit can pair
with up to 5 phones.
The E Series unit can be configured to transmit 12-lead
ECG records to a FAX machine, distribution list or single
e-mail address as an attached .pdf file.
Setting up a recipient contact list requires the following:
•
Entering the information to connect to a ZDR server
(up to 12)
•
Entering the contact information. A contact can be an
e-mail address, FAX number, or the name of a
distribution list that is stored in the server and used to
distribute the report to all entries (FAX and e-mail) on
the list. Up to 36 contacts can be entered (an
unlimited number of contacts can be entered in a
distribution list; see the ZOLL Data Relay System
Configuration Guide, version 5.00, for instructions on
how to set up a distribution list).
•
Forming a secure Bluetooth pairing between the
E Series unit and up to 5 cellular phones.
Note: Not all cell phones transmit data reliably. See
your local ZOLL Medical Corporation sales
representative for a list of approved cell phones.
Setting Up a ZOLL Data Relay Server
Entry
Before adding a server, you must obtain the necessary
server parameters from your ZDR server administrator
(IP address, port number, etc).
To configure your ZOLL Data Relay server on the
E Series unit:
1. Enter the System Configuration menu: first turn the
unit’s selector switch to OFF, and wait 10 seconds.
Then, simultaneously press and hold down the
right-most and left-most softkeys (below the monitor)
while turning the selector switch to MONITOR or ON
and continue to hold the softkeys for approximately 4
seconds. The unit powers on in System Configuration
mode. Enter the passcode (when you enter System
Configuration for the first time, enter the default pass
code of 00000000). Select the desired Language,
then press Enter.
2. Press the Change Config softkey. Use the
Prev Item and Next Item softkeys to scroll through
the items. Select Communications and then press
Enter. A menu appears; use the Change Value
softkey to modify the highlighted item.
3. Using the Prev Item and Next Item softkeys on the
screen, scroll to Bluetooth Net Server List and
press the Change Value softkey. The unit displays a
list of current servers.
Config
Change
Config
Exit
Config
Read
From
Card
Restore
Defaults
System Configuration
Retur n
Change
Value
1
System Configuration
COMM 1 of 2
Prev
Item
Next
Item
UPLOAD
BAUD RATE
BLUETOOTH
BAUD RATE
ENABLE
Data Relay
115200 bps
115200 bps
Yes
12-Lead
Report
Bluetooth
Device
ZDR
Server
FAX or
recipient
