ZOLL E Series Monitor Defibrillator Rev B User Manual
Page 13
12-Lead Reports
9650-1218-01 Rev. B
11
2x6 Format (Direct FAX Report Only)

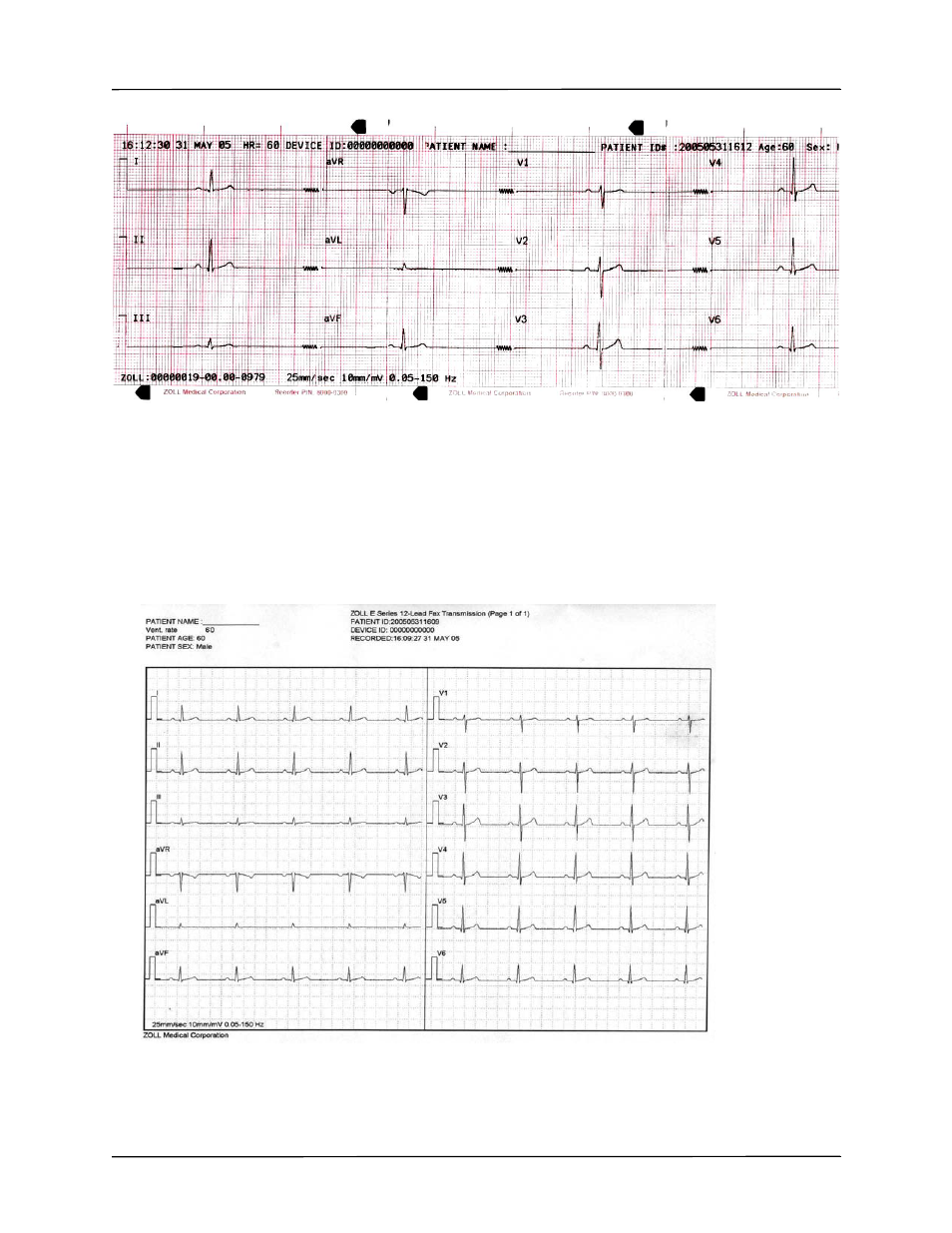

The 2x6 Format prints all 12-lead ECG data recorded during the first 5 second interval. The 2x6 format inhibits printing
of the 12SL analysis and the lead II rhythm strip normally printed on the FAX page. The stripchart always prints in the
4x3 format.
In order to FAX using the 2x6 format, set the 12 LEAD FAX FORMAT configuration option to 2x6, and the Auto
Transmit After 12 Lead configuration option to Yes. Refer to the E Series Configuration Guide for instructions on
setting these options.
Be sure to FAX immediately after acquisition, as the 2x6 FAX image is not stored in the patient records. Patient data
can, however, be reproduced in 4x3 format at a later time.
Note: This format is not available transmitted via FAX from a Bluetooth device and the ZOLL Data Relay server.
Direct FAX must be selected in the System Configuration menu (see page 17) in order to be able to send in
this format.
