WolfVision VZ-7D - Manual (Page 8)

Changing the lamp of the
Visualizer:
1. Remove the power cord of
the Visualizer.
2. Remove lamp housing glass.
(1 Screw)
3. Remove the safety clip
4. Change the lamp.
CAUTION: Hot when used!
Lamp type: Osram Dulux S/E
9W/21 or equivalent
1
2
1
m
m
(4
.8
")
3
1
0
m
m
(
1
2
.2
")
2
6
0
m
m
(
1
0
.2
")
1
1
3
m
m
(
4
.5
")
405 mm (15.9")
150mm (5.9")
5
8
0
m
m
(
2
2
.9
")
1
5
0
m
m
(5
.9
")
4
8
5
m
m
(
1
9
")
405 mm (15.9")
235mm (9.2")
8

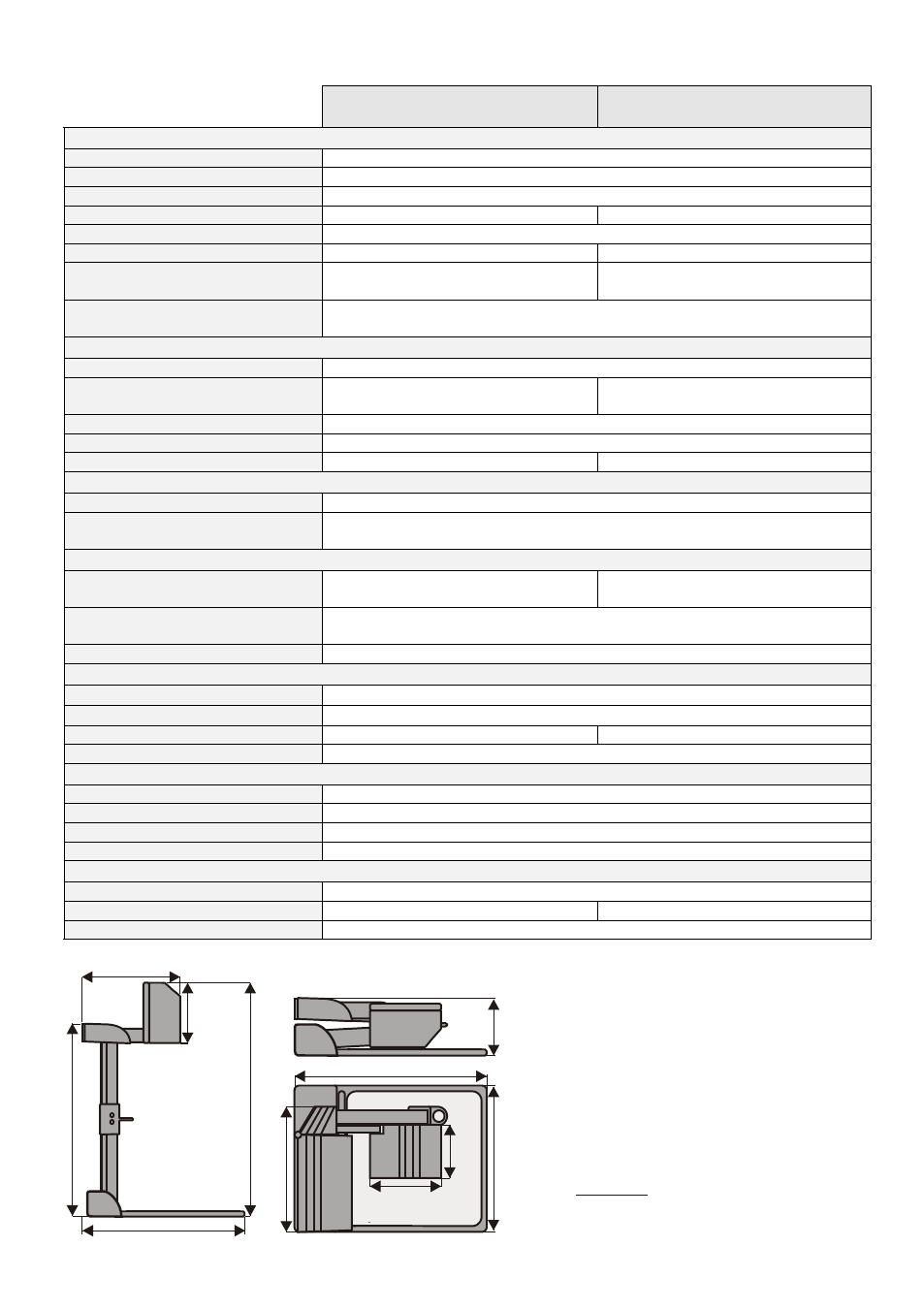

Technical data:
VZ-7D VZ-5F
Pick-up element / Video:
Built-in camera system: 1-CCD unit – ¼“ interline transfer
Effective pixels: PAL models: 752x582 / NTSC models: 768x494
Horizontal resolution: > 470 TV lines
Iris: automatic and manual automatic
Autofocus: dynamic high speed, on/off switch
White balance: automatic and manual automatic
Optics:
(F=4.1 - 73.8mm, f=1.4 ~ 3.0) 72x zoom
(18x optical + 4x digital)
18x optical zoom
Depth of focus:
(depth of field) 18mm (0.7”) on small picture, size: 42x33mm (1.7”x1.3”)
200mm (8”) on largest picture, size: 360x270mm (14.4”x10.8”)
Operation:
Camera control panel: functions: zoom in, zoom out, autofocus on/off
Infrared remote control:
included (functions: zoom, iris,
manual focus, presets, image on/off)
not available
Power and light controls: power on/off, light on/off or light on lightbox
Power-on preset: autofocus on, autoiris on, light on, pick-up size: 210x140mm (8.3“x5.5”)
Special drawer for slides: included not available
Lighting element:
Light source: high frequency fluorescent lamp
Light system:
light either on working surface or in front of the unit, no blinding of audience
or speaker, very low stray light
Scanning area:
Objects on working surface:
(length x width) min.: 5.5x4mm (0.24”x0.18”)
max.: 370x276mm (14.6”x10.9”)
min.: 22x16mm (0.9”x0.6”)
max.: 370x276mm (14.6”x10.9”)
Objects on working surface:
(height) up to 370mm (14.6”) in wide position – 130mm (5.1”) in tele position
Objects in a room: length, width and height to infinity
Connections:
Y/C (S-Video) output: 4-pin connector, Y-signal: 1Vpp 75
W, C-signal: 0.3Vpp 75W
Composite video output: RCA-connector, VBS-signal: 1Vpp 75
W
Serial control input: configuration: RS-232 not available
12V DC output: For external lightbox or LCD-monitor
General specifications:
Power consumption: max. 25VA
Power source: 12V DC
Made in: Austria (European Community)
Weight: Visualizer: 4.6kg (10lbs), power pack: 0.7kg (1.1lbs)
Accessories (Scope of supply):
Mains power pack: 90-240V AC / 12V DC, 1.5A
Carrying case (Soft case): with pocket for projector standard edition
Other supplied accessories: Y/C (S-video) cable, instructions, (VZ-7D: ir-remote control)
Specification and availability subject to change!
