Connectors (#3)
This is a combined manual for the
Visualizers VZ-7D and VZ-5F.
Pages 4-5 and 8 apply for both units.
The additional features of VZ-7D
are described on pages 6-7 and 24.
Setting up
Power-on Preset
#12 Composite video output (VBS)
#13 Y/C (S-video) output
#14 DC input (12 V)
#15 DC output for lightbox
#16 Serial control input RS232 (VZ-7D only)
#17 DIP switches (VZ-7D only) - see detailed
list on last page - experienced user only

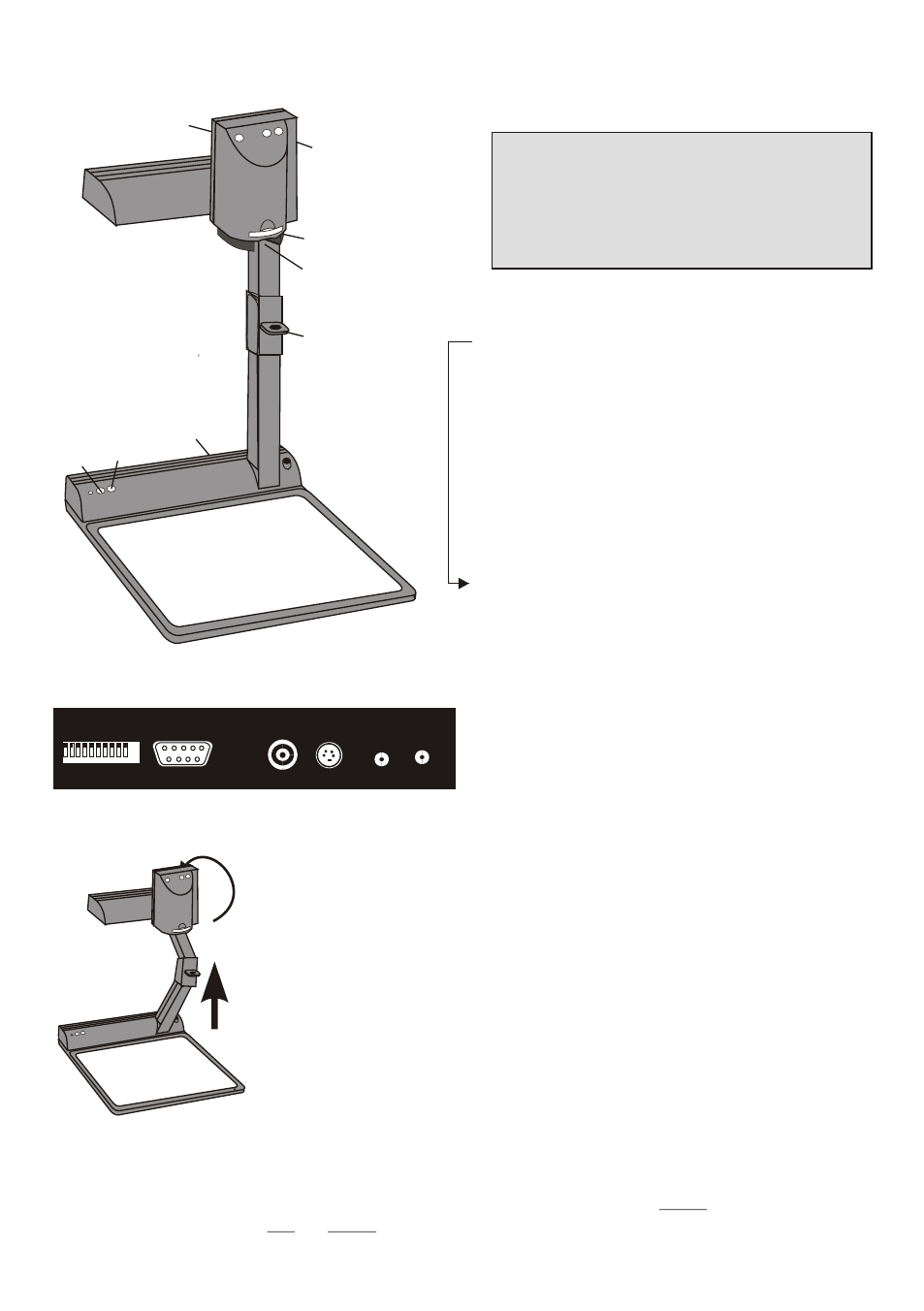

#1 Video camera head
#2 Light
#3 Connectors (on the back, see below)
#4 Working surface
#5 Power on/off key
#6 Light key
#7 Close up lens for camera
#8 Pull ring
#9 Auto focus on/off key
(a light above this key shows
that the auto focus is on)
#10 Zoom keys
#11 Slide drawer (VZ-7D only)
12 12 13 13 14 14 15 15 16 16 17 17
POWER LIGHT Y/C VIDEO SETTINGS RS 232 7
1 2 3 4 5 6 7 8 9 10
OFF
ON
4
7
9
10
8
3
5
6
2 2
4
1 1
11
ENGLISH
1. Pull the arm upwards using the special pull ring (#8)
2. Turn the video camera head (#1) and point it at the working surface
3. Connect the power adaptor to the DC-input (#14).
4. Connect a TV-monitor, a video projector or a video recorder to
the video output (#12) or the Y/C-output (#13)*
5. Switch on the Visualizer with the power switch (#5)
The power-on preset is automatically activated when switching on
the unit. The settings are: Zoom size approx. 20 x 15 cm (A5),
Autofocus on, Autoiris on, Image on
* The picture quality is much better if you use the Y/C (S-video) output (#13) rather then
the composite video output (#12). Especially with typed material in black and white. When
using the composite video output please make sure that a dedicated video cable (75
with
RCA plugs is used, and not an audio cable with RCA plugs !!!
W)
