Win-Holt PLSQ Series Dunnage Racks - Manual (Page 3)

S
HEL
VING
P
AGE
58
800.444.3595 I 516.921.0538 fax I www.winholt.com

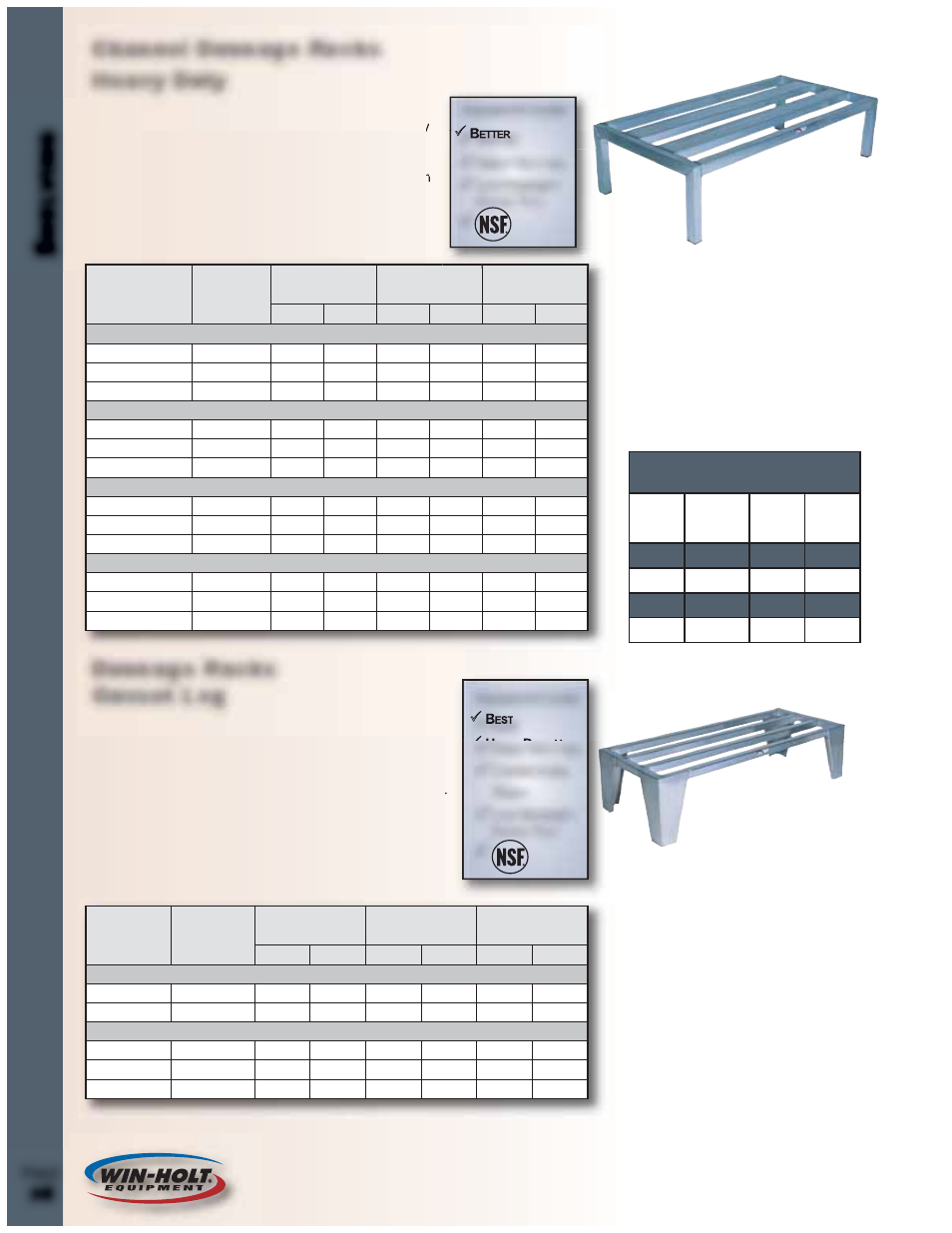

Dunnage Racks
Gusset Leg
Tubular construction allows for air circulation.
Compiles with all sanitary health codes.
Gusset legs support heavy loads.
Shipped set-up ready to use.
All welded heavy duty, rustproof aluminum construction.
Extra strength gusset leg is designed for heavy loads.
Also available in Electroplated Steel with a minimum
order of 50 units.
Optional 1" Safety Flanged Foot.
Model
Number
Ordering
Number
Length Capacity
Approx.
Ship Weight
(in) (mm) (lb) (kg) (lb) (kg)
Aluminum - 20" (508mm) Width x 12" (305mm) Height
DRAL-3-1220
103472 36 914 3,000 1,335 11 5
DRAL-4-1220 103499 48 1,219 2,500 1,113 14 6
Aluminum - 24" (610mm) Width x 12" (305mm) Height
DRAL-3-1224
103481 36 914 3,000 1,335 11 5
DRAL-4-1224 103501 48 1,219 2,500 1,113 14 6
DRAL-5-1224 103528 60 1,524 2,000 890 15 7
Channel Dunnage Racks
Heavy Duty
Prolongs product life by circulating air underneath.
12" (305mm) height off the ground meets all sanitary
health codes.
Channel Dunnage Racks—supports high capacity
loads on all welded 1¾" x 1½" heavy duty aluminum
tubular frame with 4" E-Channels.
Stands up to tough use with all welded construction.
Model
Number
Ordering
Number
Length Capacity
Approx.
Ship Weight
(in) (mm) (lb) (kg) (lb) (kg)
20" (508mm) Width x 12" (305mm) Height
ALCH-3-1220 207263 36 914 3,000 1,361 11 5
ALCH-4-1220 207271 48 1,219 2,500 1,134 13 6
ALCH-5-1220 207280 60 1,524 2,000 907 15 7
24" (610mm) Width x 12" (305mm) Height
ALCH-3-1224 207298 36 914 3,000 1,361 11 5
ALCH-4-1224 207301 48 1,219 2,500 1,134 13 6
ALCH-5-1224 207319 60 1,524 2,000 907 15 7
20" (508mm) Width x 8" (203mm) Height
ALCH-3-820 207327 36 914 3,000 1,361 11 5
ALCH-4-820 207335 48 1,219 2,500 1,134 13 6
ALCH-5-820 207343 60 1,524 2,000 907 15 7
24" (610mm) Width x 8" (203mm) Height
ALCH-3-824 207351 36 914 3,000 1,361 11 5
ALCH-4-824 207360 48 1,219 2,500 1,134 13 6
ALCH-5-824 207378 60 1,524 2,000 907 15 7
B ETTER
H EAVY D UTY U SE
L IFE W ARRANTY
A GAINST R UST
Equipment Guide
Freight Class: 70
B
EST
H
EAVY
D
UTY U SE
C
ORRECTIONAL
R EADY
L IFE W ARRANTY
A GAINST R UST
Equipment Guide
Freight Class: 70
ALCH Series
Tubular Frame with
4” E-Channels
DRAL Series
Gusset Legs for
Heavy Loads
In line with our policy to continually improve our
products, Win-Holt reserves the right to change
materials and specifications without notice.
W
IN
-H
OLT
D
UNNAGE
R
ACK
C APACITY G UIDE
Series
36”
Length
48”
Length
60”
Length
DASQ 2100 lb 1800 lb 1500 lb
ALSQ 3000 lb 2500 lb 2000 lb
ALCH 3000 lb 2500 lb 2000 lb
DRAL 3000 lb 2500 lb 2000 lb
