WARN WIRELESS CONTROL SYSTEM 90287 User Manual
Page 5

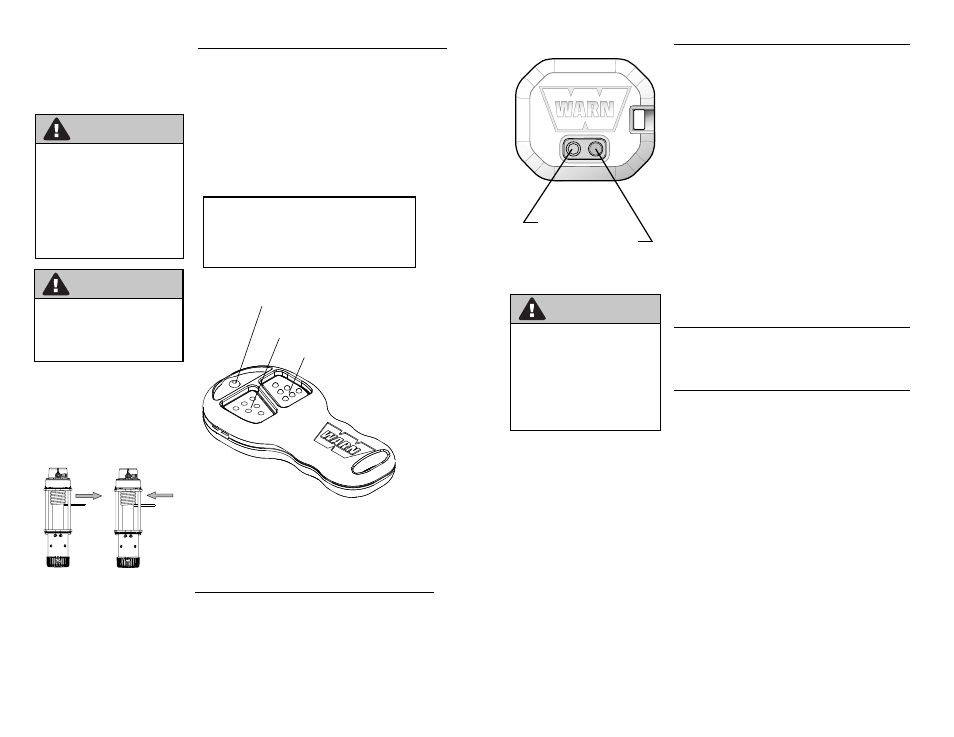

8
OUT
IN
LED indicator light
Power IN
Power OUT
Press and hold
both buttons
for 3 seconds
to activate the
wireless system.
TROUBLESHOOTING
If the winch does not power in or out when remote buttons
are pushed:
1. Check that the wireless system has been activated
(GREEN LED on remote is ON).
2. Check that receiver is securely plugged into the control
pack “D” plug.
OPERATION
LED Indicator Light
Steady GREEN - system active and ready to use
Steady RED - winch powering in or out
Flashing RED during winching - battery low
Turn On Sequence:
1. Activate the system by pressing both buttons on the
wireless transmitter simultaneously and holding for 3
seconds until GREEN light illuminates.
2. The winch system is now operational.
3. Press the power IN or power OUT button as needed.
Turn Off Sequence:
1. Deactivate the system by pressing both buttons on
wireless transmitter simultaneously and holding for 3
seconds until GREEN light turns off.
Press and hold
both buttons
for 3 seconds to
deactivate the
wireless system.
C A U T I O N
TO AVOID MINOR OR
MODERATE INJURY:
• Always be aware that obstacles
and other radio transmission sources
may affect performance.
• Always insure the matching WARN
transmitter is closer to its receiver
than other transmitters in use during
winching.
This WARN Wireless Control
System has been designed
to minimize interference
from other sources of radio.
C A U T I O N
TO AVOID MINOR OR MODERATE
INJURY:
• Always use wired remote when
intermittently “jogging” winch.
9
Programming LED
Programming button
PROGRAMMING THE RECEIVER
The hand held remote (transmitter) is programmed from
the factory to communicate with your specific receiver.
Under normal circumstances programming will not be
necessary. However, any replacement remote must be
programmed to communicate with your receiver. Use the
following procedure:
1. Insure the system is properly installed and connected.
2. Activate the new remote by pressing and holding both
buttons on the wireless handheld remote until the
GREEN LED illuminates.
3. Press and hold the receiver programming button for
at least five (5) seconds until the RED LED on the
receiver illuminates and stays on.
4. Release the programming button.
5. Press the power OUT button on the remote for at least
one (1) second until the RED LED on the receiver
turns off. Programming is now complete.
NOTE: Only one remote can be programmed for each
receiver.
WARRANTY
Please refer to the warranty sheet enclosed with your
winch for details.
REPLACEMENT PART NUMBERS
Ordering information: Parts may be obtained through your
local dealer or distributor.
Part Number
Description
PN 90289
Receiver Module
PN 74524
Holster
PN 74520
Replacement transmitter (Remote)
The above list represents the most commonly requested
replacement parts. A full listing of replacement and
service parts are available. Check with your WARN
authorized dealer or on the web: www.warn.com
W A R N I N G
TO AVOID
SERIOUS INJURY OR DEATH:
• Never attempt to service
components inside transmitter or
receiver.
• Always consult an authorized
WARN service center for service or
warranty.
