OVERVIEW
The WARN Wireless Control gives you the ability to
operate the winch using a wireless hand held remote. The
wireless control system integrates with a standard winch
control pack so that the operator may use either the wired
or wireless controls at any time.
To use the wireless system, the operator first activates
the system by pressing and holding both buttons on the
wireless remote for 3 seconds. This transfers control of
the winch to the wireless control system. The GREEN
indicator light on the handheld remote glows when the
system is active and ready to use. Deactivate the system
by pressing both buttons on the wireless transmitter
simultaneously and holding for 3 seconds until GREEN
light turns off.
After 2 minutes of idle time, the wireless system
de-activates.
SAFETY
When installing your winch and winch control system,
read and follow all mounting and safety instructions.
Always use caution when working with electricity and
remember to verify that no exposed electrical connections
exist before energizing your winch circuit.
SPECIFICATIONS
Part numbers for complete system:
PN 90287 - Wireless control system (Truck/Utility)
Transmission range:
Up to 90 ft. (27m)
Receiver Operating voltage:
12 to 24 VDC
Receiver Fuse type and current rating:
ATC 7.5 amp
Batteries for hand held remote:
two alkaline, 12 volt, type 23

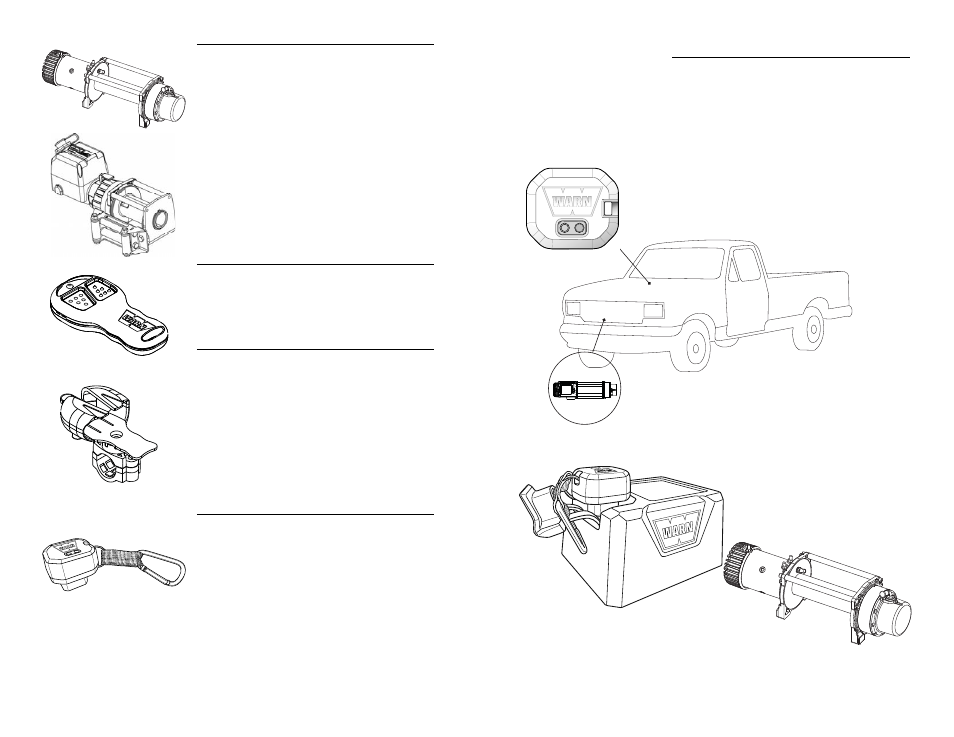

WIRELESS CONTROL
KIT INCLUDES:
Wireless Receiver (1)
Wireless Transmitter (1)
Holster Assembly (1)
5
STEP 1: MOUNT ALL WINCH
COMPONENTS
First install the winch and control pack. Then install the
wireless control system.
Location for these components may differ from the
illustration depending on make and model of the vehicle.
Read and understand the instructions to choose the
appropriate mounting locations.
Receiver
Receiver on Control Pack
Winch
Winch
