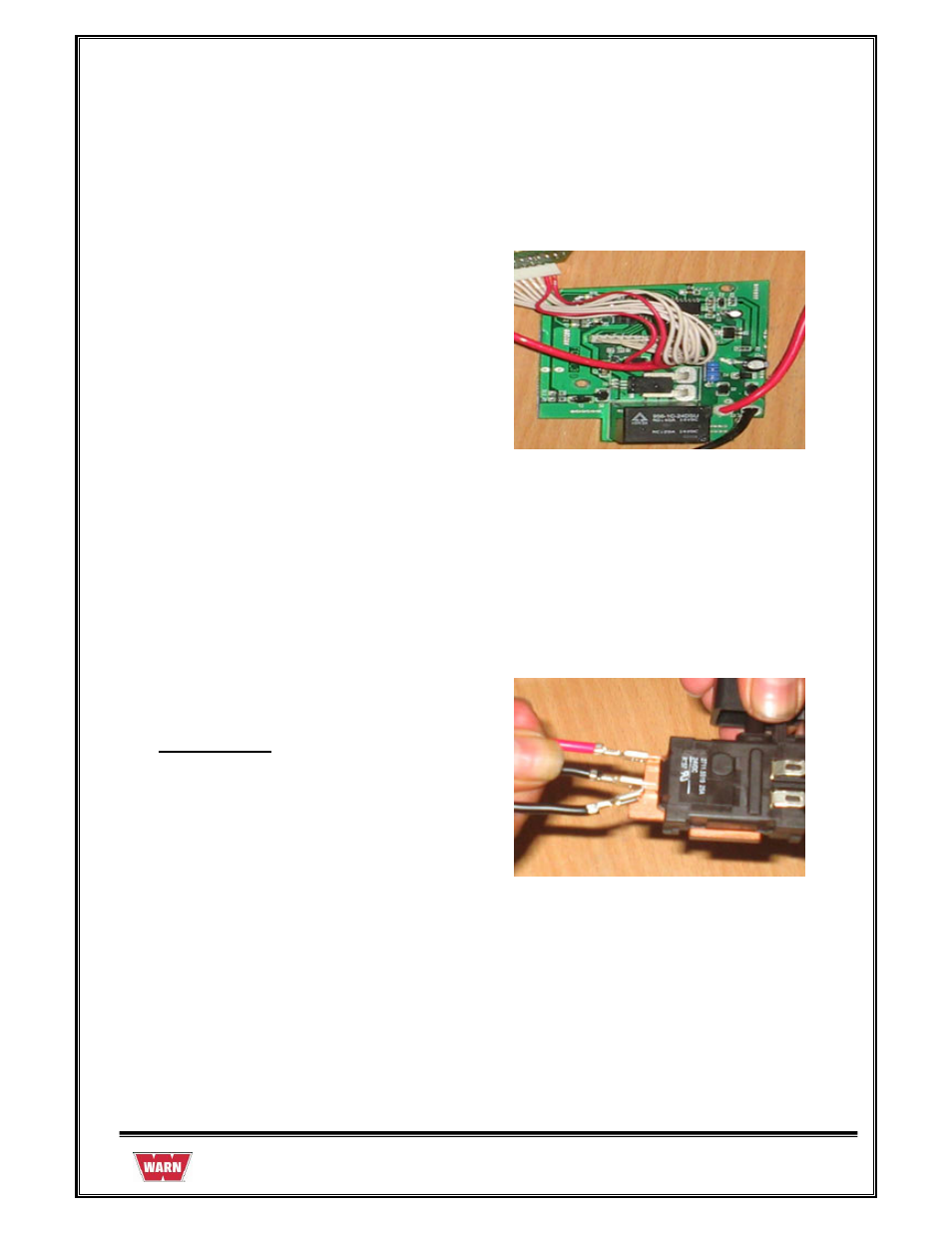

5. Route Red Lead Wire (soldered to Male

Terminal Support) from J2 Terminal on
Circuit Board through wire guides up to
rear of Housing to where the Male
Terminal support is mounted.















Trigger Switch


6. Route Red Lead Wire from J3 and J4

Terminal on Circuit Board through wire
guides up in to handle to Trigger Switch
