Vestil NE-CART User Manual
Page 27
E-CART (ELECTRIC CART)
27
Filename: Belly Switch trouble shoot

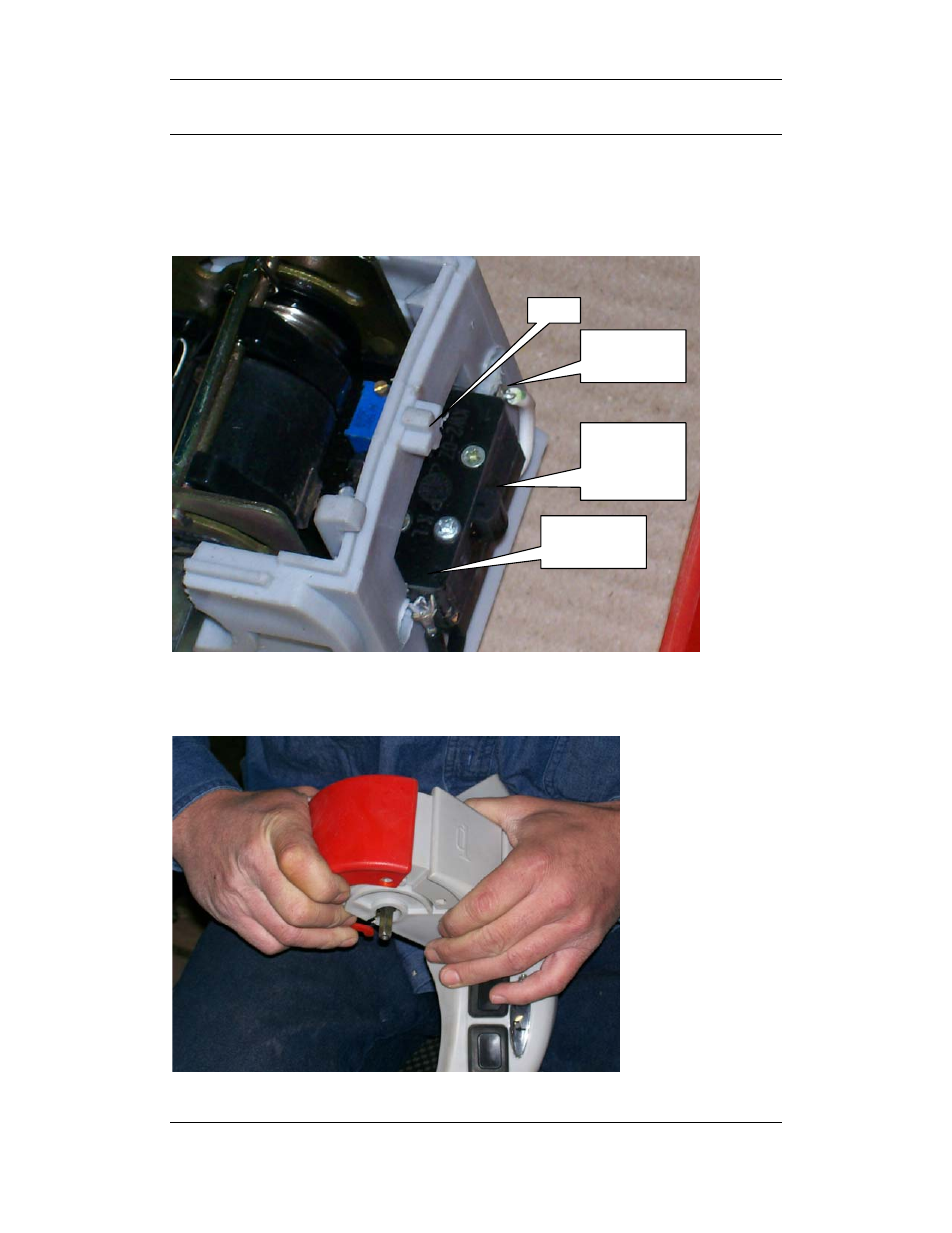

Another picture of the nub, spring not shown. At this point, verify the solder joints are in tact and
the two wires are attached to the switch as shown below. Also verify the belly switch is not stuck
in. You should be able to push on the switch and the actuator will move freely in and out, you
should here a click as you do this. If the switch is stuck in contact Vestil Manufacturing for
replacement options. Fig17
Fig.17
Replace any broken/missing components. To assemble, press the red belly switch cover back on
the tiller head seating the red holes over the gray nubs. Basically the opposite of the procedure in
Fig. 17, but without a screwdriver. Fig 18
Fig.18
Belly Switch
actuator
Solder
connection
Solder
connection
