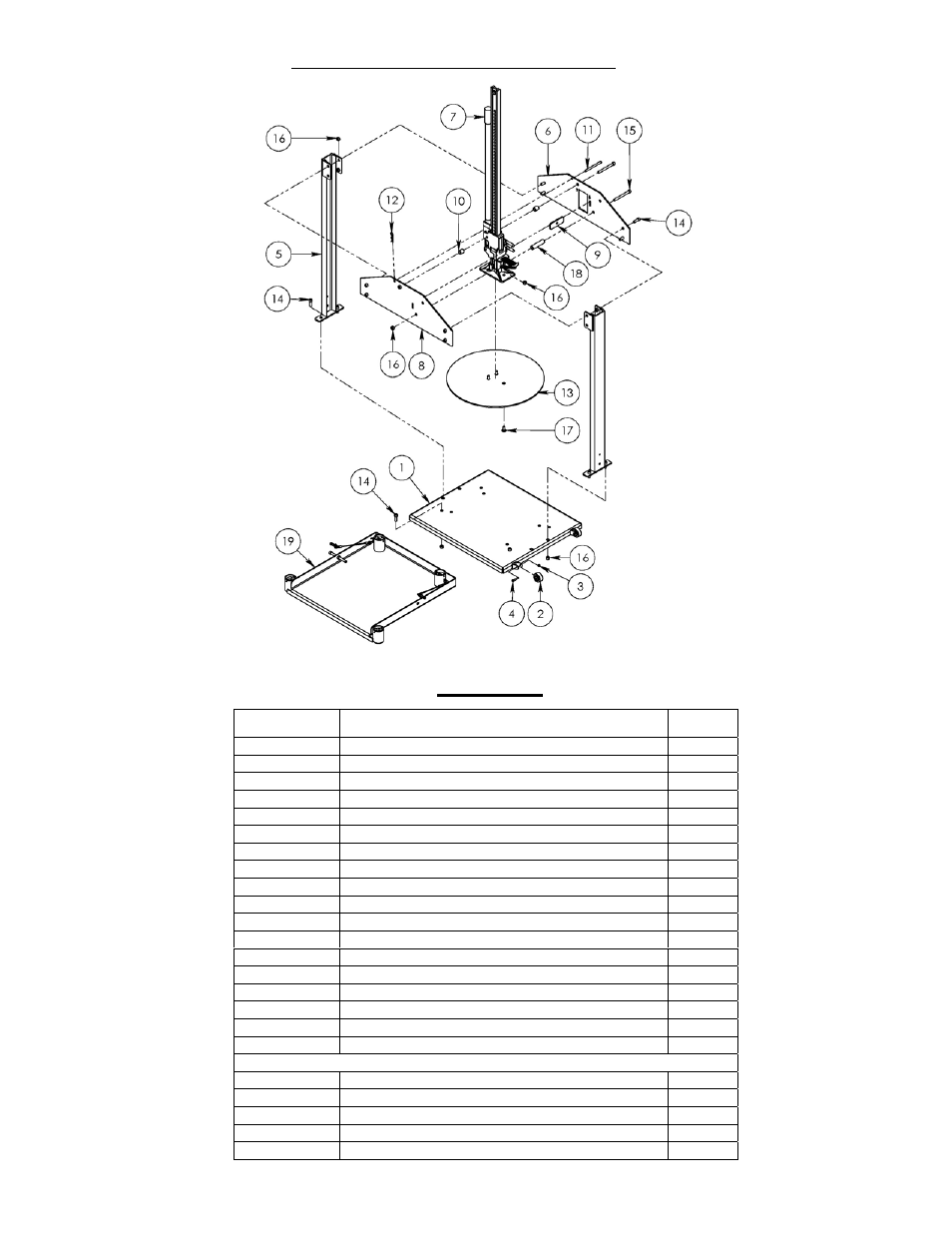

Exploded Parts Diagram & Parts List
P
ARTS
L
IST
ITEM NO.
DESCRIPTION
QTY.
1 BASE
WELDMENT
1
2
WHEEL, Ø2" X 7/8" X 1/4" BORED RUBBER
2
3
NYLOCK NUT, Ø1/4-20 UNC Z-PLATED
2
4
BOLT, HHCS #2 Z PLATED, Ø1/4 - 20 UNC x 1 1/2" LG
2
5
VERTICAL SUPPORT WELDMENT
2
6
BRACKET, FRONT JACK SUPPORT
1
7 JACK
ASSEMBLY
1
8
BRACKET, BACK JACK SUPPORT
1
9 JACK
CENTER
SUPPORT
1
10
JACK SPACER (15/16” LONG)
2
11
PIN, CLEVIS
1
12
#7 HITCH PIN CLIP
1
13 COMPACTOR
PLATE
1
14
BOLT, SHCS - 7/16-14 x 1 1/4"
14
15
BOLT, SHCS - 7/16-14 x 4 1/2"
2
16
NYLOCK NUT Z PLATED, Ø7/16 - 14 UNC
19
17
BOLT, CARRIAGE 7/16-14UNC x 1" LG. ZINC
3
18
JACK SPACER (3 ½” LONG)
1
MTC-RB ONLY BELOW, IN ADDITION TO ABOVE
15
BOLT, SHCS - 7/16-14 x 4 1/2"
1
16
NYLOCK NUT Z PLATED, Ø7/16 - 14 UNC
1
19 TRAY
ASSEMBLY
1
20
BOLT, SHCS - Ø1/4-20 UNC X 3/4”
2
21
LOCK WASHER, Ш 1/4"
2
