Vestil PST series User Manual
Page 8
8

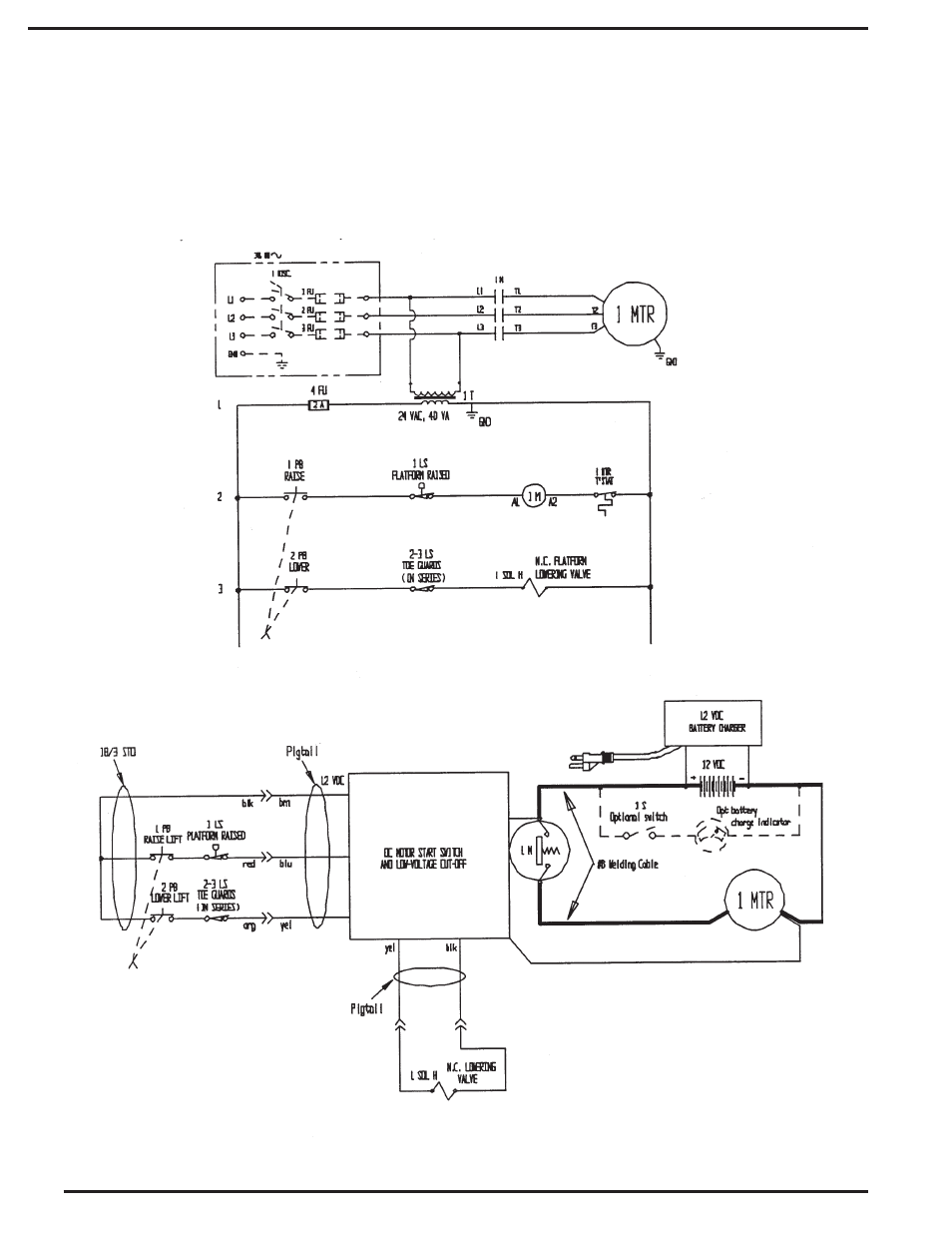

ELECTRICAL DIAGRAM - EHLT & PST
Warning: Care should be taken to identify all potential hazards and comply with applicable safety procedures before
beginning work. Fully lower or securely support the platform, and ensure that system pressure and power have
been removed, before attempting to work on any of the hydraulic components!
Only qualified individuals trained to understand mechanical devices and their associated electrical and hydraulic
circuits should attempt troubleshooting and repair of this equipment.
