4 ABB
ODIN Meter
OD4165 direct connection, 3 phase meter up to
and including 65 A
Technical Data
Voltage:
3x230/400 V AC
Voltage range -20% to +15%
Max current 65 A
Start current 25 mA
Power consumption of current circuits < 3 VA/phase
Frequency 50/60 Hz
Accuracy of measurement Class 2 (±2%)
Standard IEC 61036
Temperature range -25 to +55 o C
Material of front cover Polycarbonate
Material of back cover Polycarbonate/glass fibre
Resistance to heat and fire Equivalent to IEC 695-2-1
Protection against penetration of dust and water IP 20
Connection area in the current connecting terminals 1 – 16 mm 2
Pulse output
Connection area in the connecting terminal 0.5 – 2.5 mm 2
External pulse voltage 5 – 40 V DC
Max. current 100 mA
Pulse length 100 ms ±2.5 ms
Pulse frequency 100 imp/kWh
Standard IEC 62053-1 (S0)
LED
Pulse frequency 100 imp/kWh
Pulse length 40 ms
Display LCD with 7 digits without a
decimal place, 6 mm
Article number Type Voltage (V) Pulse output frequency
2CMA131024R1000 OD4165 230/400V 100 imp./kWh
St375010
St375004
OD4165
Drestromzahler 5(65)A Kl.2
Electricity meter 5(65)A Cl.2

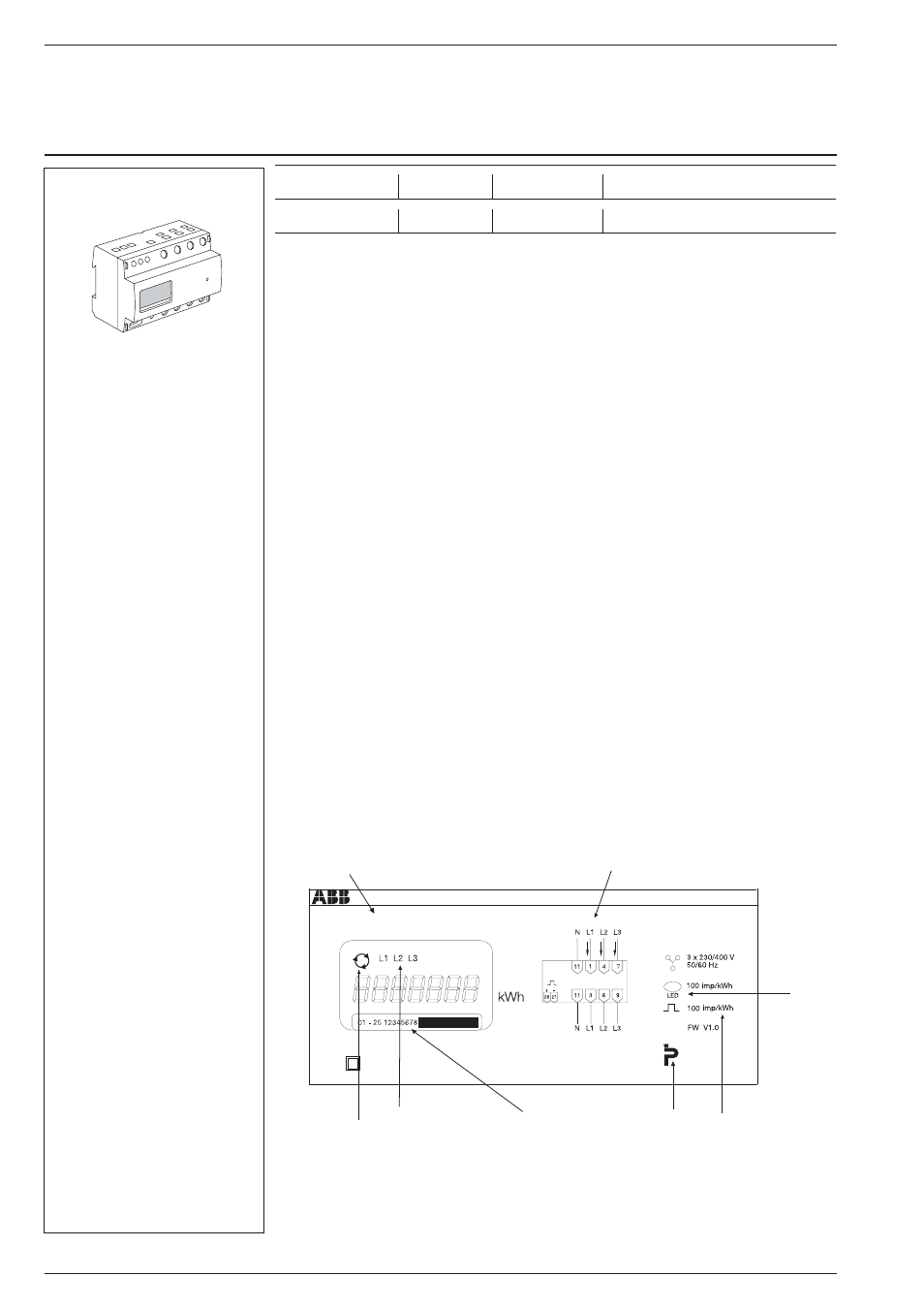

Front view
Direct connection
Type description
Load indicator
Pulse output
frequency
LED
frequency
National approval
symbol (SP) Phase indicator Identification No.
Wiring diagram
