10 IQ3xact Web Enabled Controller Installation Instructions TG200766 Issue 2 21/04/08
IQ3xact Installation Instructions

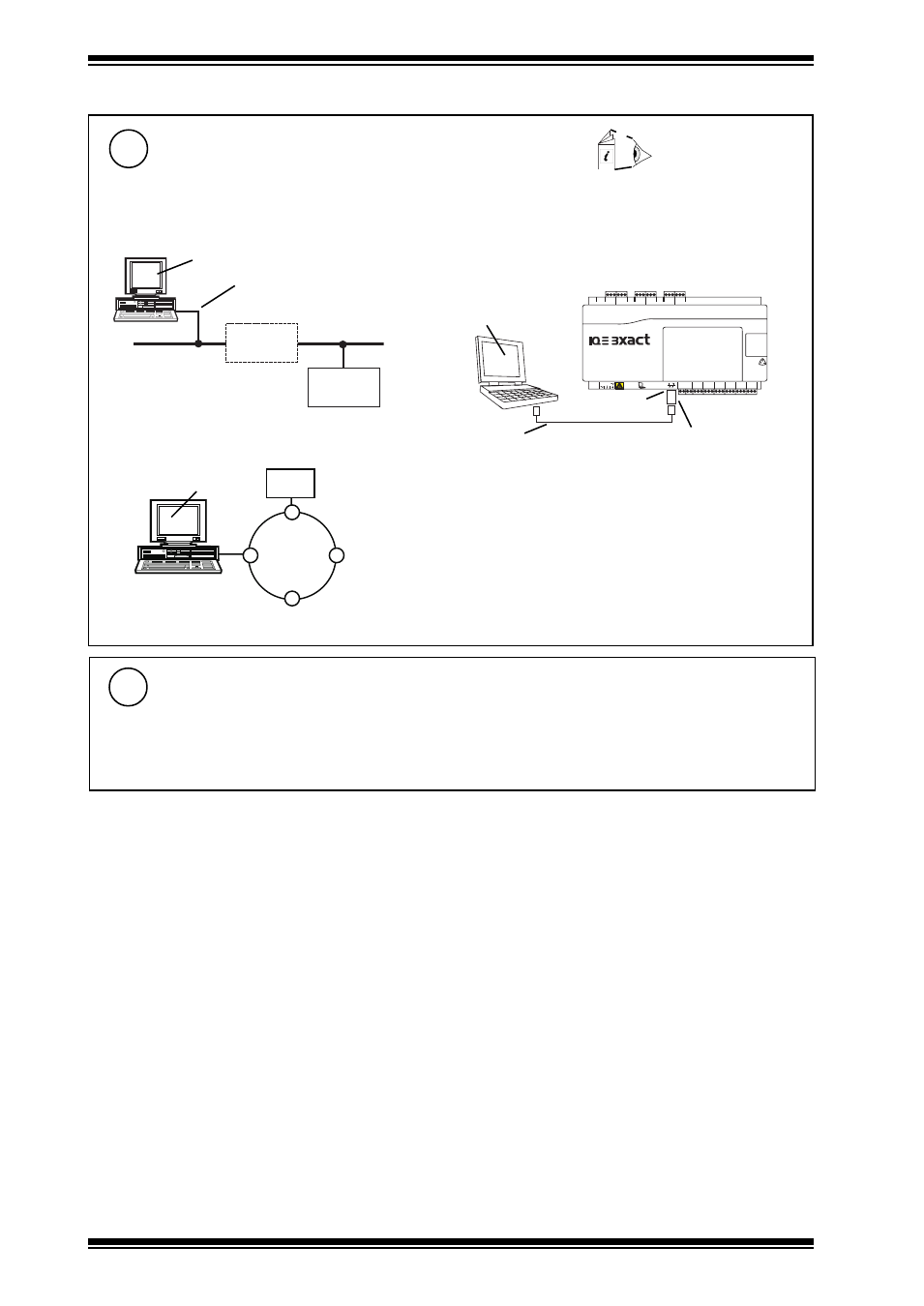

Configure IQ3
22
Router
IQ3
Ethernet
either o r
Note that downloading IQ3 strategy file is possible through the IQ3’s virtual CNC once the virtual CNC address is set
up, and if IP addressing is set up correctly in both PC and IQ3.
SET v6.2
100-240 V OK RX
RJ45
SET Manual TE200147
IQ3 Configuration Manual
TE200768
SET v6.2
XCITE/XA crossover adaptor
order separately (XCITE/XA/5 pack of 5)
local PC (Ethernet) connection can be either to adjacent
Ethernet hub using standard cable only, or directly to IQ3
using standard cable and crossover adaptor, XCITE/XA.
Note that for SDU-xcite, local supervisor port address
should be zero, and if SDUlengths must be restricted to 20 characters; SDU-xcite
v1.01 truncates labels to first 20 characters.
Note that for RD-IQ, local supervisor port address should be
zero, and by default the following strategy items are used:
Local temperature; S9, Setpoint; K1, Occupation status; K6,
Fan speed status; K7. The items used can be changed using
RD’s buttons
Configure IQ3 strategy using SET and download strategy file and other
configuration files (language, backdrop, XNC (IQ3/XNC only) from SET
standard Ethernet connection
see section 3 step 5
standard Ethernet cable - see section 3 step 5
Either using Ethernet
Or using current loop Lan (IQ3/LAN only)
Note that only the strategy file can be downloaded using the current
loop Lan or RS232 port (not language, backdrop or XNC files)
SET v6.2 IQ3/LAN
current loop
Lan
4 Installation - Configuration
(continued)
Configure SET to browse the BACnet system as described in step 21 above.
Use SET to check that IQ3 BACnet functionality is operating by checking it appears correctly in the System View on its BACnet
network.
Check IQ3 on BACnet 23
If IQ3/BAC and BACnet protocol communications are required
