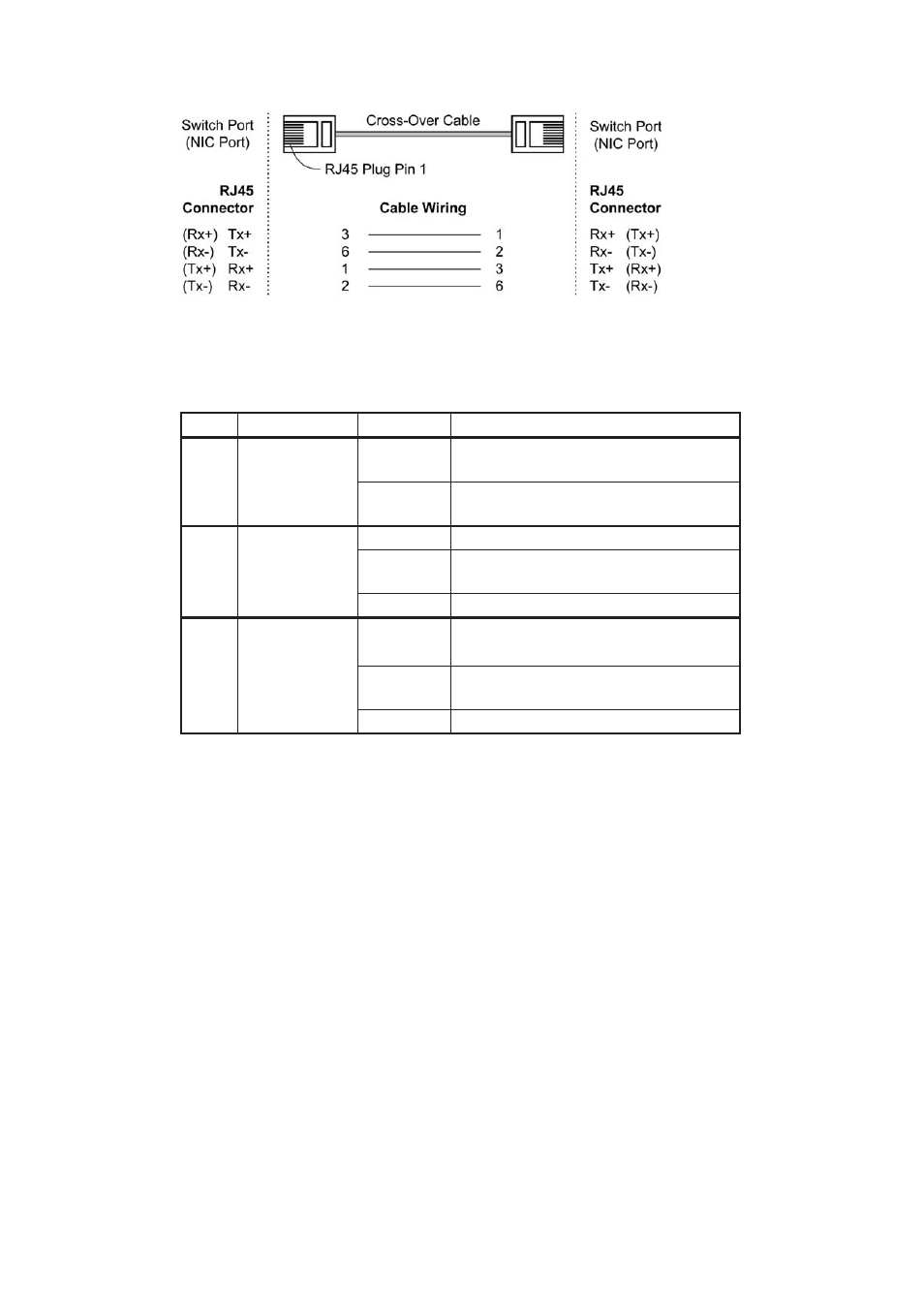

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring
LED Indicators
The front panel of MOXA EtherDevice Switch contains several LED
indicators. The function of each LED is described in the table below.
LED Color State Description
On
Power is being supplied to power
input
P AMBER
Off
Power is not being supplied to
power input
On TP port’s 10 Mbps link is active
Blinking
Data is being transmitted at 10
Mbps 10M
(TP)
GREEN
Off TP Port’s 10 Mbps link is inactive
On TP port’s 100 Mbps link is active
Blinking
Data is being transmitted at 100
Mbps
100M
(TP)
GREEN
Off 100BaseTX Port’s link is inactive
Auto MDI/MDI-X Connection
The Auto MDI/MDI-X function allows users to connect MOXA
EtherDevice Switch’s 10/100BaseTX ports to any kind of Ethernet
device, without paying attention to the type of Ethernet cable being
used for the connection. This means that you can use either a straight-
through cable or cross-over cable to connect EDS to Ethernet devices.
Dual Speed Functionality and
Switching
MOXA EtherDevice Switch’s 10/100 Mbps switched RJ45 port auto
negotiates with the connected device for the fastest data transmission
rate supported by both devices. All models of MOXA EtherDevice
Switch are plug-and-play devices, so that software configuration is not
required at installation, or during maintenance. The half/full duplex
mode for the switched RJ45 ports is user dependent and changes (by
auto-negotiation) to full or half duplex, depending on which transmission
speed is supported by the attached device.
