SDU-LON Installation Instructions TG200599 Issue 2, 6/10/08 3
Installation Instructions SDU-LON
+
l
c Connect to PC
LCI/USB
USB type B
SDU-LON
supplied with LCI/USB
USB type A
L ON W ORKS
network
SET,
SDU Tool

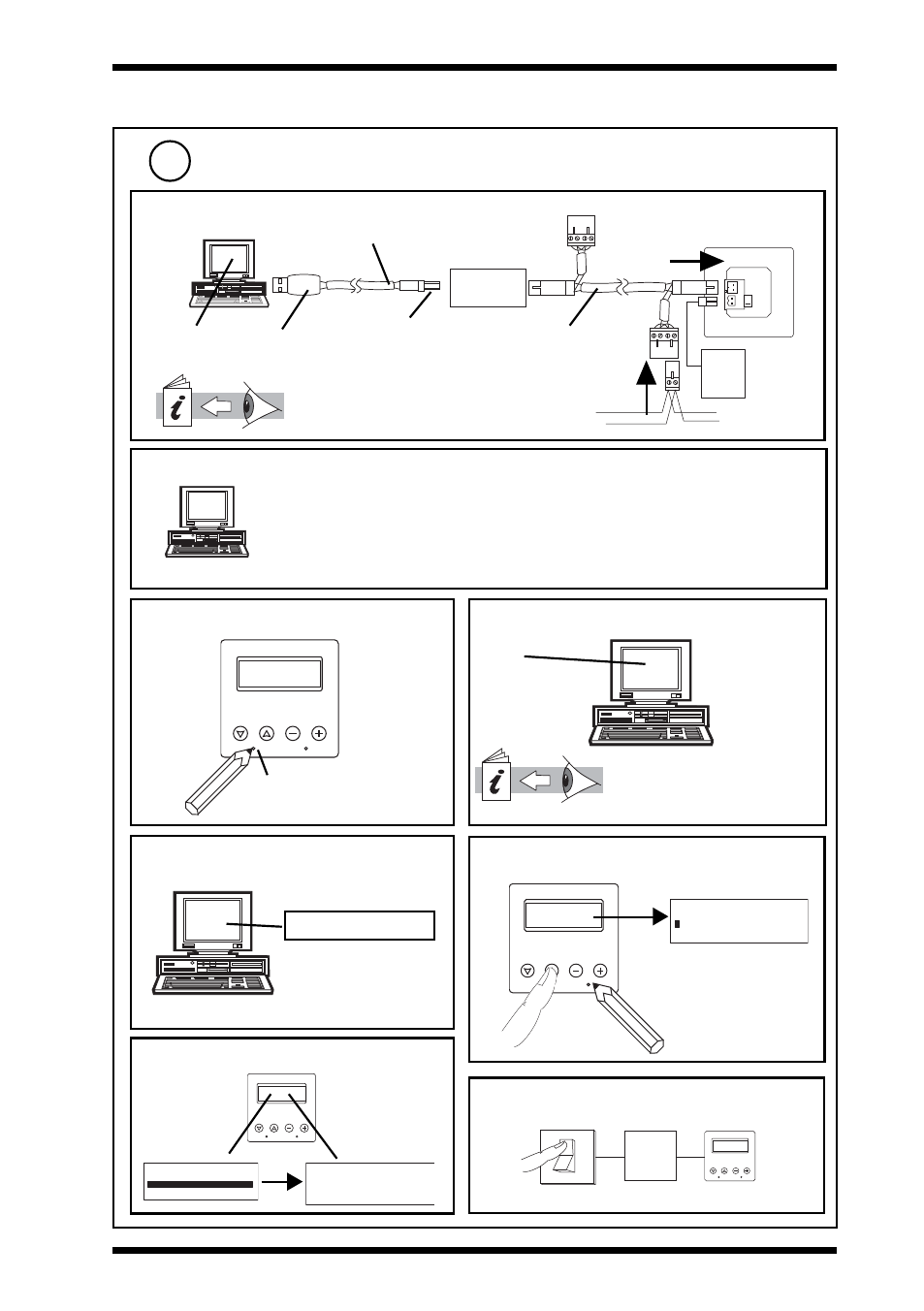

3 Installation (continued)
Configure SDU (continued) 6
LCI Installation Instructions
TG200429
d Set up SDU Configuration File
SDU Tool
Set up:
Mode Unrestricted/Restricted
Home Page Show/Don’t show
Restrictive mode list Select required modules
Language Translation of standard text
Backup File to Disk
S P E N G
1 2 3 4
SDU Data Sheet TA200559
SDU Tool Manual TE200600
SET
SDU Tool Select
Language
Download to
SDU
f Download Language
Download Complete
h Set SDU into Download Mode
S P E N G
1 2 3 4
Config Update
i Transfer Completed
S P E N G
1 2 3 4
Config Update
j Switch off Input Power
SP ENG
1 2 3 4
O
I
24 V
SDU
e Identify SDU to SDU Tool
g Download Completed
SP - service pin
supplied with LCI/USB
L
ON
W
ORKS
network
24 V
power
supply
