Page 19
QPHY-10GBASE-T Operator’s Manual

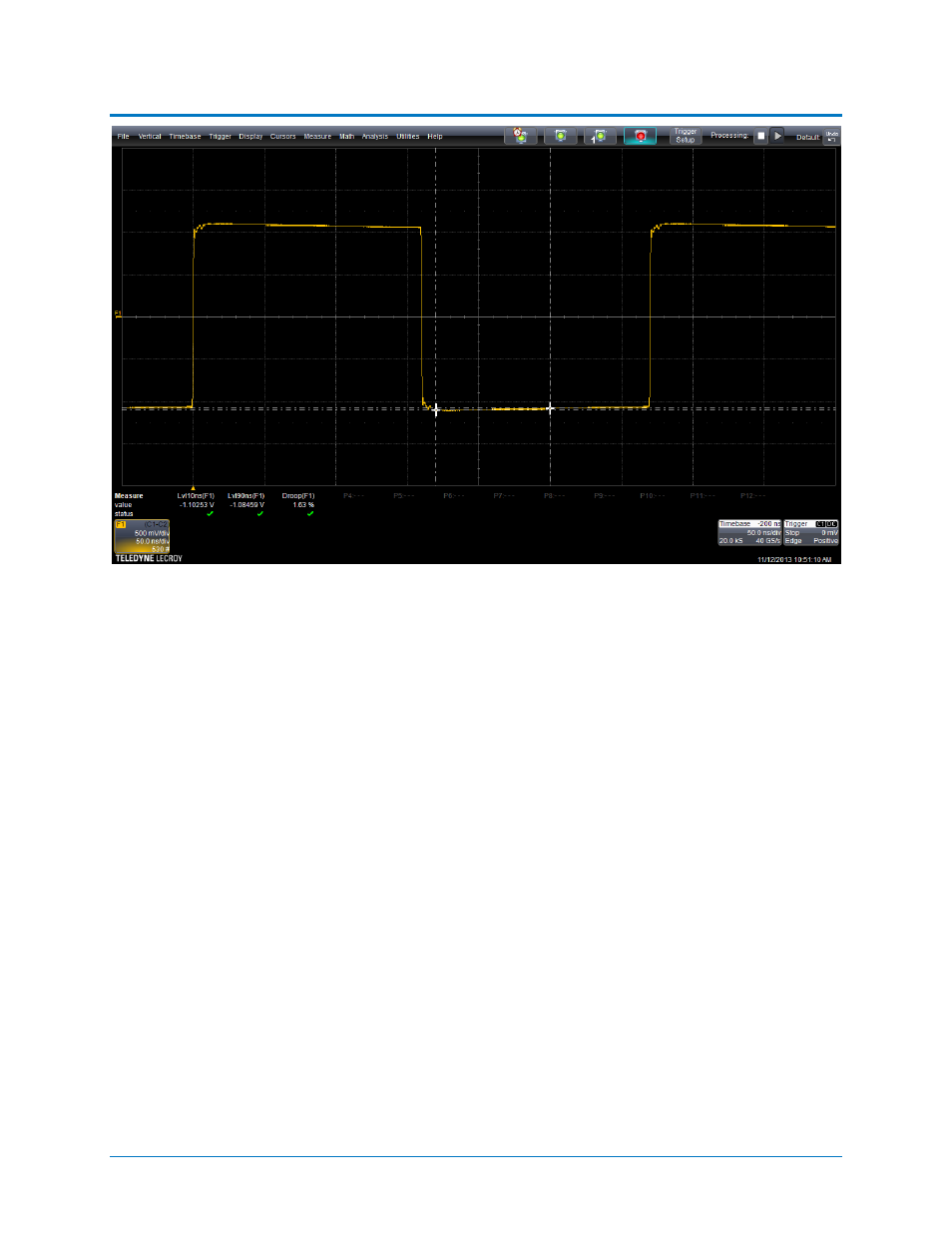

Figure 6 – Maximum Output Droop Test Results
Shown on this screen:
• F1 = C1-C2
• P1 = Lvl10ns, = Level@X where X is T=10ns after the falling edge
• P2 = Lvl90ns, = Level@X where X is T=90ns after the falling edge
• P3 = 100* (P1-P2) / P1, using the processing web
923663 Rev A
15
