Operator's Manual
Quick View
The JITKIT Quick View provides an instant setup that includes the four views of jitter and the key jitter
parameters.
The only required user input in the Quick View setup is the definition of the input signal. Additionally, you
may specify the crossing level.

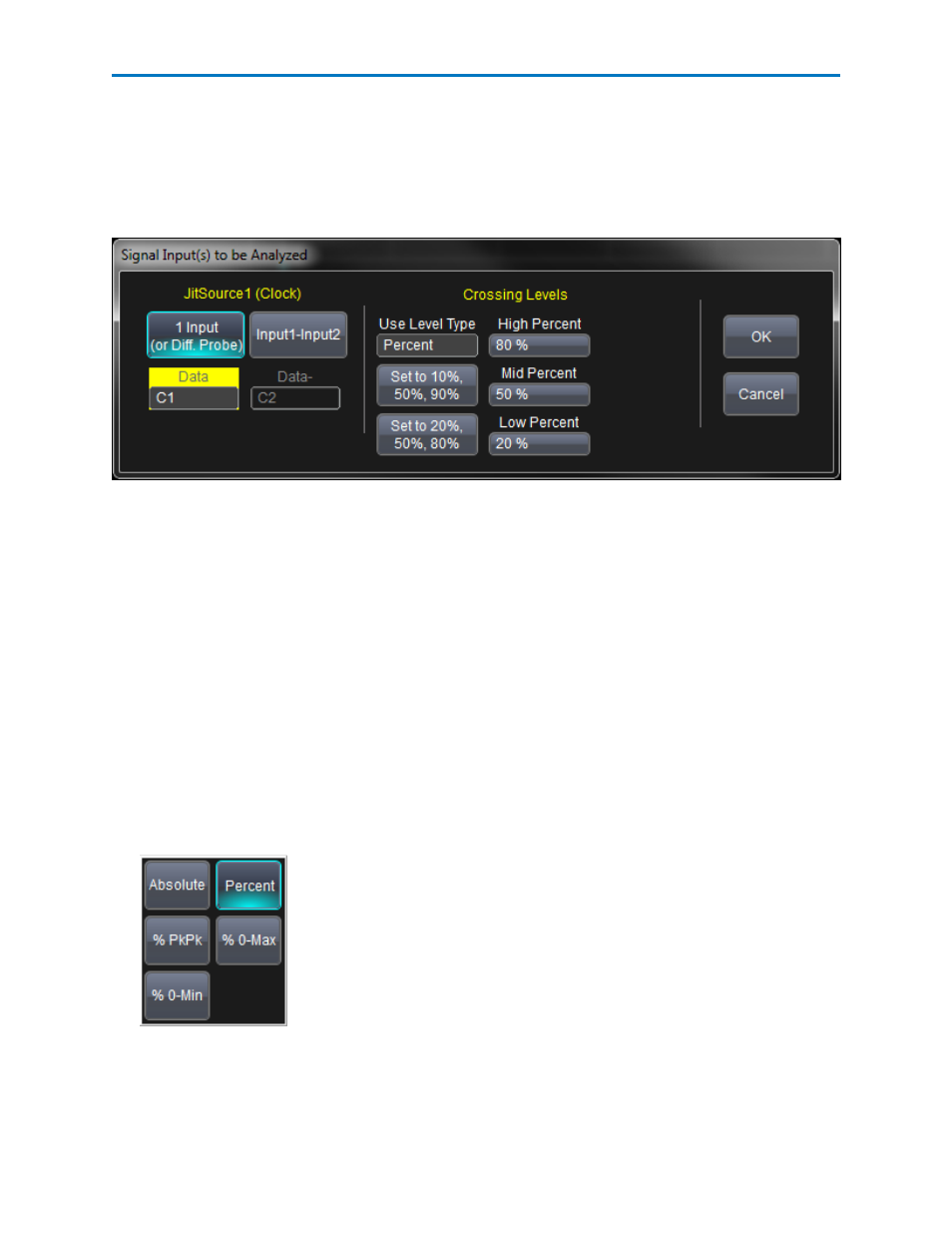

Quick View Signal Input(s) to be Analyzed dialog
Follow these steps to set up Quick View:
1. Touch Analysis → Jitter Kit on the menu bar.
2. On the Jitter Kit dialog, touch the Quick View button. The Signal Input(s) to be Analyzed pop-up
window opens.
3. In the JitSource1 (Clock) section, if you are using a differential probe, touch the 1 Input (or Diff.
Probe) button. Now, touch inside the Data field below the 1 Input (or Diff. Probe) button and select
an input source from the Select Source pop-up window.
OR
If you are using two single-ended probes to calculate the differential signal, touch the Input1-Input2
button. Input2 is subtracted from Input1. Touch inside each Data field and select an input source for
each from the Select Source pop-up window.
4. In the Crossing Levels section, choose the Level Type from the pop-up menu.
For example, if you want to set an absolute crossing level, touch inside the Use Level Type field and
choose Absolute from the pop-up menu. Then, touch inside the Abs Level data entry field and enter
the voltage level at which the signal timing is measured.
OR
