SimPASS PE Software User Manual

Chapter 9: Reports and Tools

LeCroy Corporation

75

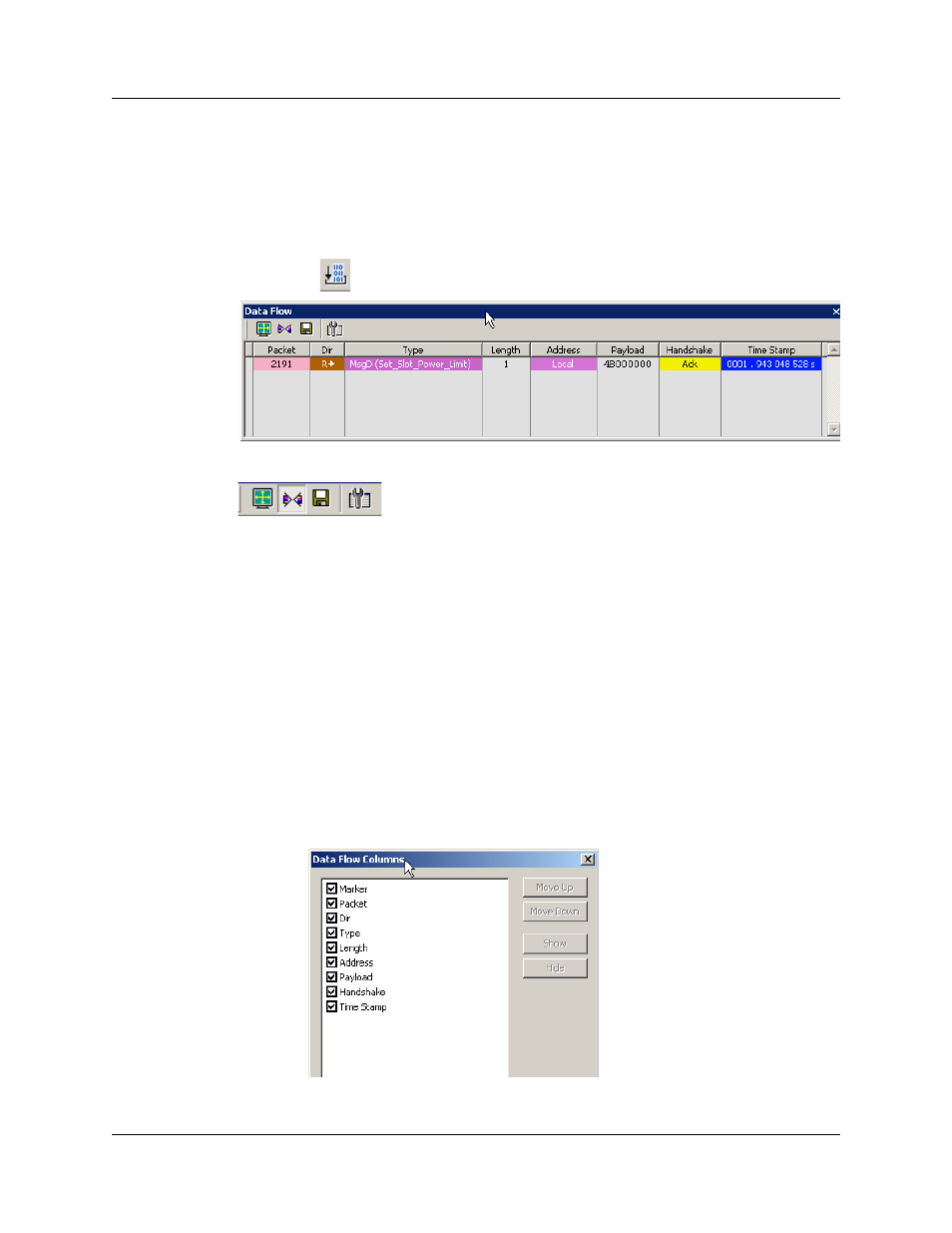

9.6 Data Flow Window

The Data Flow window shows marker, packet, direction, type, length, address, payload,
handshake, and timestamp information.

To obtain the Data Flow window, select Report > Data Flow

or click the

Data Flow toolbar icon.

The toolbar allows you to:

Expand the window to full screen or Collapse to a smaller window.

Synchronize.

Save.

Select Data Flow columns to display and their widths:

Marker

Packet

Direction

Type

Length

Address

Payload

Handshake

Time Stamp
