SimPASS PE Software User Manual

Chapter 4: Software Overview

LeCroy Corporation

15

4.5 Tool Tips

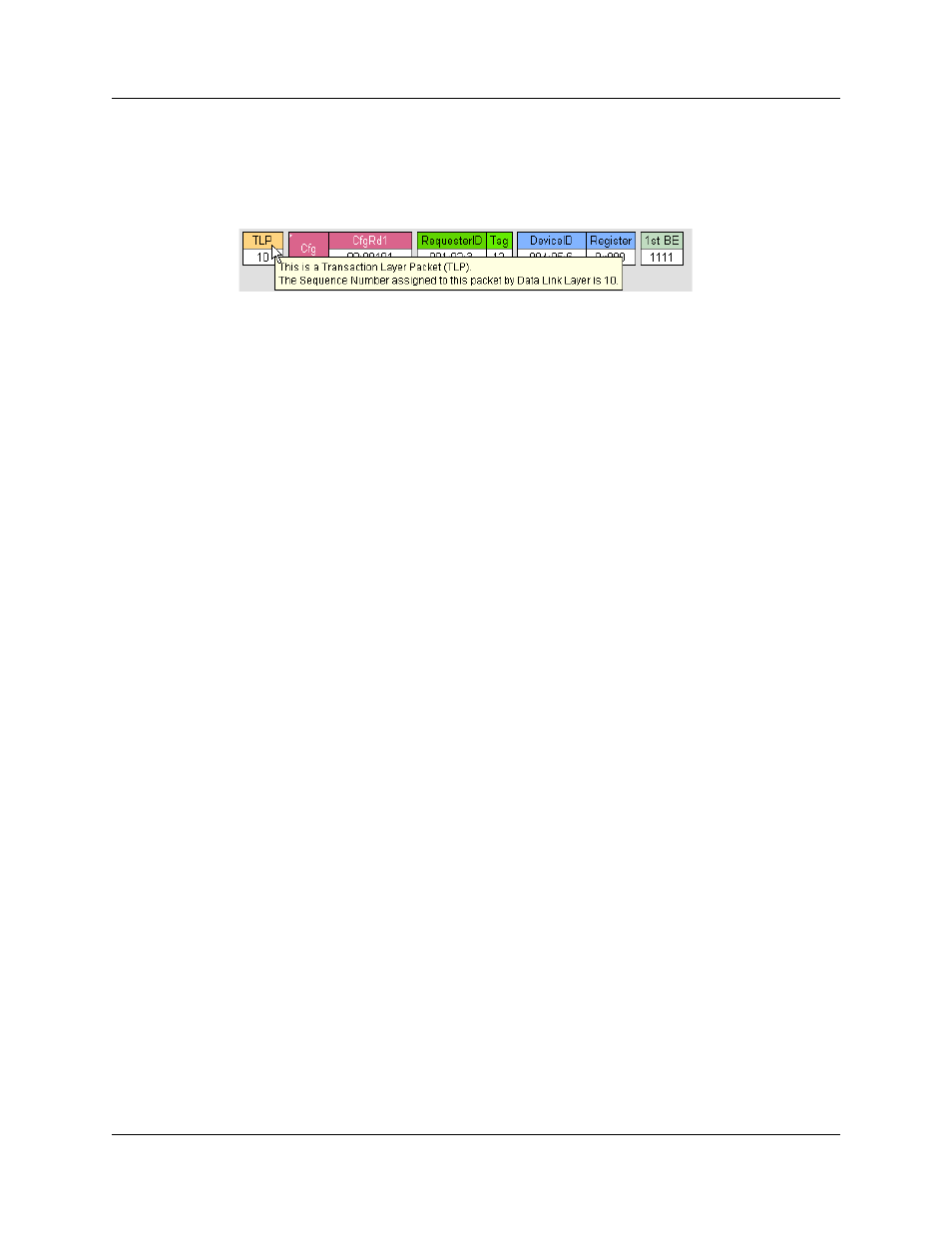

Tool tips provide details about fields within the CATC Trace. To see a tool tip, position your
mouse pointer over a field within the CATC Trace.

You can turn off this capability in the Display Options menu.

4.6 Keyboard Shortcuts

4.7 Search Direction Indicator

A segment in the status bar indicates search direction. The direction can be changed by
selecting Search Direction from the Search menu.

Keystrokes

Operation

Ctrl + O

Open file

Ctrl + P

Print

Ctrl + S

Save file

Ctrl + Home

Jump to first packet

Ctrl + End

Jump to last packet

Ctrl + G

Go to packet ...

Ctrl + F

Search forward

F3

Find next

F6

Next pane

Shift + F6

Previous pane

Ctrl + B

Search backward
